FEATURES AND CONTROLS
Switches

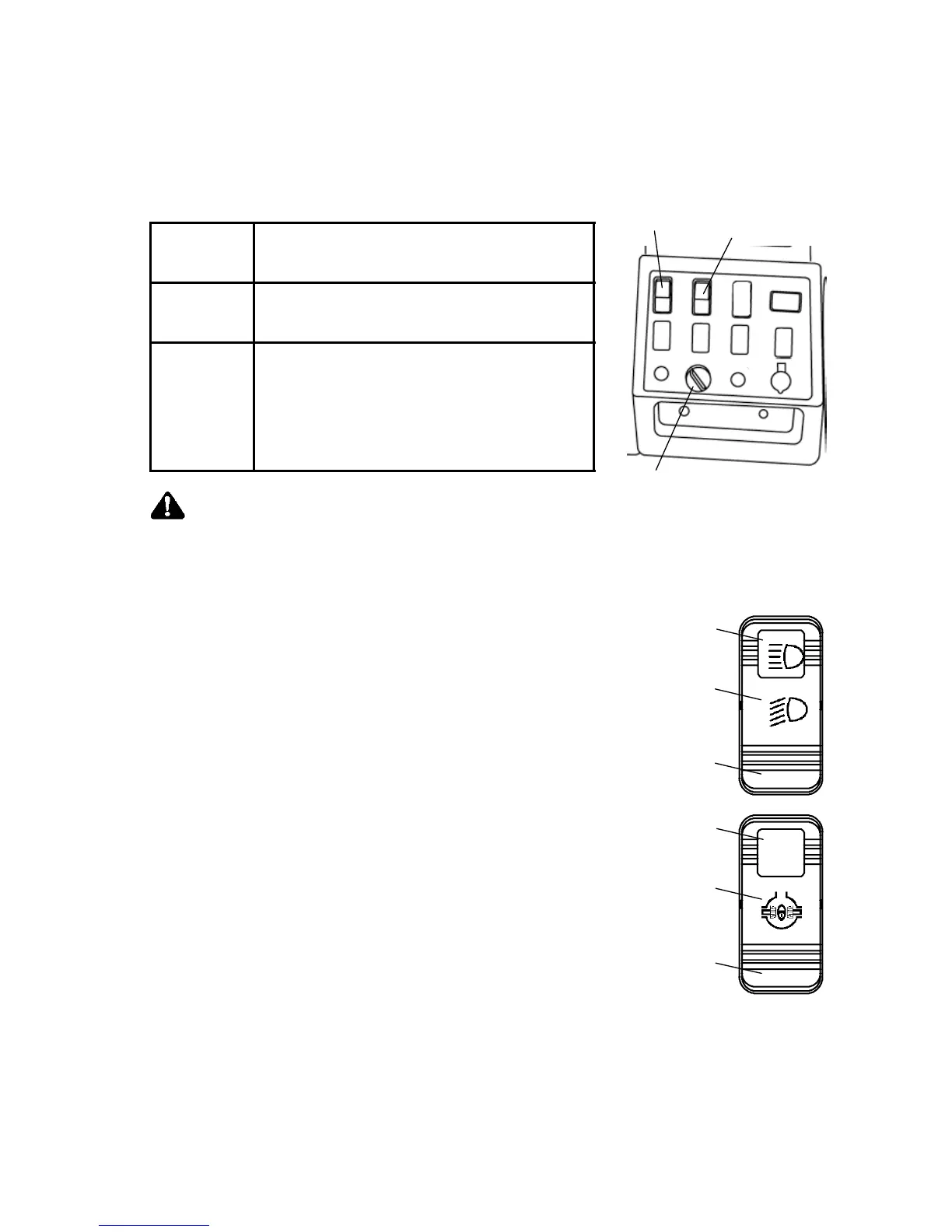

Ignition Switch (1)
The ignition switch is a three-position, key-operated switch. The key
can be removed from the switch when it i s in the OFF position.
OFF Engine off. All electrical circuits
are off except Acc. 12V.
ON/RUN Electrical circuits are on.
Electrical equipment can be used.
START Electric starter is engaged by
holding ignition switch key in this
position. Upon release, the key
will return to the ON/RUN
position.
WARNING
Leaving the keys in the ignition can lead to unauthorized use of
the vehicle resulting in serious injury or death. Always remove
the ignition key when the vehicle is not in use.
Light Switch (2)
The ignition switch key must be in the ON/RUN position
to operate the headlights. The switch has three
positions:
A: High Beam
B: Low Beam
C: Off
AWD/Differential Lock Switch (3)
The AWD/Differential Switch has three positions:
D: AWD
E: Differential Lock (2WD)
F: Off (1WD)
Press the top of the rocker switch to engage AWD.
See page 51 for AWD operating instructions.
Move the rocker switch to the center position to
lock the differential and return to 2WD. See page 50 for Differential
Lock operating instructions.
Press the bottom of the switch to unlock the differential and return to
1WD.
A
B
C
AWD
D
E
F
