92
MAINTENANCE
General Maintenance
Periodically check the condition and tension of the drive belt, and
always carry a spare belt. For improved drive-away during extremely
cold temperatures, remove the belt and warm it to room temperature.
Reinstall it before starting the snowmobile. The following procedures
apply to standard, electronic reverse and TEAM driven clutches.
Drive Belt Removal
1. Be sure the key switch is off and the engine has come to a
complete stop. Apply the brake (or lock the parking brake if
equipped).
2. Open the hood, remove the clutch guard retaining pin and open t he
clutch guard.
3. Standard Clutch: Skip to step 4.
TEAM Clutch: Locat e the L-wrench in the tool kit and install it
into the open threaded hole i n the outer sheave of t he clutch.
Rotate the wrench until the sheaves open far enough to remove the
belt.

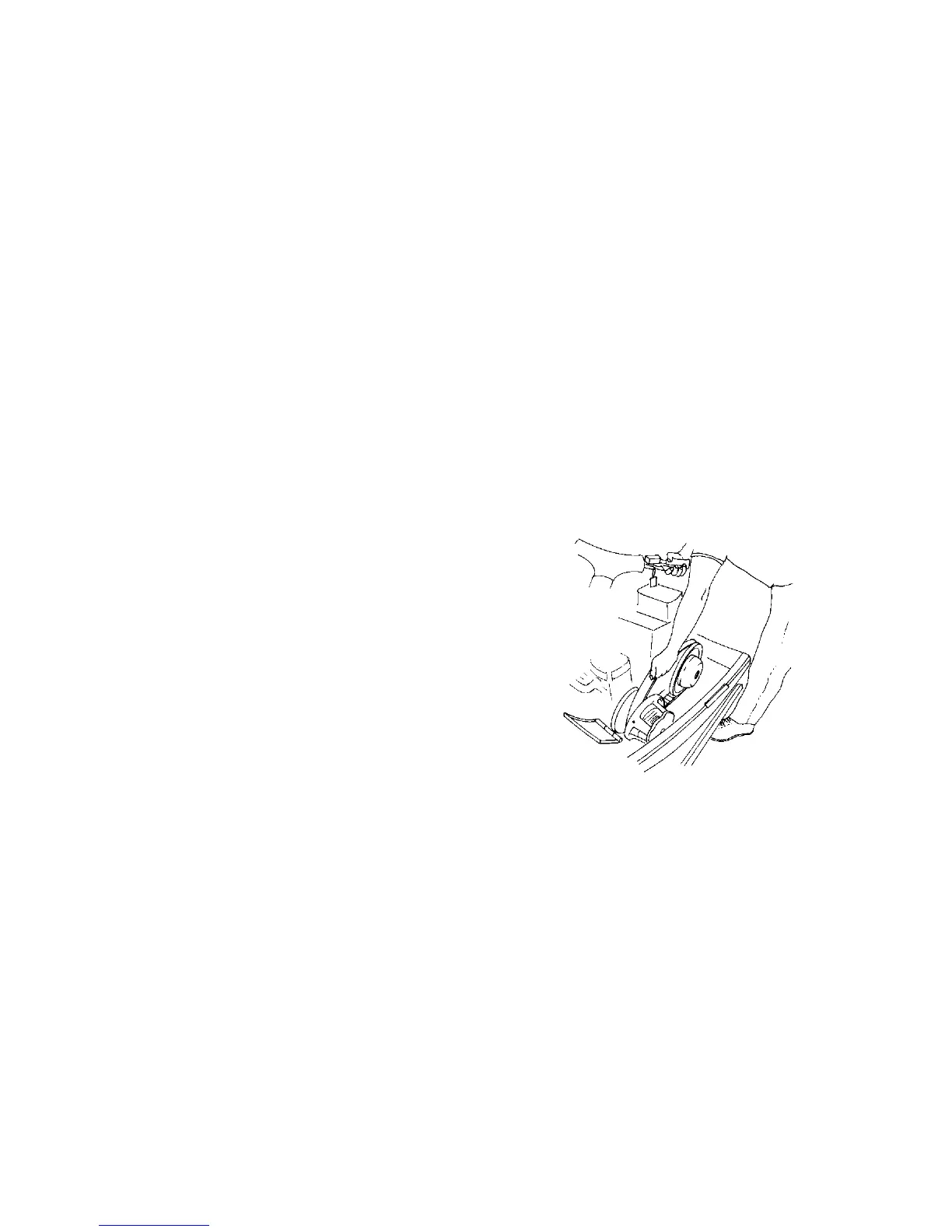

4. Firmly grasp the belt midway
between the clutches and pull
upward and rearward to remove.
See illustration.
