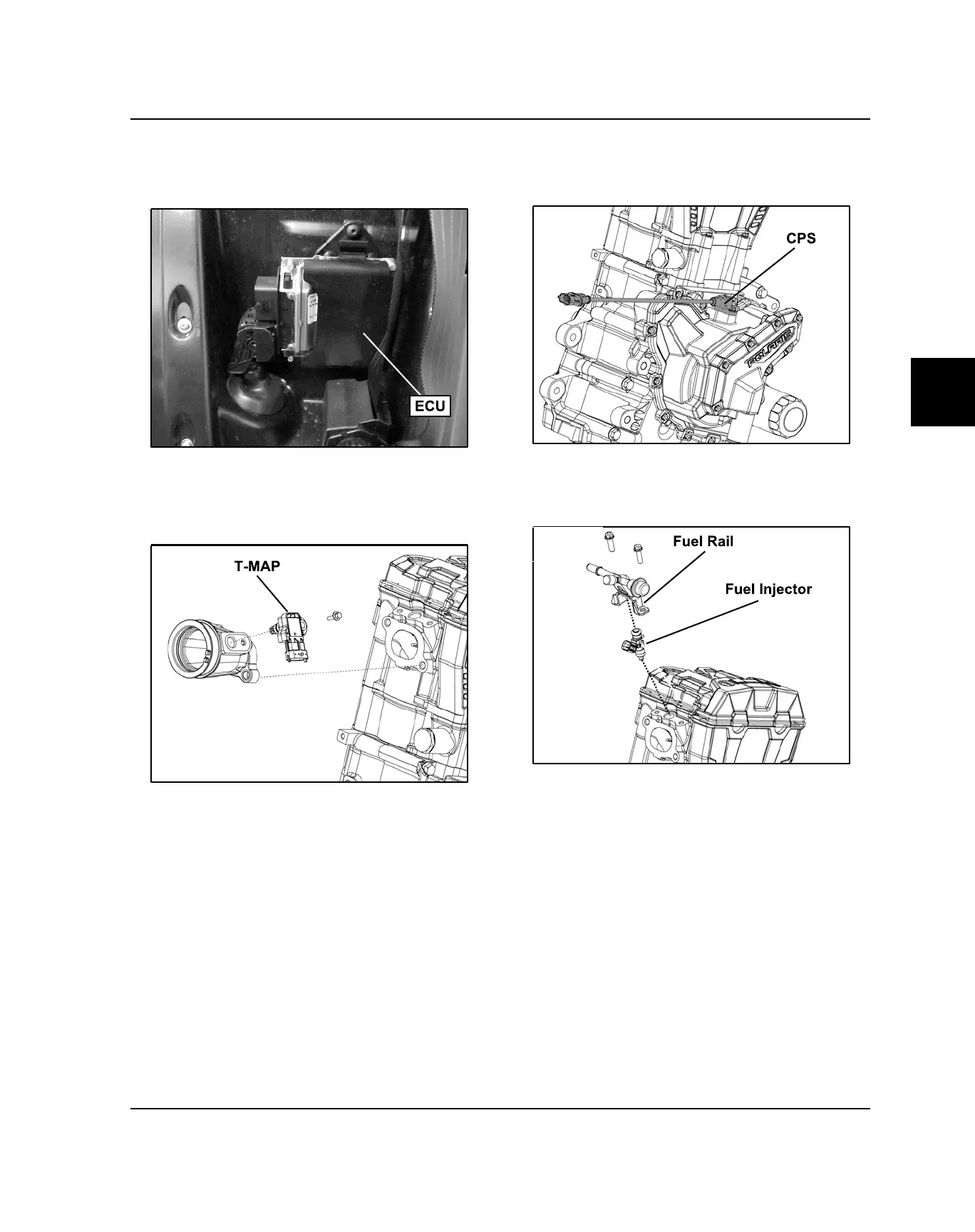

EFI SYSTEM COMPONENT LOCATIONS
1. Electronic Control Unit (ECU)
- Located behind the driver’s seat.
2. Temperature and Manifold Absolute Pressure
Sensor (T-MAP)
- Located in the rubber intake boot between the throt-
tle body and the cylinder head.
3. Crankshaft Position Sensor (CPS)
- Located in the magneto cover on the right-hand
side of the Engine.
4. Fuel Injectors / Fuel Rail / Regulator
- Attached to the fuel rail located in the intake track of
the cylinder head.
