9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
11.15

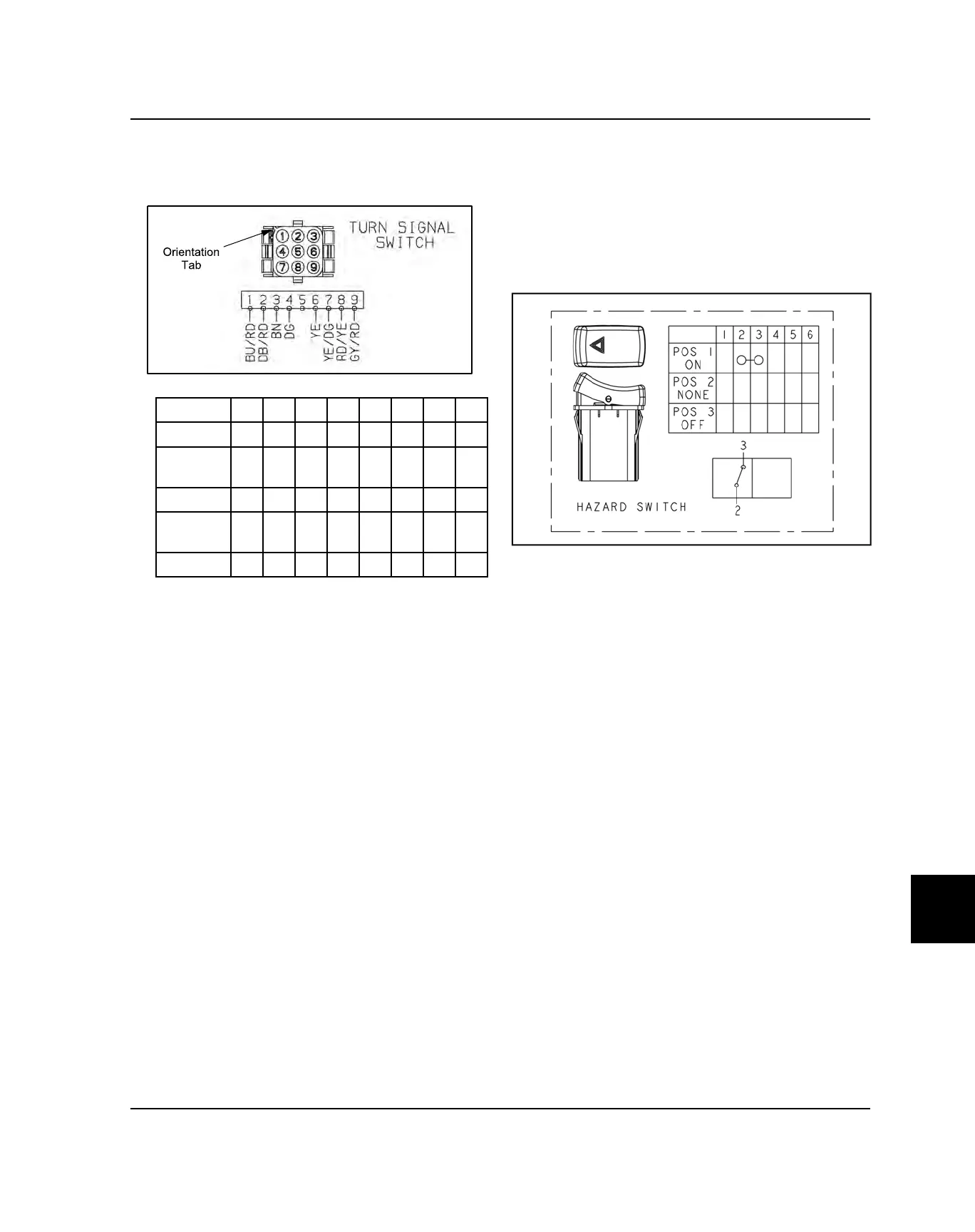

2. Test between the 5 sets of outputs (HI BEAM / LO
BEAM / L-TURN / R-TURN / HORN). If any of the
tests fail, replace the switch assembly.
1 2 3 4 6 7 8 9
HI BEAM O O
LO
BEAM
O O
L - TURN O O
R -
TURN
O O
HORN O O
HAZARD SWITCH (INTL)
1. Disconnect wires or harness from the Hazard switch.
2. Test between the outputs (ON / NONE / OFF). If any
of the tests fail, replace the switch assembly.
• Move switch to ON. There should be continuity be-
tween switch pins 2 and 3.
• Move switch to NONE / OFF. There should be no con-
tinuity between switch pins.
ELECTRICAL
