5.36
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.

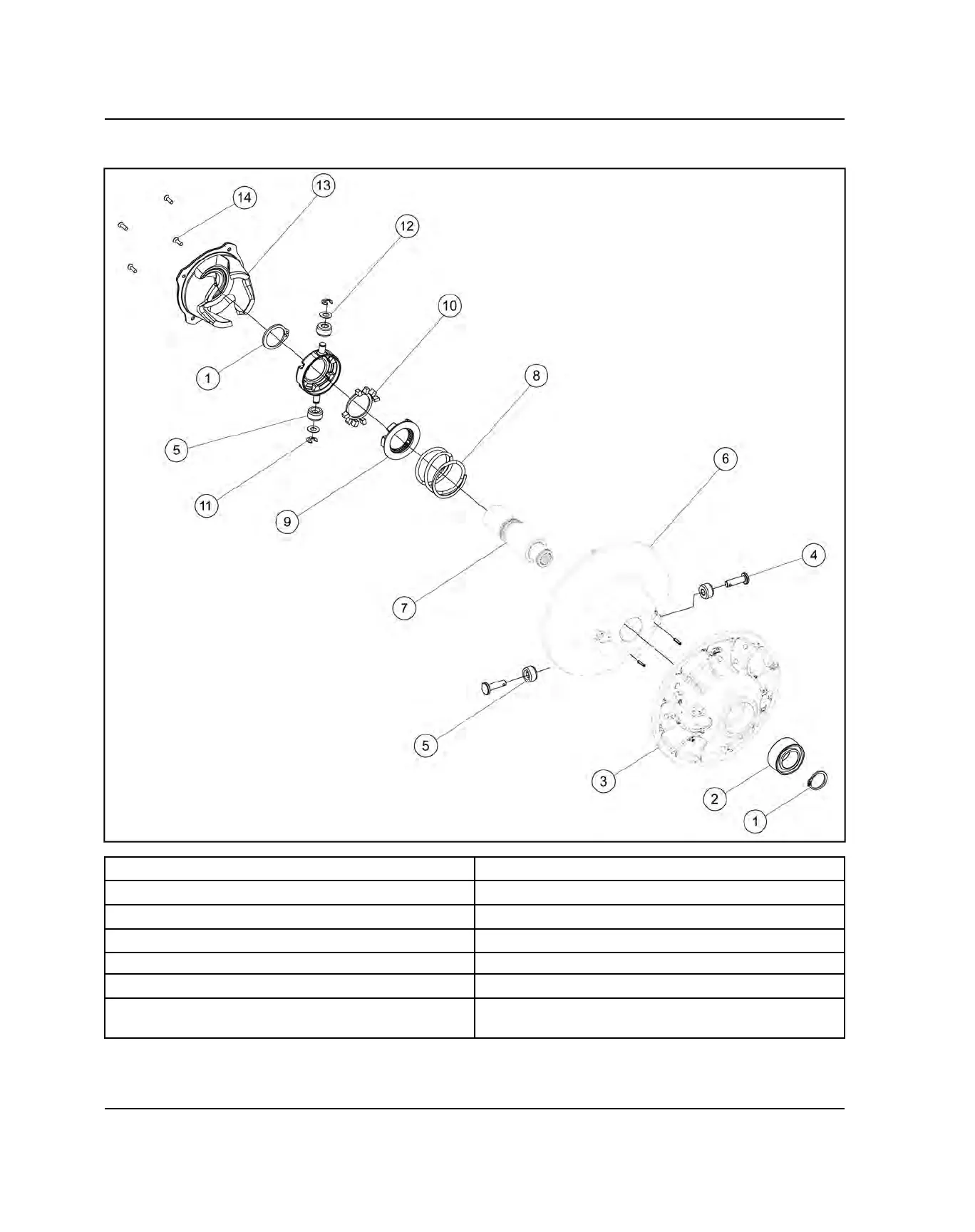

DRIVEN CLUTCH ASSEMBLY VIEW
q
Snap Ring
i
Spring
w
Bearing
o
Spider Insert
e
Stationary Sheave
a
Spider Dampener
r
Pin
s
E-Clip
t
Roller
d
Washer
y
Moveable Sheave
f
Helix (Cam)
u
Clutch Shaft
g
Helix Screws
48 in-lb (5 Nm)
PVT SYSTEM
