9
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
9.27

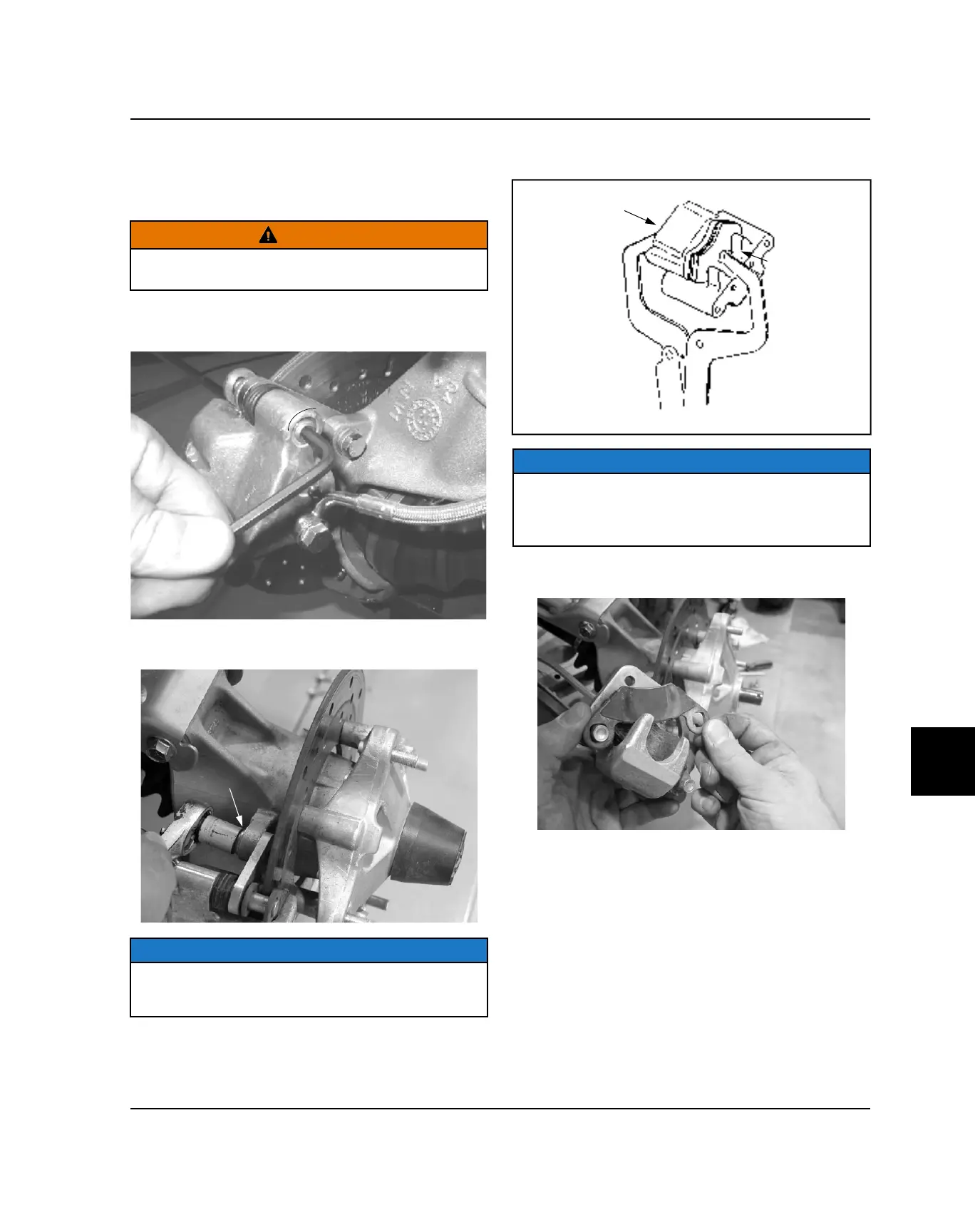

REAR BRAKE PADS
PAD REMOVAL
1. Elevate and support rear of vehicle.
CAUTION
Use care when supporting vehicle so that it does not tip
or fall. Severe injury may occur if machine tips or falls.
2. Remove the rear wheel.
3. Loosen pad adjuster screw 2-3 turns.
4. Remove and discard the two caliper mounting bolts
and lift caliper off the brake disc.
NOTE
When removing caliper, be careful not to damage brake
line. Support caliper so as not to kink or bend brake
line.
5. Push caliper piston into the caliper bore slowly using
a C-clamp or locking pliers with pads installed.
NOTE
Brake fluid will be forced through compensating port
into master cylinder fluid reservoir when piston is
pushed back into caliper. Remove excess fluid from
reservoir as required.
6. Push caliper mounting bracket inward and slip outer
brake pad past the edge to remove.
BRAKE SYSTEM
