DRIVE CLUTCH SERVICE

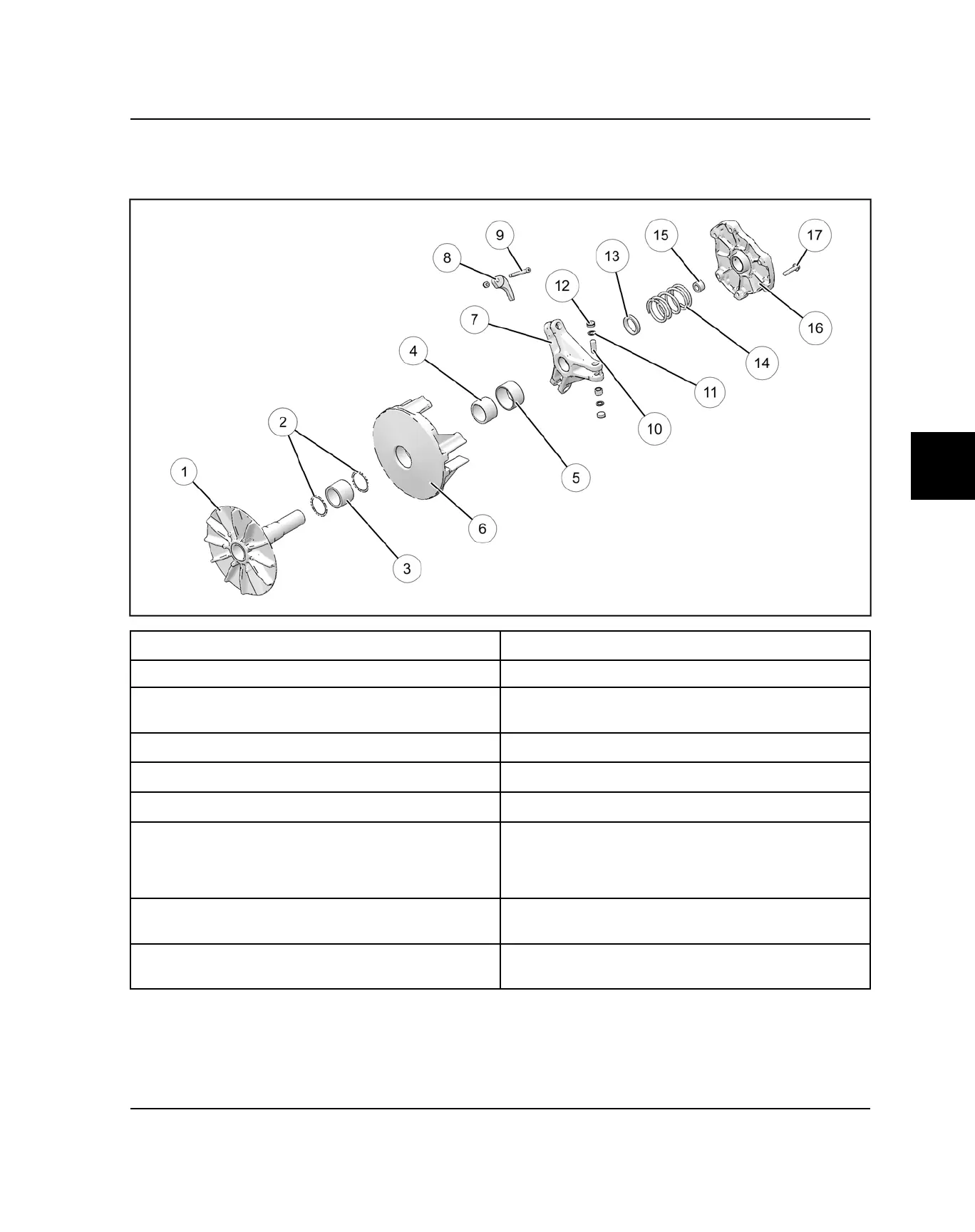

DRIVE CLUTCH EXPLODED VIEW (ALL MODELS)
q
Stationary Sheave
a
Pin
w
Washers
s
Washer
e
Needle Bearing (non-EBS models)
One Way Clutch (EBS models)
d
Button
r
Spacer
f
Limiter Spacer
t
Bushing
g
Clutch Spring
y
Moveable Sheave
h
Cover Bushing
u
Spider
225 ft-lb (305 Nm)
(Apply 0.4 mL Loctite® 7088 Primer and 0.4 mL
Loctite® 620™)
j
Cover
i
Shift Weight
k
Cover Bolt
100 in-lb (12 Nm)
o
Shift Weight Bolt
20 in-lb (2 Nm)
