4.20
9926813 R04 - 2013-2016 RZR 570 Service Manual
© Copyright Polaris Industries Inc.
5. Turn on the key switch to activate the pump and
check the system pressure on the gauge. If system
pressure of 58 ± 2 psi (400 ± 14 kPa) is observed,
the ignition switch, ECU, fuel pump, and pressure
regulator are working properly. Turn the key switch
off and depress the valve button on the tester to
relieve the system pressure.
Normal Fuel Pressure:
58 ± 2 psi (400 ± 14 kPa)
NOTE
If the fuel pressure is out of specification, replace the
fuel pump assembly.

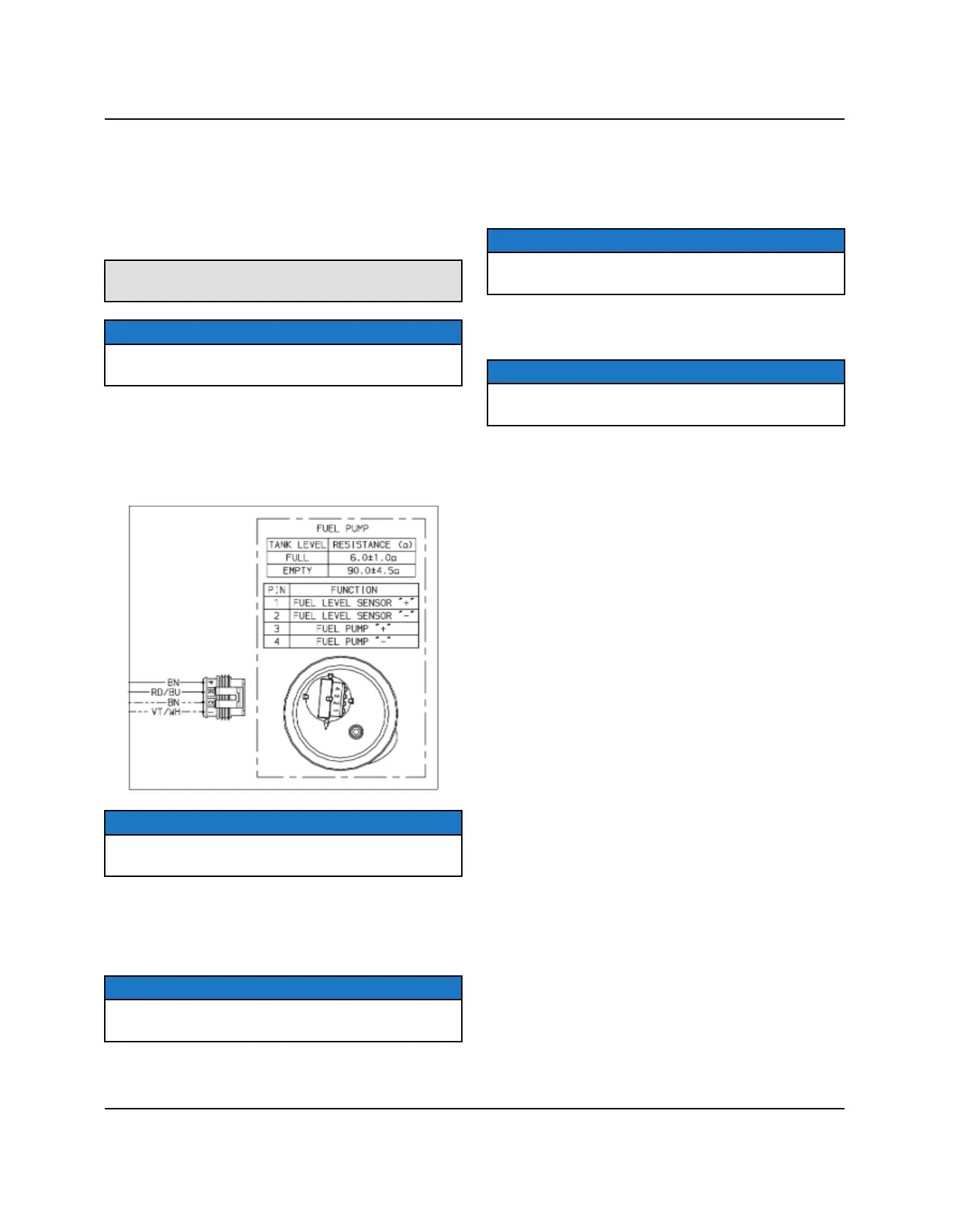

6. If the pump did not activate (Step 5), disconnect the
harness connector from the fuel pump. Connect a
DC voltmeter across terminals “3” and “4” in the plug
on the vehicle fuel pump harness. Turn on the key
switch and observe voltage to ensure a minimum of
7 volts is present.
NOTE
If the voltage was below 7 VDC, test the battery, ignition
switch, relay(s), wiring harness and ECU.
7. If the reading is between 7 and 14 volts, turn key
switch off and connect an ohmmeter between
terminals “3” and “4”' at the white fuel pump
connector to check for continuity within the fuel
pump.
NOTE
If there was no continuity between the pump terminals,
replace the fuel pump assembly.
8. If voltage at the plug was within the specified range,
and there was continuity across the pump terminals,
reconnect the plug to the fuel pump, making sure you
have a clean connection. Turn on the key switch and
listen for the pump to activate.
NOTE
If the pump starts, repeat steps 3, 4 and 5 to verify
correct pressure.
9. If the pump still does not operate, check for correct
ECU operation by plugging in a known-good ECU of
the same model.
NOTE
If the pump still does not operate, replace the fuel pump
assembly.
FUEL SYSTEM
