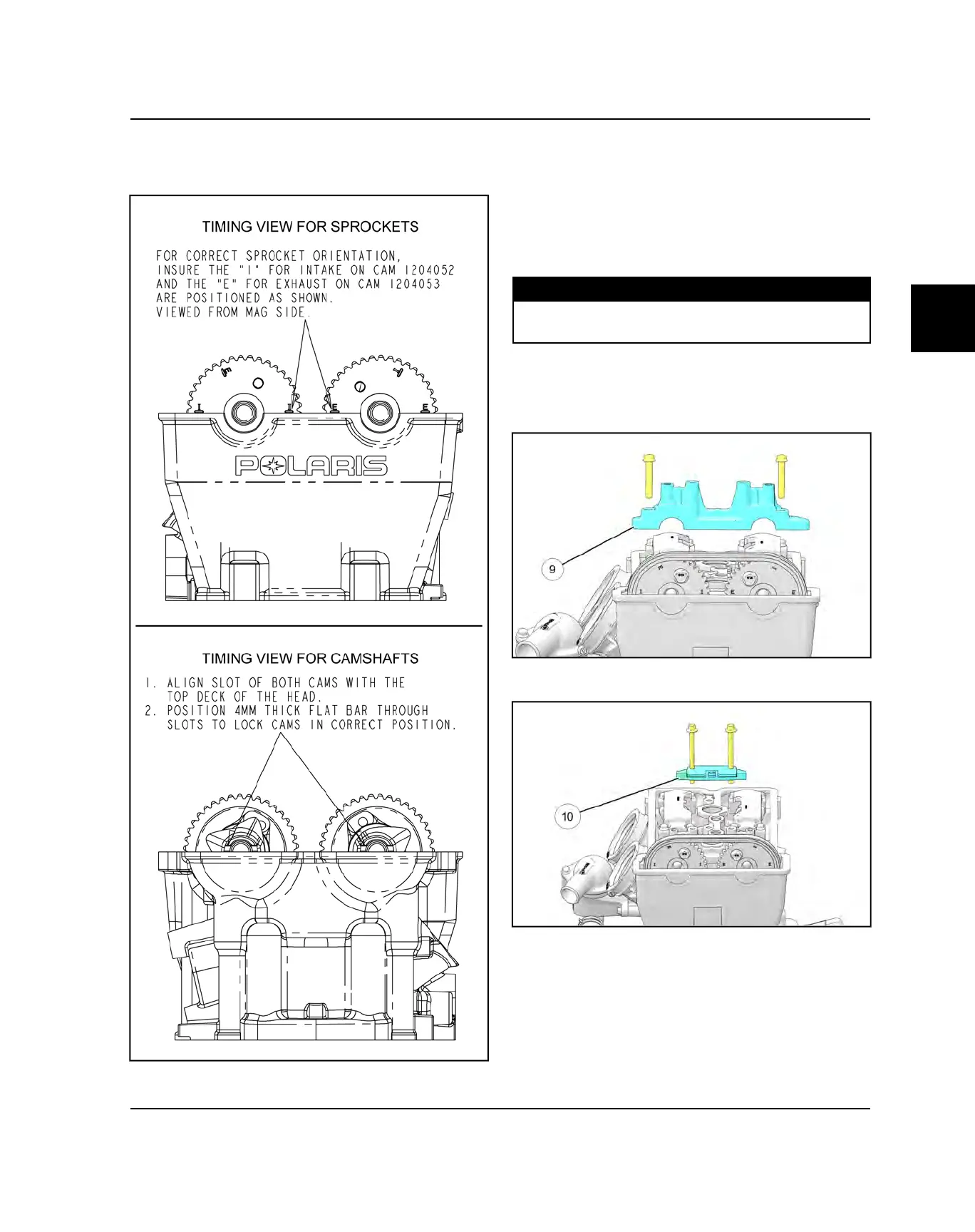

13. Verify cam timing is correct. Flywheel TDC mark
should still be aligned (see Step 1) and cam sprocket
markings should line up as shown.
14. If timing marks are not aligned, remove sprockets
and correct alignment.
15. Remove the Cylinder Holding & Camshaft Timing
Plate (PU-50563) from the end of the camshafts.
16. Rotate the engine using the flywheel and install the
remaining bolt in each camshaft sprocket. Torque the
sprocket bolts to specification.
TORQUE
Camshaft Sprocket Bolts:
14 ft-lb (19 Nm)
17. Rotate the engine using the flywheel and torque the
remaining sprocket bolts to specification.
18. Install the front camshaft carrier
o
and two outer
retaining bolts.
19. Install the fixed cam chain guide
a
and two retaining
bolts.
