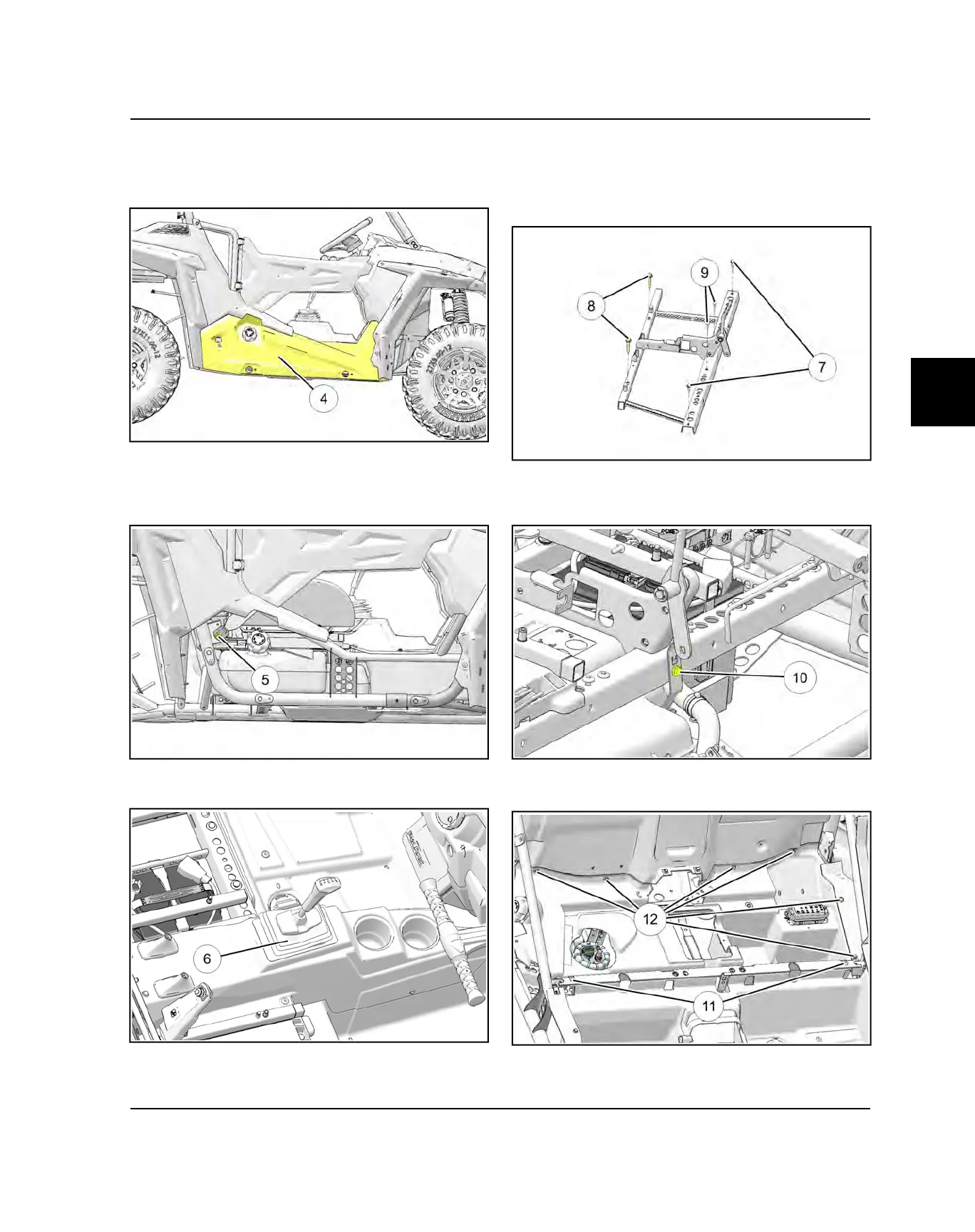

5. Remove the push rivets and Torx screws retaining the
right rocker panel
r
using the multi-function pliers
and a T40 Torx bit. Remove the rocker panel from the
vehicle.
6. Remove the fastener
t
retaining the seat belt
mechanism to the frame near the right rear portion of
the fuel tank. Once removed, place the mechanism in
the rear cargo box to keep out of the way.
7. Push the shifter boot
y
so it is no longer attached to
the console. Remove the console from the vehicle.
8. Remove the two bolts
u
retaining the front and two
rear bolts
i
retaining the rear of the seat base frame.
Remove the two T40 Torx screws
o
retaining the
front of the seat base frame. Remove the rear seat
base assembly from the vehicle.
9. Remove the T40 Torx screw
a
retaining the fuel tank
strap to the seat base frame. Remove the strap from
the other side of the seat base frame.
10.Remove the Torx screws
s
and plastic rivets
d
retaining the block-off panel using a T40 Torx bit.
