14.Install the cam (helix) assembly over the shaft. Line
up the “X” on the cam, “X” on spider, and “X” on the
stationary sheave or use the marks previously made
before disassembly.
NOTE
If the cam assembly (helix) is difficult to install, be sure
the sheaves are aligned. To align the sheaves place the
clutch assembly on a flat surface with the cam
assembly (helix) side down. Press down on the
moveable sheave belt face with both hands and the
helix will release.

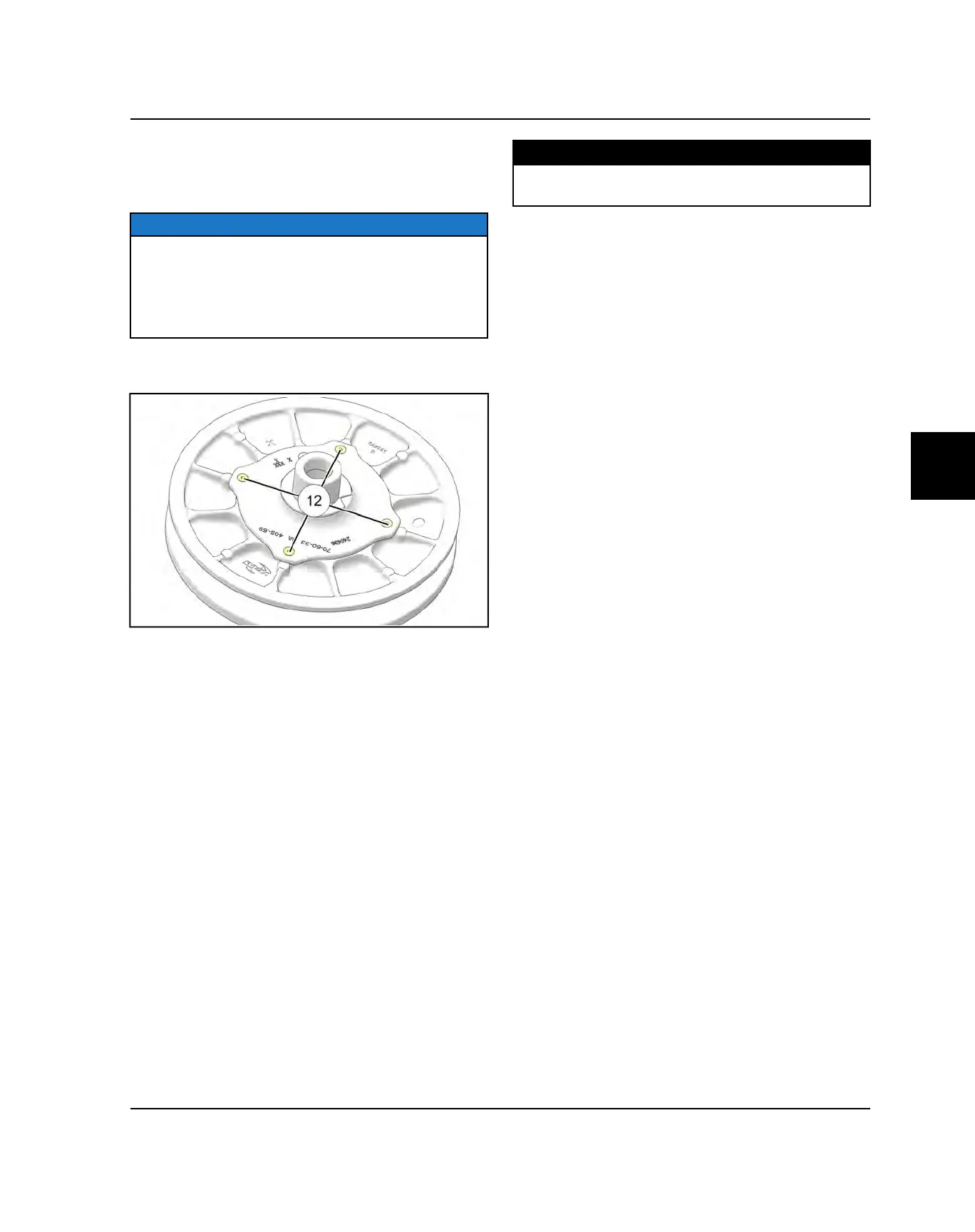

15.Use a T25 Torx driver to install the four helix retaining
screws
d
and torque to specification.
TORQUE
Helix Retaining Screws:
48 in-lb (5 Nm)
PVT SYSTEM
