6.32
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.

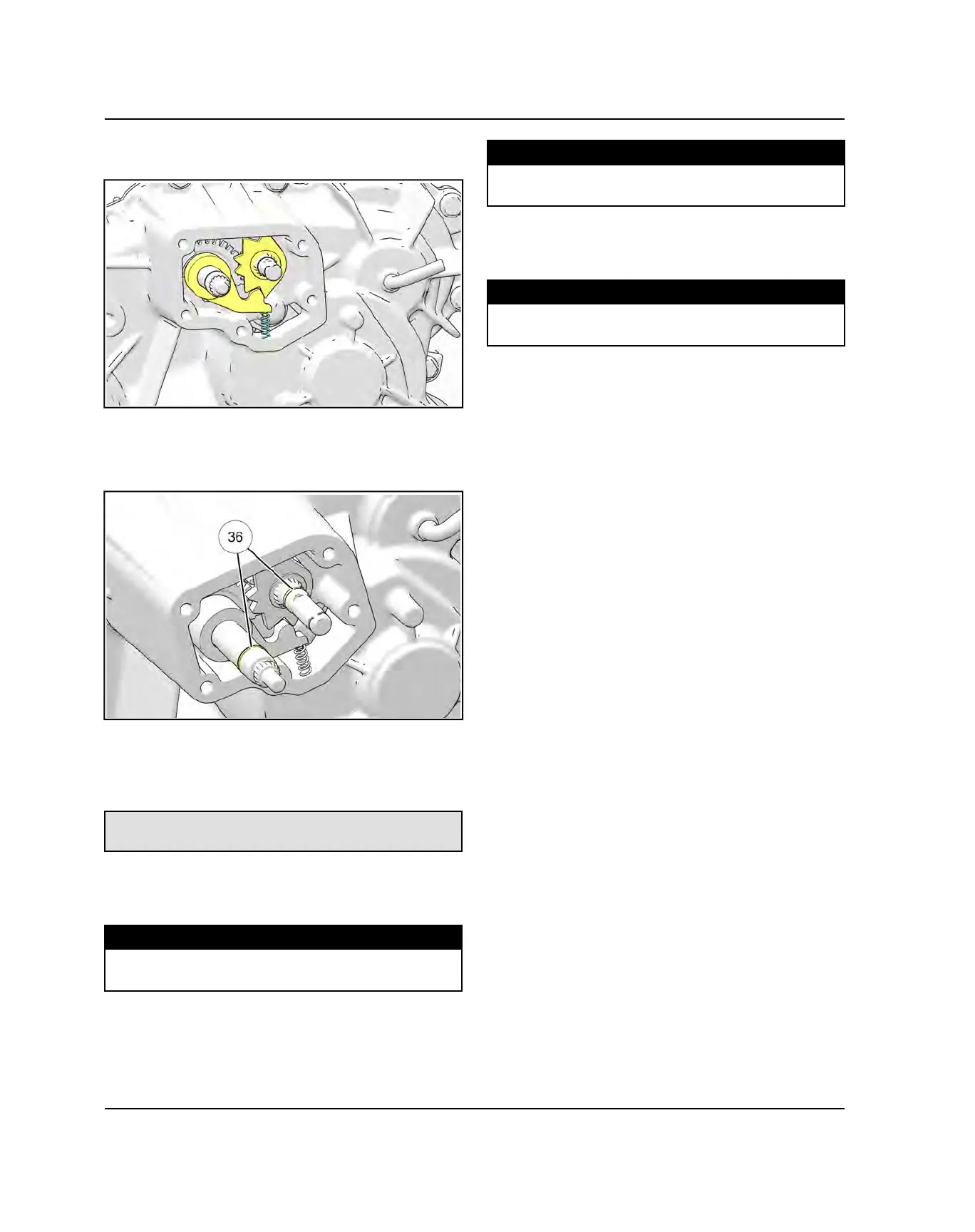

29.Install the detent pawl onto the shift shaft and
carefully install the compression spring.
30.Install a new O-ring on each shift shaft
3^
. Apply a
small amount of white lithium grease on the O-rings,
shift shafts and component contact surfaces prior to
installing the sector cover.
31.Clean the transmission and gear sector cover mating
surfaces thoroughly.
32.Apply Crankcase Sealant (3-Bond) onto the cover
and transmission case mating surface.
Crankcase 3 Bond Sealant
PN 2871557
33.Install the sector cover and align the transmission
case dowel with the alignment hole. Install and torque
the bolts to specification.
TORQUE
Sector Gear Cover Bolts:
12 ft-lb (16 Nm)
34.Install the transmission drain plug and torque to
specification.
TORQUE
Fill / Drain Plug:
14 ft-lbs (19 Nm)
35.Install the bellcrank onto the shift shaft. Note the key
splined on the bellcrank and shift shaft. Install the nut
and torque to specification.
TORQUE
Bell Crank Nut:
18 ft-lb (24 Nm)
36.Refer to Transmission Installation, page 6.10 to
complete the repair.
TRANSMISSION
