9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service

Manual

3.39

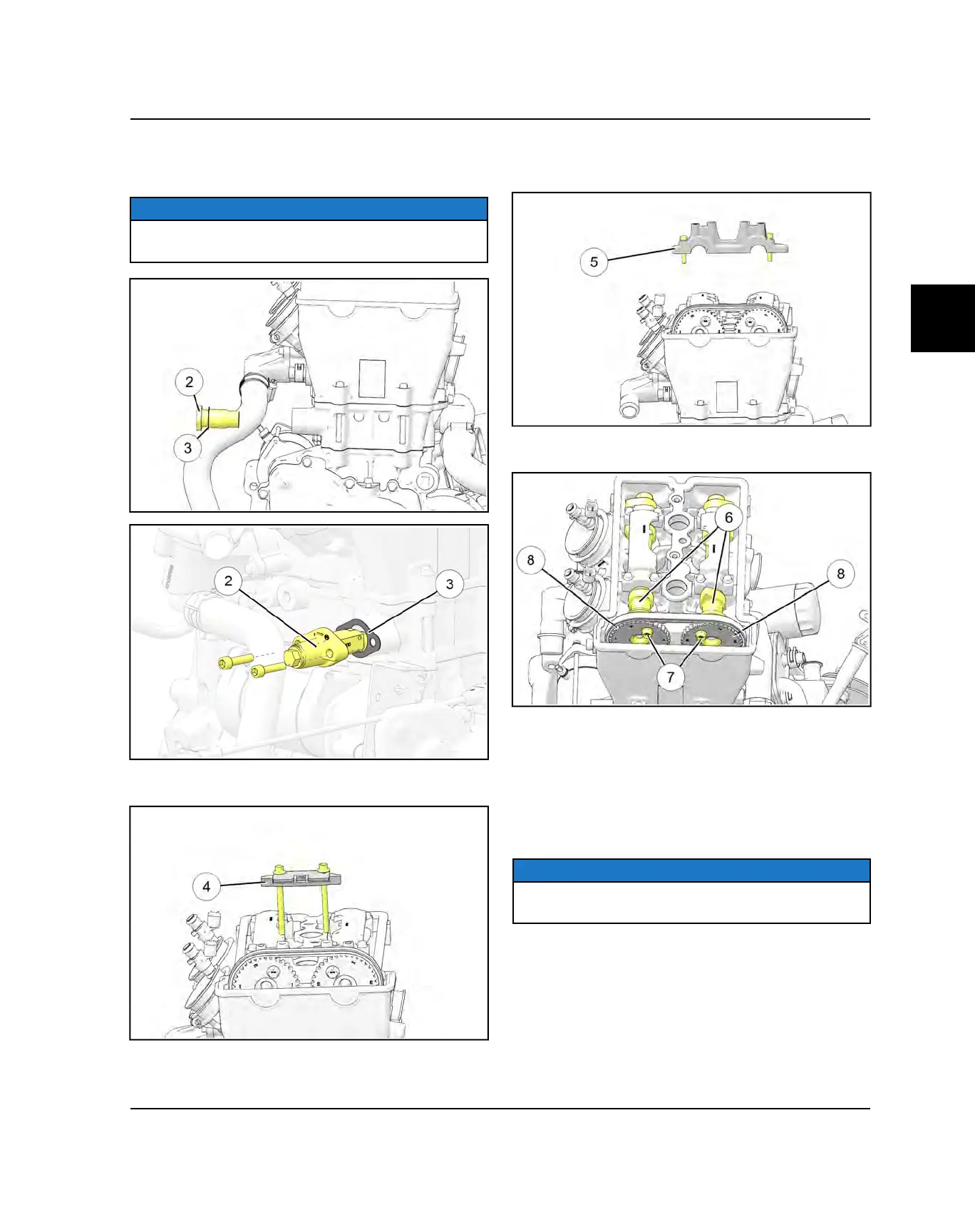

2. Remove the cam chain tensioner

from the

cylinder. Replace the sealing washer or gasket

upon reassembly.

NOTE

The engine may have a hydraulic (first image) or

mechanical (second image) cam chain tensioner.

3. Remove the two bolts retaining the fixed cam chain

guide

and remove the assembly from the engine.

4. Remove the remaining two bolts that retain the front

camshaft carrier

and carefully lift the carrier off the

camshafts.

5. Hold camshafts with an open-end wrench

, and

remove the top bolt from the camshaft sprockets

6. Rotate the engine to allow access to the remaining

bolt on each camshaft sprocket

7. Remove the remaining bolt from each camshaft

sprocket.

8. Lift the chain and sprockets off the camshafts to

allow each sprocket to be removed.

9. Using a paperclip or other tool, hold cam chain up.

NOTE

The crankcase has a built-in lower guide to prevent the

chain from falling off the crankshaft.

ENGINE / COOLING SYSTEM
