9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
3.51

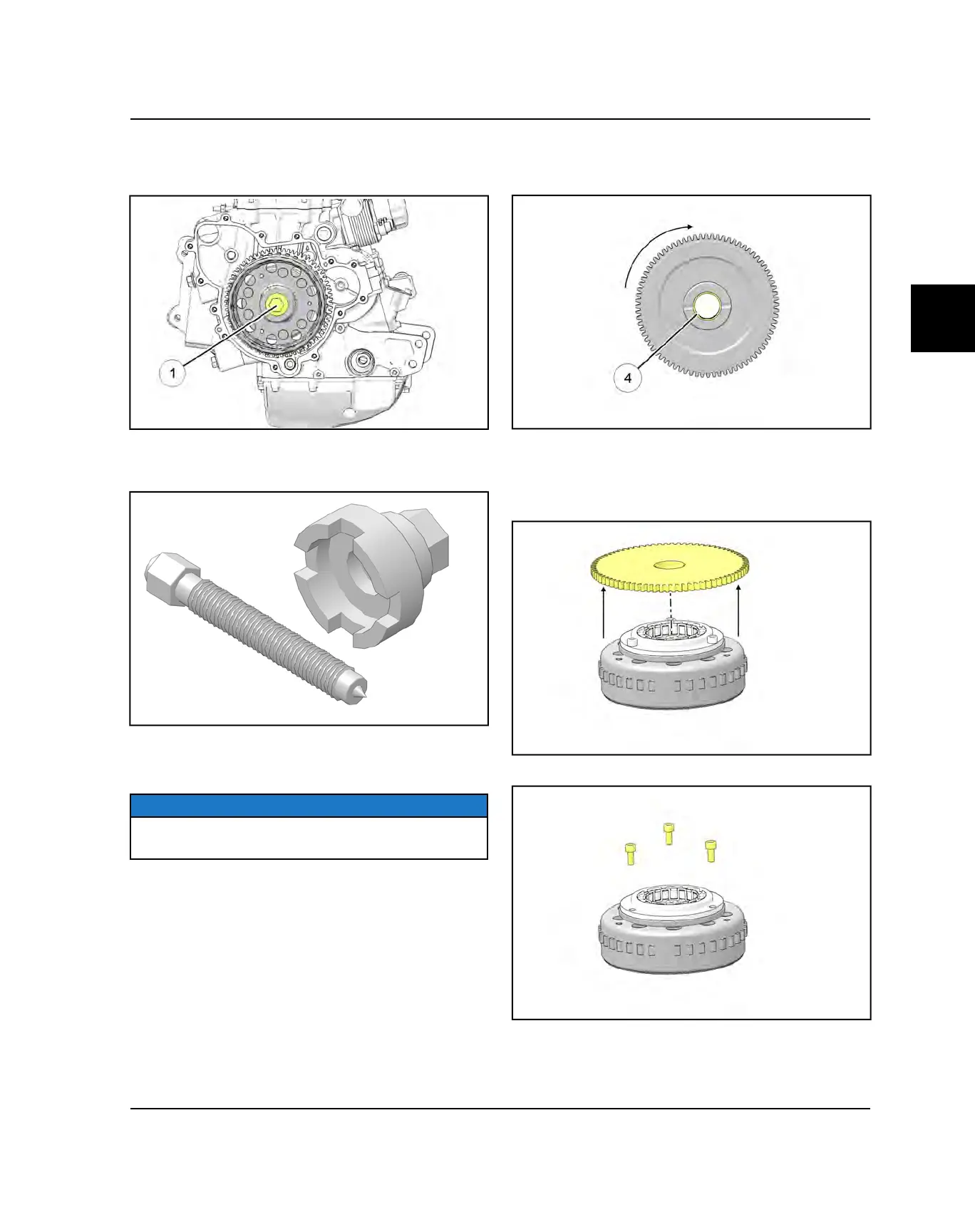

4. Using a commercially available strap wrench, hold
the flywheel and remove the flywheel retaining bolt
q
.
5. Fully install Flywheel Puller (PA-49316) on the
threads of the flywheel (left hand thread - turn
flywheel puller counterclockwise to install).
6. Hold puller body and tighten the center bolt
w
to
remove the flywheel.
Starter One-Way Clutch Inspection
NOTE
The starter one-way clutch can be serviced with the
engine installed in the chassis.
7. Remove the stator cover and flywheel (see Chapter
3 – Flywheel Removal, page 3.50.
8. Place flywheel on a work bench with the one-way
clutch facing up. Grasp clutch gear and rotate
clockwise. It should turn smoothly without binding.
9. Rotate one-way gear counterclockwise. The gear
should immediately lock in position and not slip.
10. Inspect the one-way gear bushing
r
for wear or
galling. If service is required, refer to “Starter One-
Way Clutch Disassembly”.
STARTER ONE-WAY CLUTCH DISASSEMBLY
1. Lift up to remove starter one-way gear.
2. Remove the three one-way clutch retaining screws.
ENGINE / COOLING SYSTEM
