7. Align the front prop shaft paint mark with the front
gearcase input shaft mark so the holes align. Install a
new roll pin.
8. Install wheel and wheel nuts. Torque wheel nuts to
specification.
TORQUE
Wheel Lug Nuts:
Aluminum: 120 ft-lbs (163 Nm)
Steel: 60 ft-lb (81 Nm)
9. Install the center console.

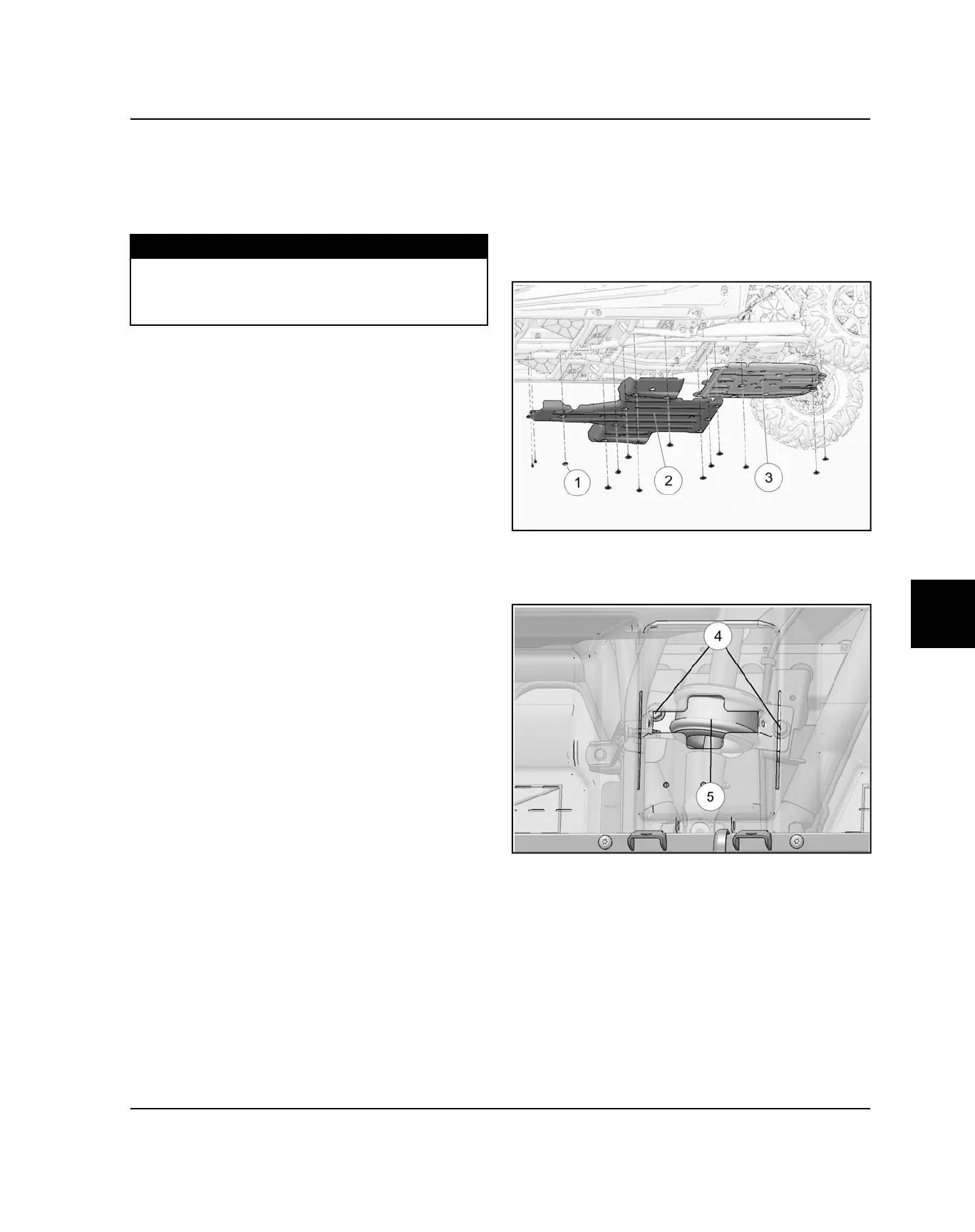

REAR PROP SHAFT REMOVAL (4 SEATER)
1. Remove all seats.
2. Remove the front and rear center consoles (Refer to
Rocker Panels / Rear Console / Floor - 4 900, page
10.21).
3. Remove the fasteners
q
from center
w
and rear skid
plates
e
.
4. Remove center and rear skid plates.
5. Remove the fasteners
r
securing the support
bearing cover
t
to the frame.
6. Move the prop shaft support bearing assembly to the
drivers side to slide the rear prop shaft yoke
y
off the
transmission output shaft.
