Polaris RZR 900 2016 Service Manual

7
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
7.31

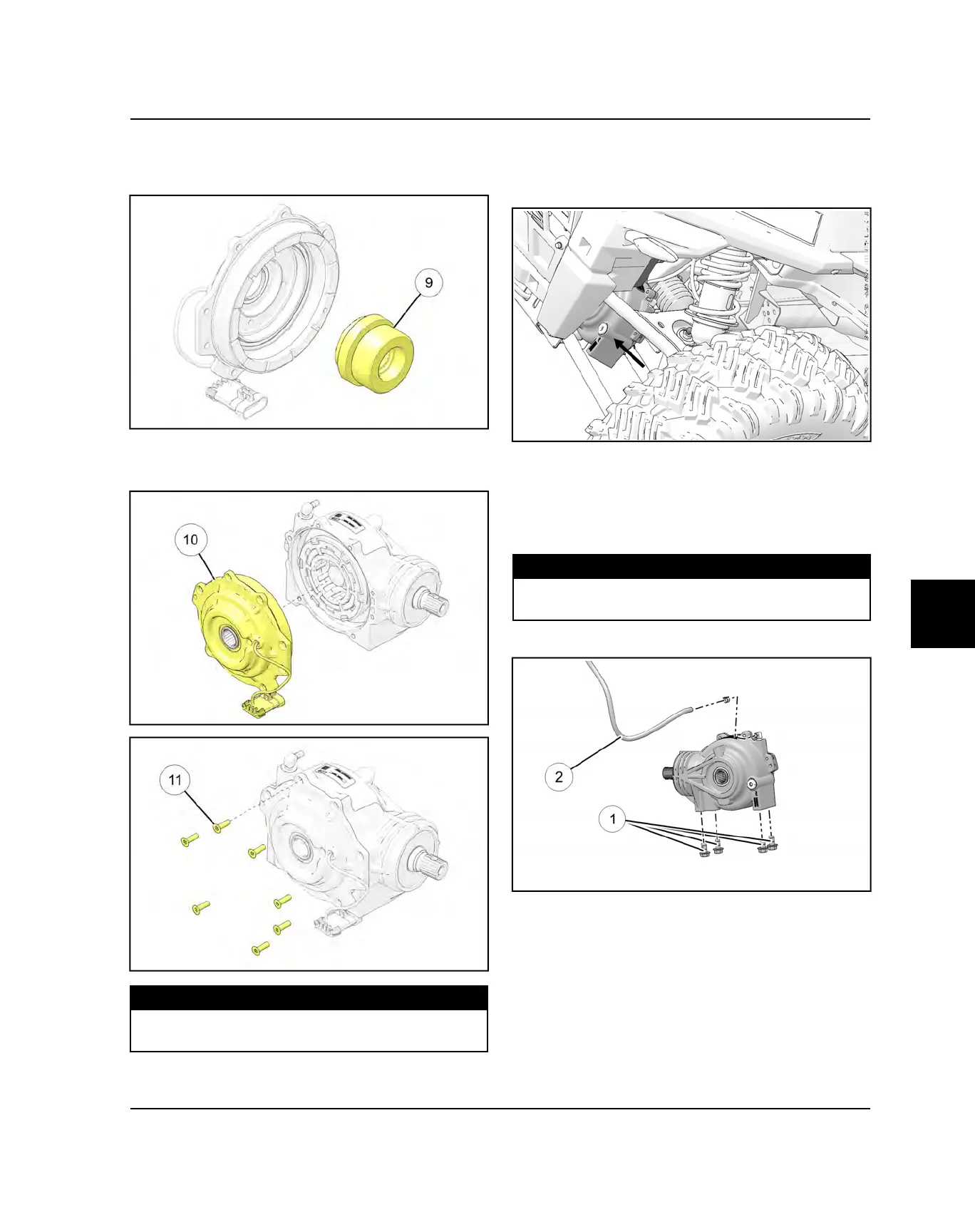

12. Carefully install the LH output hub assembly
o
into
the cover plate. Take care not to damage the new
cover plate seal while installing the output hub.
13. Install the output cover assembly
a
onto the
gearcase housing. Install the seven cover plate
screws
s
and torque to specification.
TORQUE
Cover Plate Screws:
9 ft-lbs (12 Nm)
FRONT GEARCASE INSTALLATION
1. Install the gearcase back into the vehicle through the
LH wheel well area, above the upper A-arm.
2. Lubricate the front gearcase splines with Anti-Seize.
3. Install the prop shaft onto the front gearcase input
shaft. Use a NEW spring pin in the front prop shaft.
4. Install the four bolts
q
that secure the front gearcase
to the frame and torque to specification.
TORQUE
Front Gearcase Mounting Bolts:
33 ft-lbs (45 Nm)
5. Install the vent line
w
.
FINAL DRIVE
