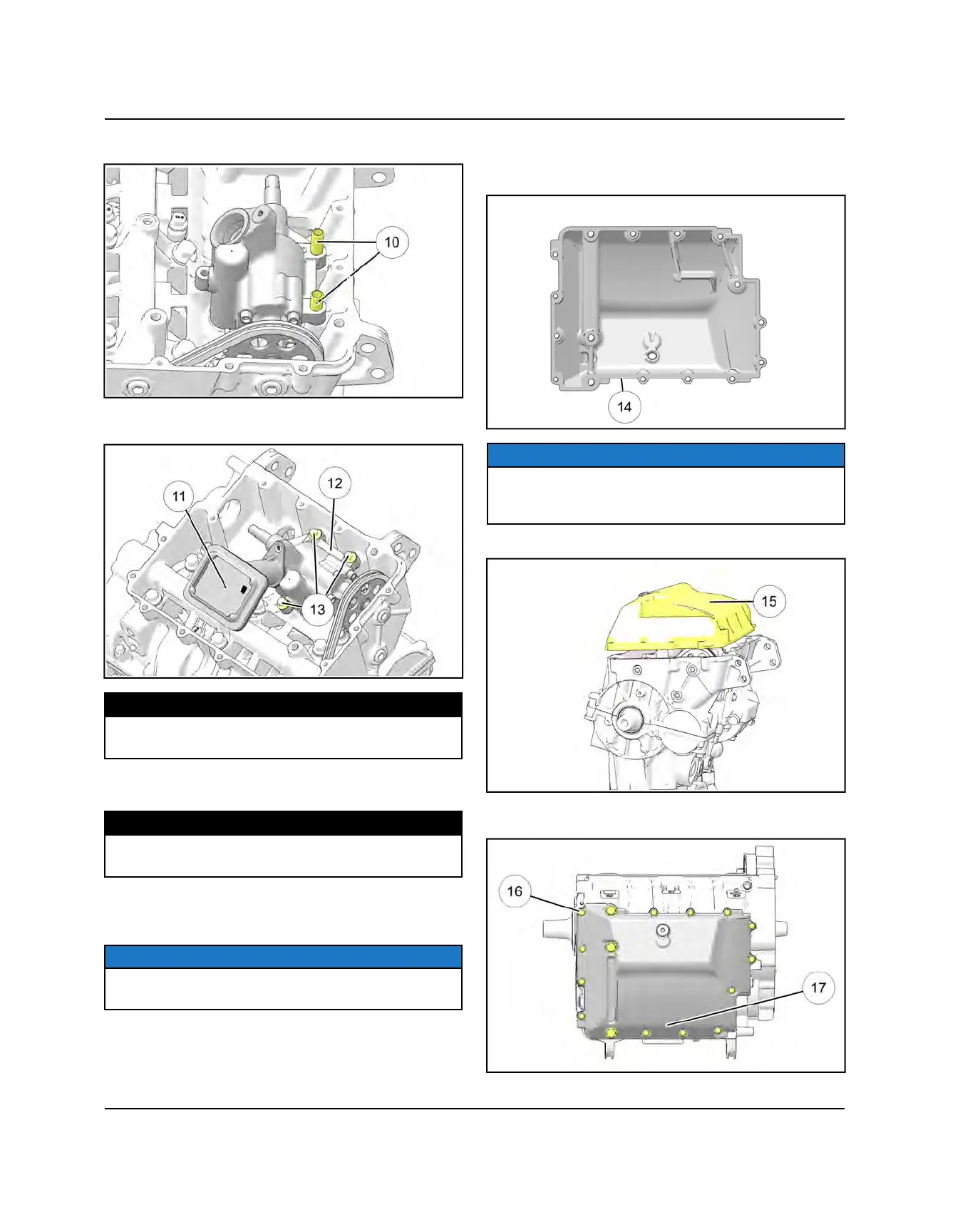

17. Install dowel pins

into oil pump mounting holes.

18. Install the three bolts

that retain oil pump

to the

crankcase. Torque mounting bolts to specification.

TORQUE

Oil Pump Mounting Bolts:

7 ft-lbs (10 Nm)

19. Reinstall oil pump pick-up

if previously removed.

Torque mounting screws to specification.

TORQUE

Oil Pump Pick-Up Retaining Screws:

7 ft-lb (10 Nm)

20. Clean the gasket sealing surfaces on oil sump cover

and crankcase to remove old gasket material and

any oil.

NOTE

Gasket surfaces must be DRY and oil free. Use care

upon assembly to keep oil away.

21. Apply a thin, continuous film of Crankcase Sealant

(PN 2871557) to sump cover mating surface

. Do

not allow sealant to dry before assembly.

NOTE

Dipstick must be removed before oil pan is assembled

to the engine. Failure to do this will damage the

dipstick.

22. Install the oil sump cover

onto the crankcase.

23. Install the thirteen M6

and three M8 bolts that

retain the oil sump cover

to the crankcase.
