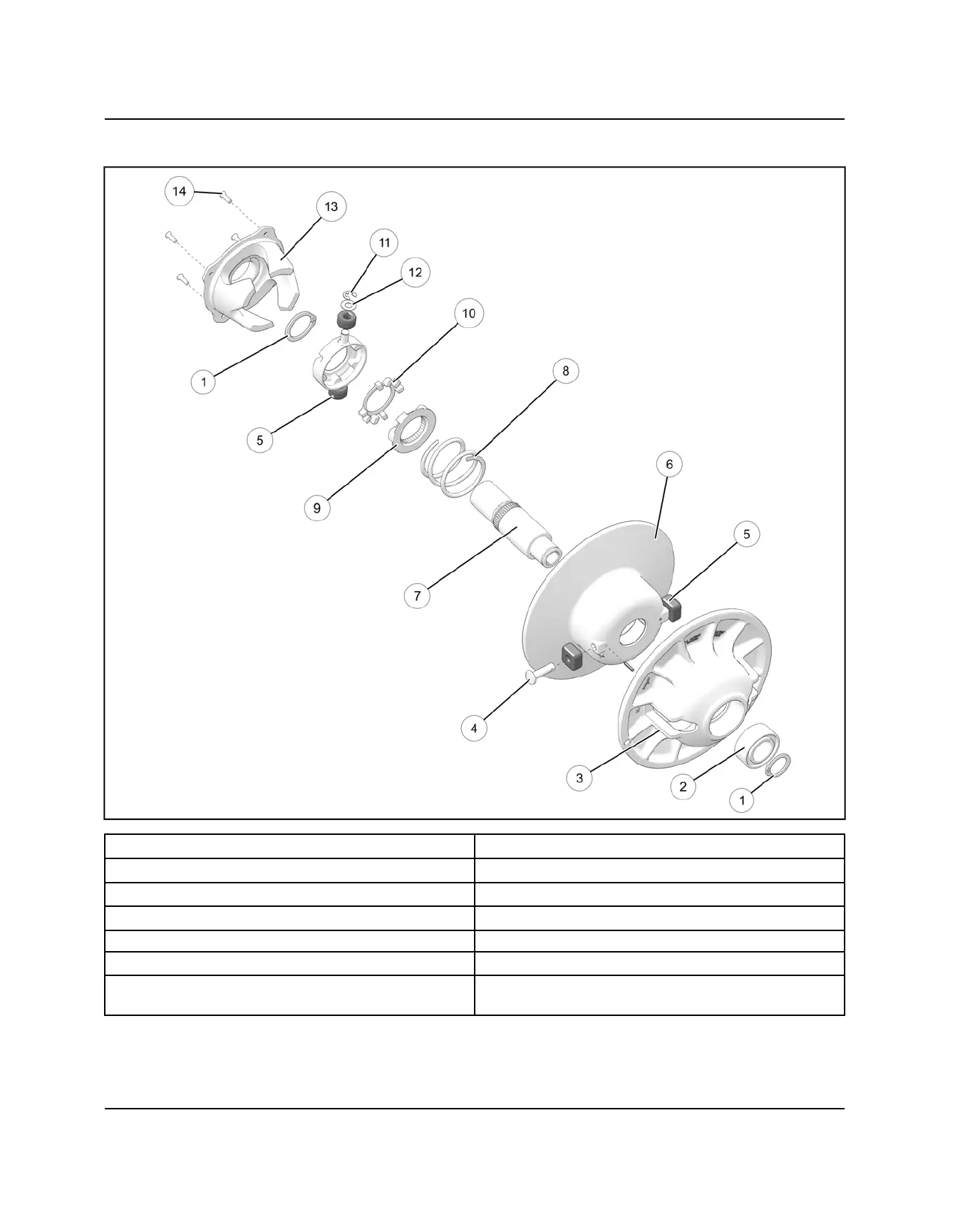

DRIVEN CLUTCH ASSEMBLY VIEW
q
Snap Ring
i
Spring
w
Bearing
o
Spider Insert
e
Stationary Sheave
a
Spider Dampener
r
Pin
s
E-Clip
t
Slider / Roller
d
Washer
y
Moveable Sheave f
Helix (Cam)
u
Clutch Shaft
g
Helix Screws
48 in-lb (5 Nm)
PVT SYSTEM
