5.36

9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service

Manual

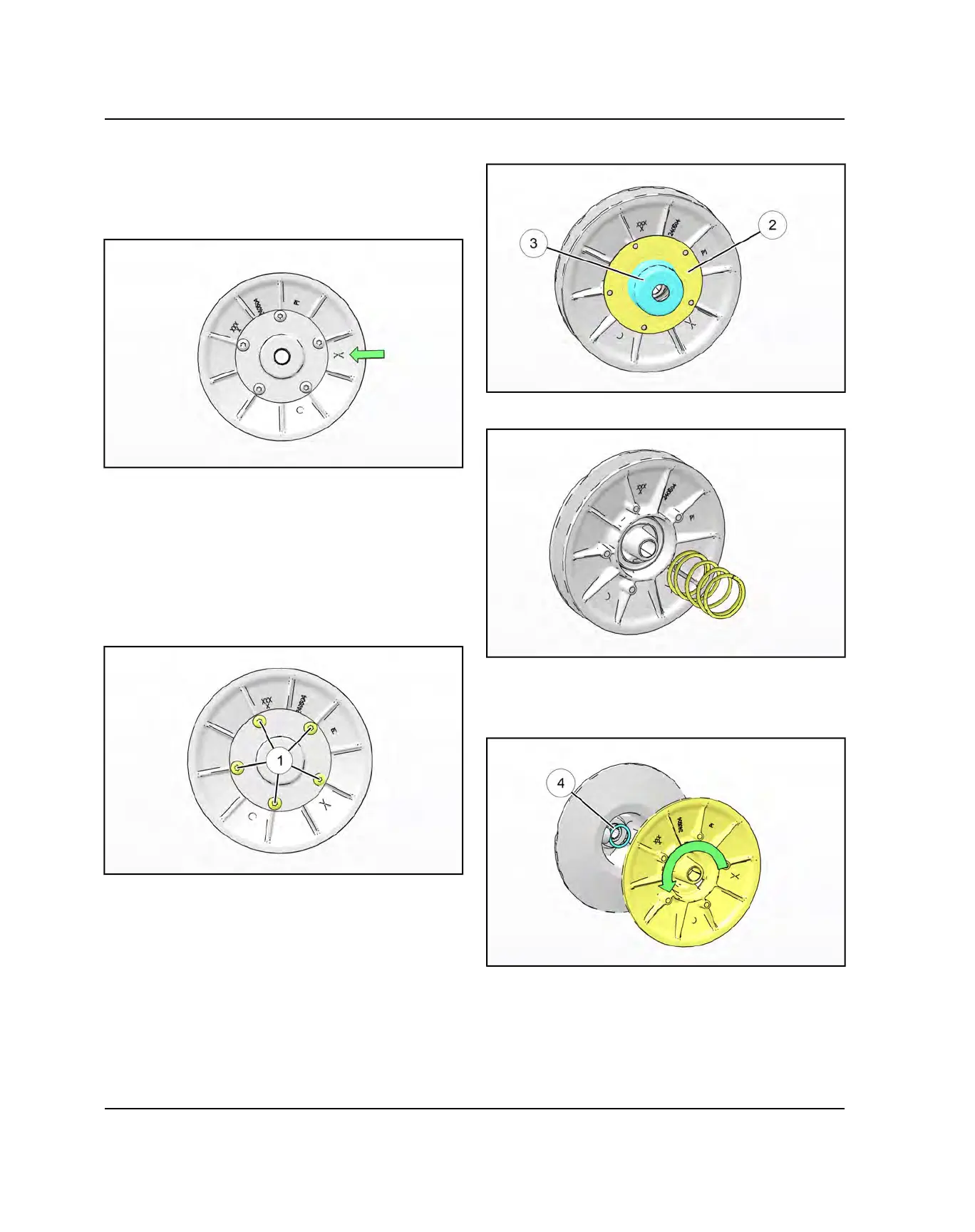

DRIVEN CLUTCH DISASSEMBLY

1. Mark the position of the clutch sheaves before clutch

removal or use the X’s on the sheaves for reference.

This aids in reassembly and maintains clutch balance

after reassembly.

2. Remove the drive belt (see “Belt Removal”, page

3. Remove the driven clutch retaining bolt and washer.

4. Remove driven clutch from the transmission input

shaft and install it on a universal clutch compressor

(PU-50518). Spin the tool down until it touches the

spring cup.

5. Remove the five Torx screws

that secure the

spring cover to the inner clutch sheave.

6. Turn the compression tool handle counter-clockwise

to relieve spring pressure and remove the

compressor tool from the clutch assembly.

7. Remove the spring cover

and spring cup

8. Remove the spring.

9. Rotate the moveable sheave counter-clockwise to

release it from the rollers on the stationary sheave.

Note if there is a thrust washer

between the

sheaves.

PVT SYSTEM
