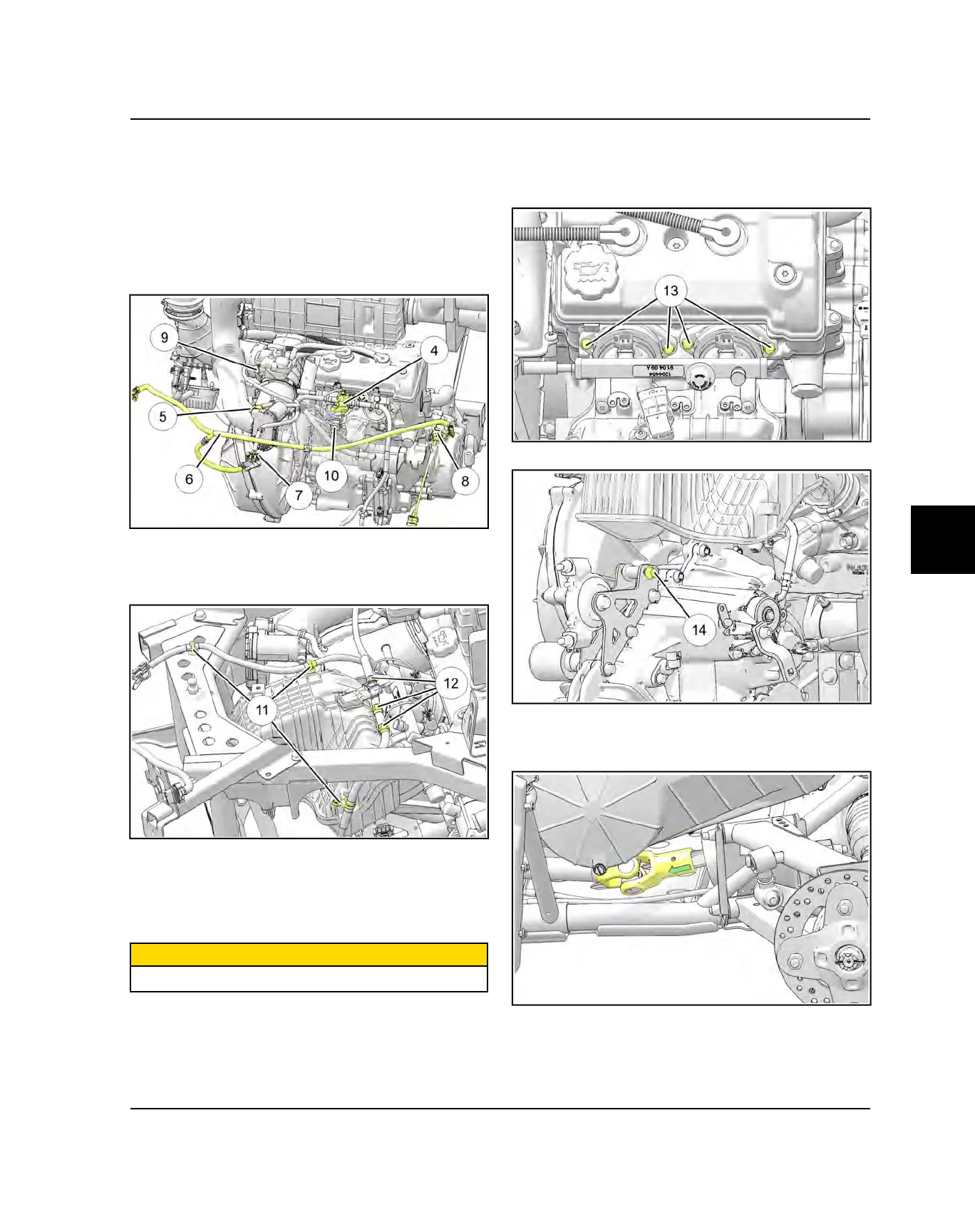

7. Disconnect the following electrical components:
• TMAP
r
• ETC
t
• taillight harness
y
• speed sensor
u
• CPS
i
• transmission switch
o
• engine temperature sensor
a
• diff relay (if equipped)
8. Remove the three fasteners
s
retaining the harness
to the intake manifold and two fasteners retaining the
harness by the transmission switch.
9. Remove the three harness clamps
d
on the intake
manifold. Move the main harness out of the way
towards the driver’s seat.
10.Disconnect the two fuel rail mounting bolts and move
the fuel rail off to the driver’s side.
CAUTION
Be careful not to pinch or kink the fuel rail
11. Remove the four fasteners
f
retaining the intake
manifold to the engine and the one
g
retaining the
bottom of the intake manifold to the transmission
bracket.
12.Remove the prop shaft from the transmission output
shaft (see Chapter 7 – Prop Shaft Removal, page
7.19 ).
13.Remove rear wheels from the vehicle.
TRANSMISSION
