Polaris RZR 900 2016 Service Manual

6
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.
6.11

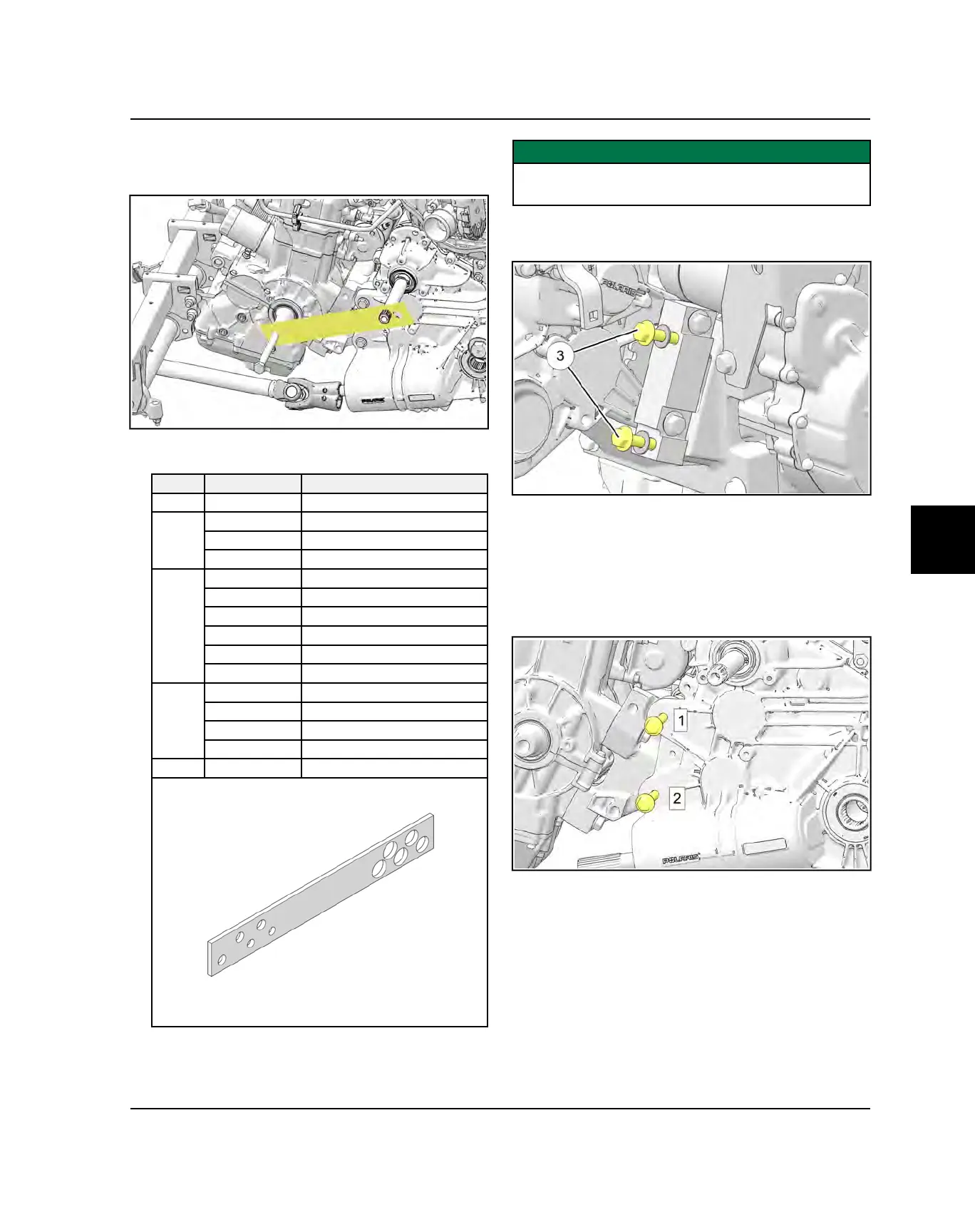

6. Install the Clutch Center Distance tool (PU-50658-A)
onto the crankshaft and transmission input shaft to
properly position the clutch center distance.
PU-50658–A
HOLE
YEAR
VEHICLE DESCRIPTION
1 2012 RZR 570
2
2011-14 RZR 900
2014-15 RZR XP 1000
2013 RANGER 900
3
2014-16
ACE
2015-18 ACE 570
2015-16
RGR ETX
2013–18 RZR 570
2014–18 RANGER 500/570
2015-18
RANGER 570 Full-Size
4
2014-18 RANGER 900/1000
2015-18 RZR 900
2016-18 RZR 1000
2016–18
ACE 900
5 2015-18
RANGER Diesel
i.e. 2015 RZR 900 uses the holes marked with a 4
IMPORTANT
Tool should bottom out on the transmission input shaft
and lay flush on the crankshaft.
7. Loosen the two bolts
e
retaining the transmission
coupler bracket to the engine on the right side.
8. Align front transmission mounting holes with
transmission joint bracket mounting holes on engine.
9. Loosely install the two longer bolts into left side
mounting holes and two shorter bolts with washers
into right side mounting holes.
10.Torque left side mounting bolts to specification in
sequence.
TRANSMISSION
