Polaris RZR 900 2016 Service Manual

6.16
9926814 R08 - 2015-2016 RZR 900 2016 RZR S 1000 Service
Manual
© Copyright Polaris Industries Inc.

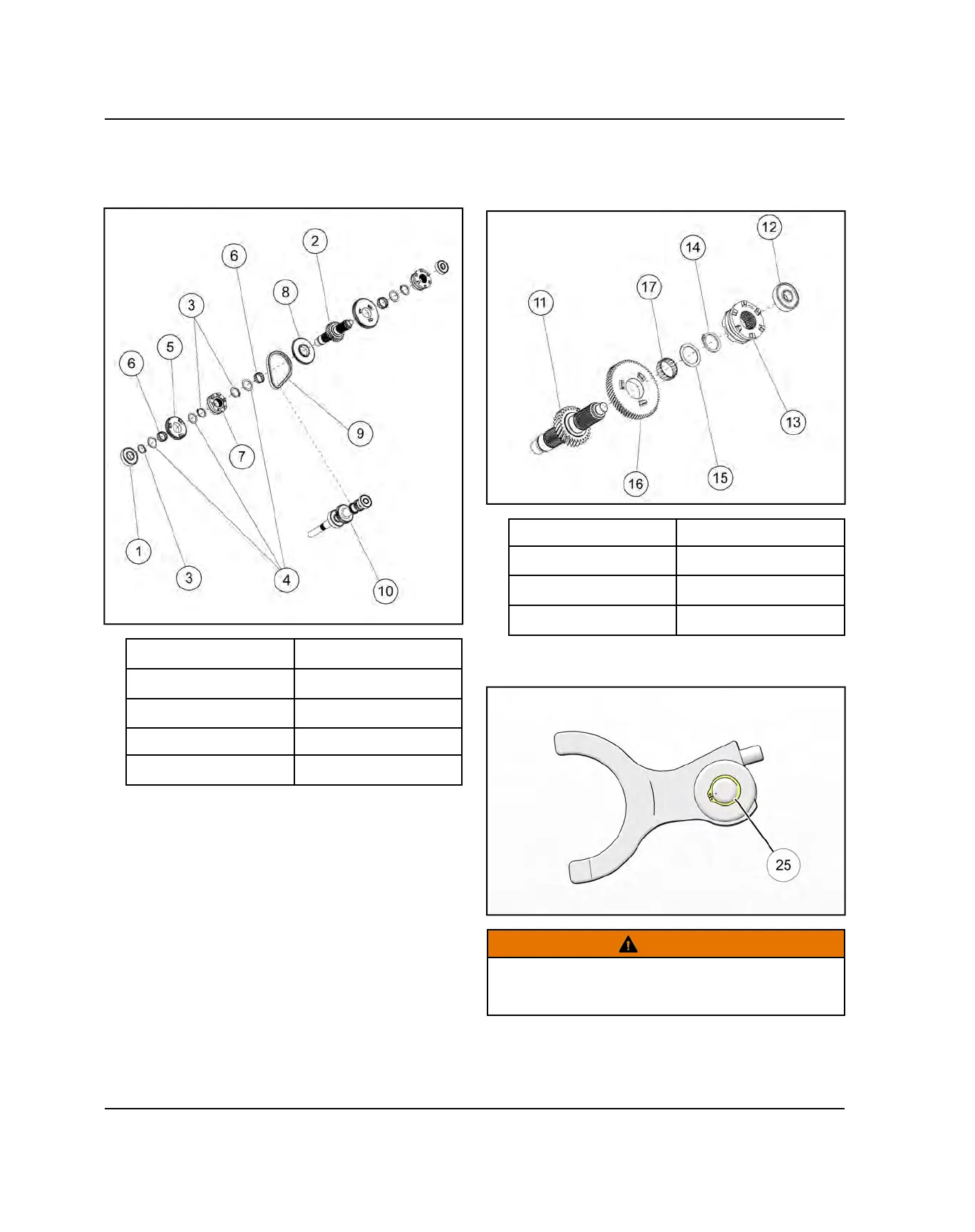

19.Remove the bearing from the reverse shaft using a
bearing puller. Remove the retaining ring and slide
the washers, high gear and needle bearing off the
reverse shaft.
q
Bearing
y
Needle Bearing
w
Reverse Shaft
u
Engagement Dog
e
Retaining Ring
i
Sprocket
r
Washers
o
Silent Chain
t
High Gear
a
Input Shaft
20.Remove the retaining ring and engagement dog from
the reverse shaft.
21.Remove the retaining ring, washer, needle bearing,
and sprocket from the reverse shaft.
22.Tilt the two shafts towards each other and remove the
silent chain from the two shafts.
23.If necessary, disassemble the other end of the
reverse shaft. Remove the bearing , engagement
dog, retaining ring, washer, low gear
d
and needle
bearing
f
from the reverse shaft.
s
Reverse Shaft
h
Washer
d
Bearing
j
Low Gear
f
Engagement Dog
k
Needle Bearing
g
Snap Ring
24.To disassemble the shift shaft rail remove the snap
ring
2%
from the end of the shift rail on either side.
CAUTION
Use caution when disassembling the shift rail. The
compressed springs on the shift rail may pop off
causing eye or face injury.
TRANSMISSION
