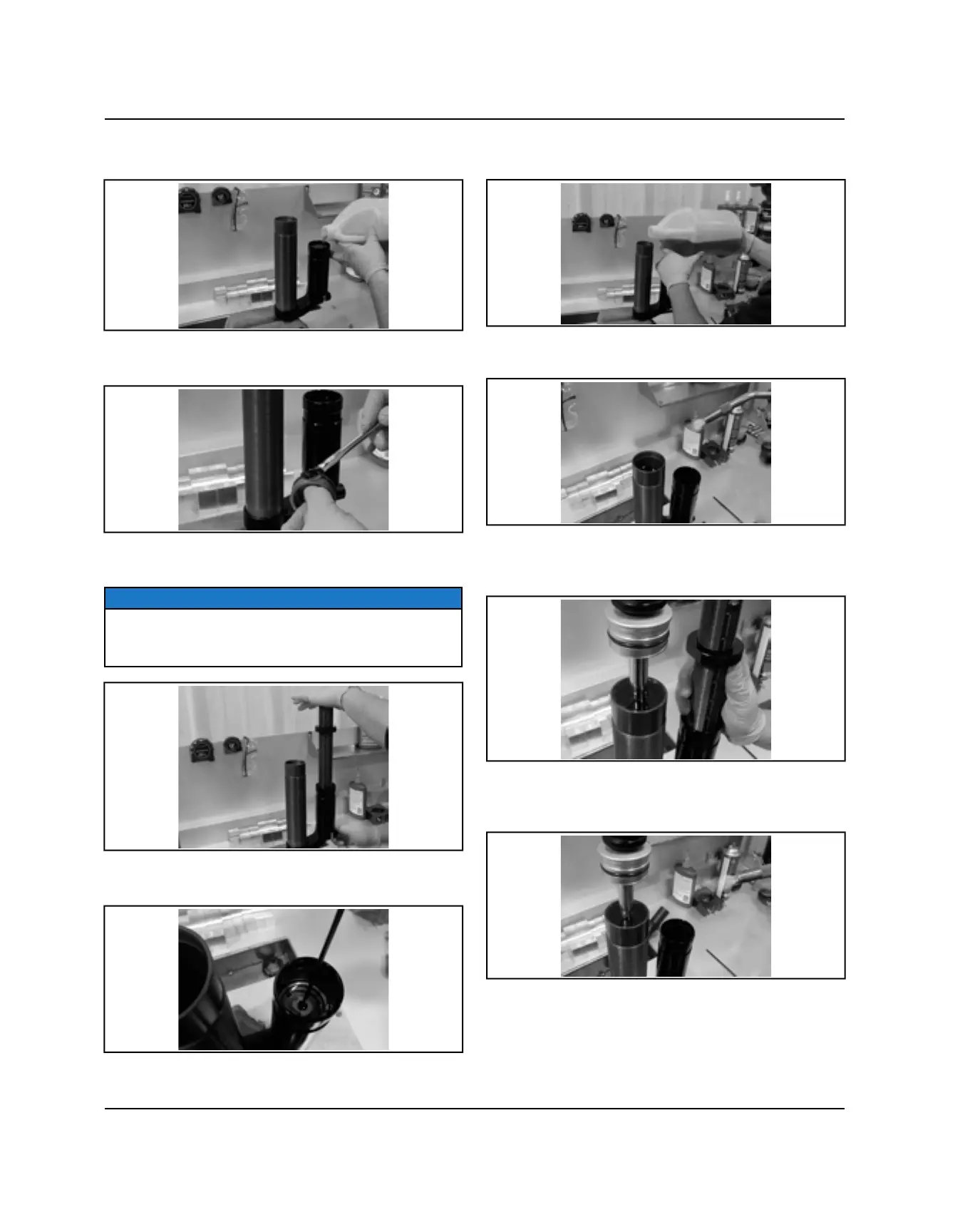

45.Ensure LSC or DSC high and low speed adjusters
are fully open before filling reservoir with oil.
46.Install IFP bearing and O-ring on the IFP and apply a
thin layer of shock oil to bearing and O-ring.
47.Install IFP assembly without bleed screw using the
IFP installation tool.
NOTICE
Push IFP into reservoir about 1.500″ with hand on top
of tool. If you do not place hand on top of tool, you will
be wearing oil.
48.Ensure oil is 0.250″ above IFP and install bleed screw
with O-ring.
49.Fill body with oil about 0.750″ from top, or about
1.250″ from top on cup shocks.
50.Quickly pass a propane torch over oil to eliminate any
micro air bubbles.
51.Install the shock shaft assembly so the piston
assembly is just below the retaining ring groove in the
body.
52.Slowly compress the bearing assembly to release
any air that may be trapped below the bearing
assembly.
