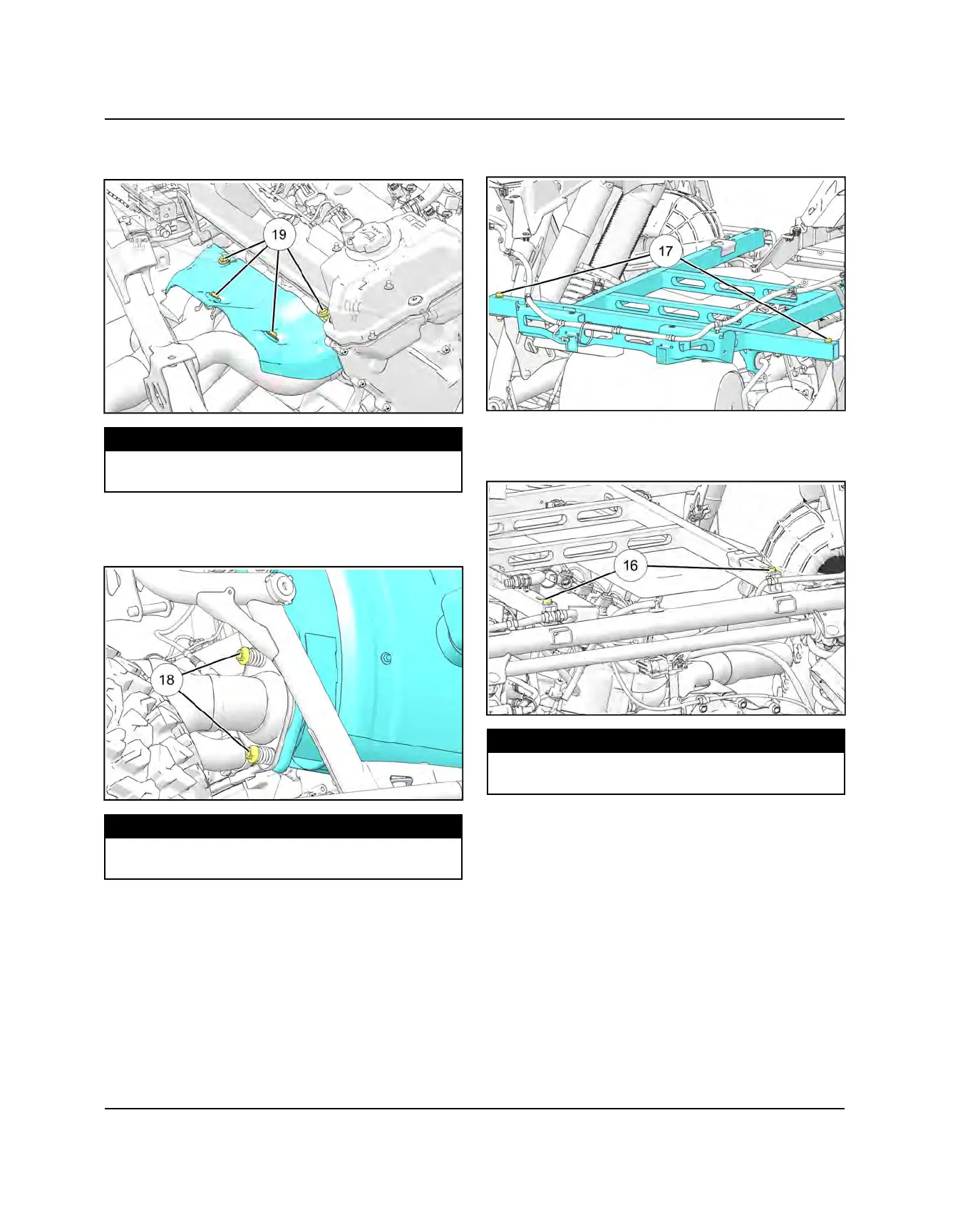

13.Install exhaust headpipe shield and four fasteners
1(
.
Torque fasteners to specification.
TORQUE
Headpipe Heat Shield Fasteners:
71 in-lbs (8 Nm)
14.Install muffler into rubber grommets. Install two
exhaust pipe-to-muffler fasteners
l
. Torque
fasteners to specification.
TORQUE
Head Pipe to Muffler Fasteners:
18 ft-lbs (25 Nm)
15.Install rear cargo box support. Loosely install two rear
fasteners
k
.
16.Install two fasteners
j
into the front of the box
support. Torque front and rear fasteners to
specification.
TORQUE
Cargo Box Support Fasteners:
22 ft-lbs (30 Nm)
