FRONT SUSPENSION

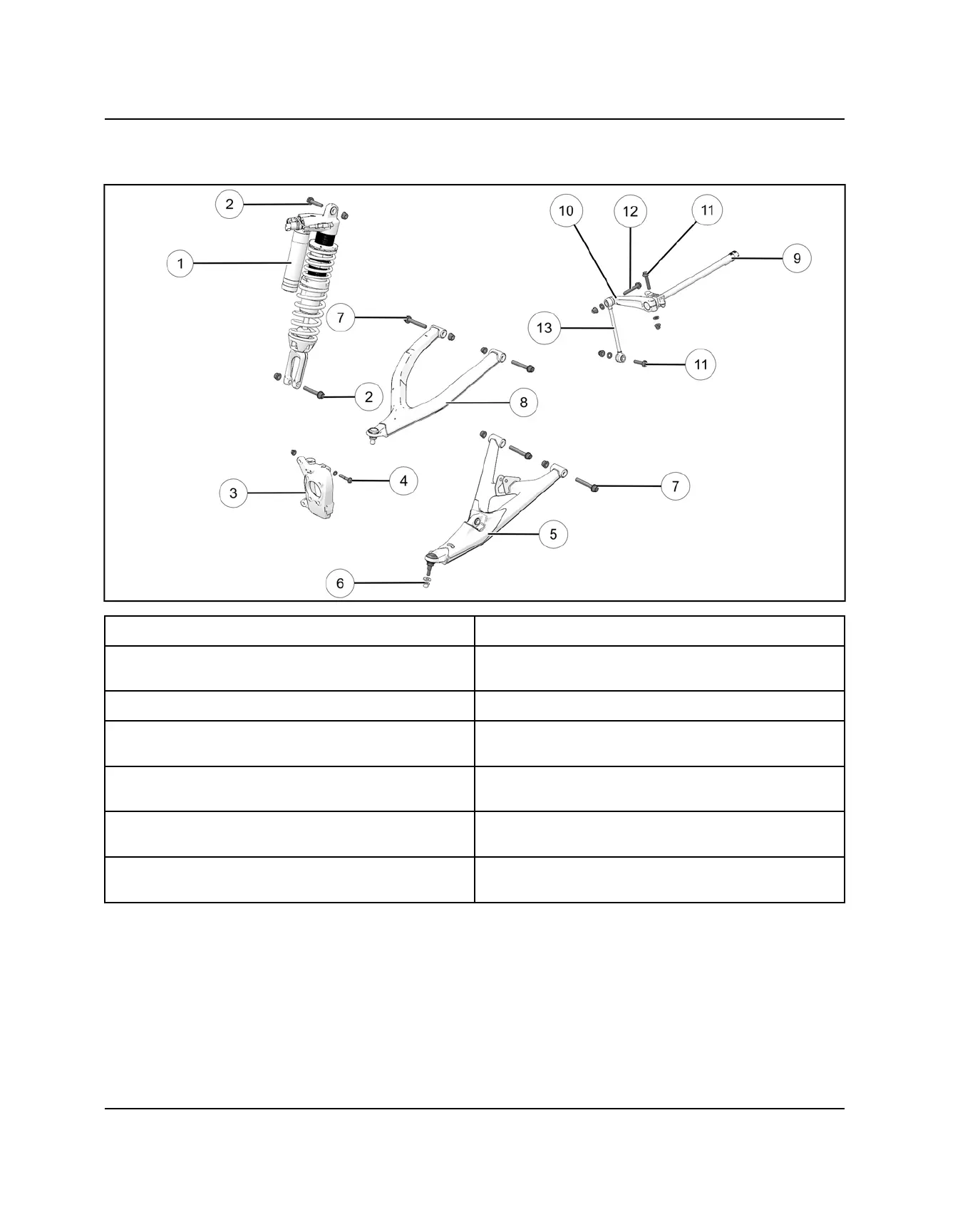

FRONT SUSPENSION ASSEMBLY VIEW
q
Shock Assembly
i
Upper Control Arm
w
Shock Mounting Fasteners
133 ft-lbs (180 Nm) - Torque bolt side
o
Sway Bar
e
Knuckle
a
Sway Bar Arm
r
Upper Ball Joint Pinch Bolt
52 ft-lbs (70 Nm) - Torque bolt side
s
Sway Bar Fasteners
81 ft-lbs (110 Nm)
t
Lower Control Arm
d
Sway Bar Link-to-Arm Fasteners
81 ft-lbs (110 Nm)
y
Lower Ball Joint Fastener
44 ft-lbs (60 Nm) + 90° (Single Use)
f
Sway Bar Link
u
Control Arm Fasteners
133 ft-lbs (180 Nm) - Torque bolt side
