SHOCKS / SPRINGS

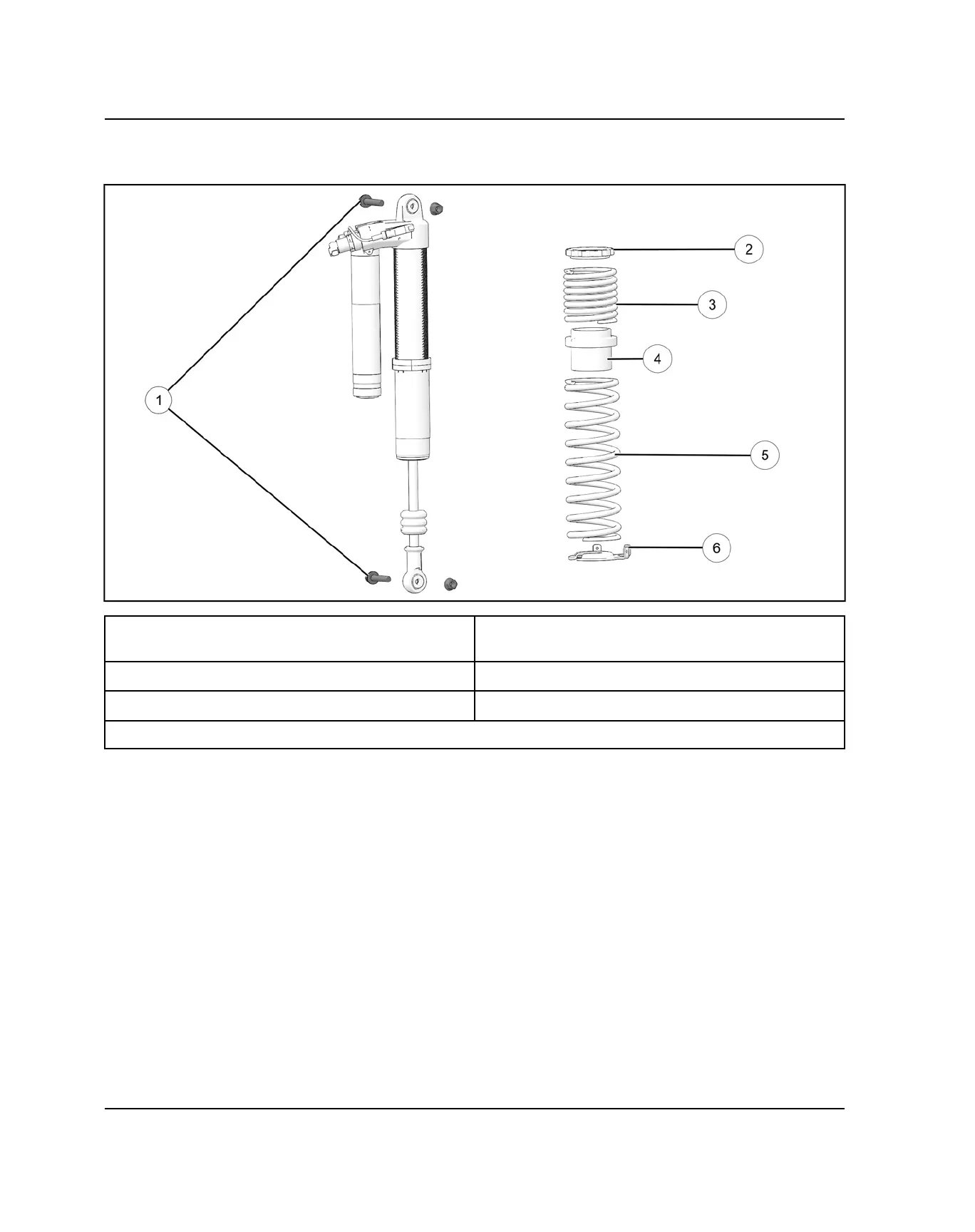

SHOCK ASSEMBLY VIEW
q
Shock Mounting Fasteners
133 ft-lbs (180 Nm) - Torque bolt side
r
Spacer
w
Spring Adjuster
t
Main Spring
e
Tender Spring
y
Spring Retainer
Retainer gap should be 180 degrees from spring end.
SHOCK REPLACEMENT
1. Elevate the vehicle off the ground to relieve the
suspension load.
2. Support under A-arm or trailing arm.
3. If equipped, disconnect Dynamix electrical
connection and cut cable tie retaining harness to the
shock body.
4. Remove the upper and lower fasteners retaining the
shock and remove the shock from the vehicle.
