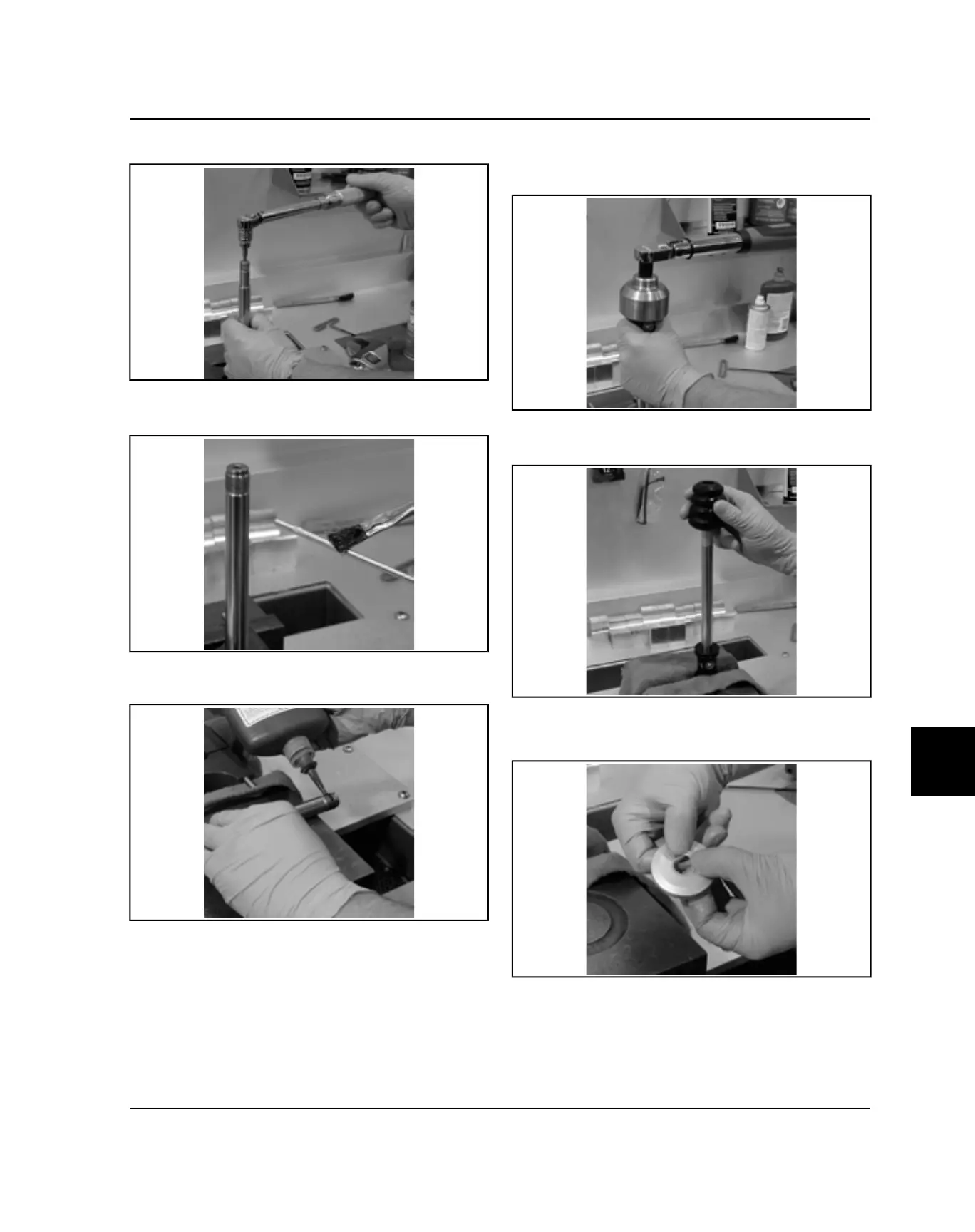

12.Thread in the damping jet and torque to specification.
13.Reverse shock shaft in clamp blocks and apply a thin
layer of Slick Honey to metering rod.
14.Apply specified Loctite® two threads down and two
threads wide 360° around shock shaft threads.
15.Place shaft back in clamp blocks, apply loctite®
primer to eyelet, and Torque eyelet to shock shaft.
See specifications.
16.Reverse shock shaft in clamp blocks and install air
side shaft spacers (if equipped) and jounce bumper.
17.Install wiper seal in body cap (if equipped).
18.Apply thin layer of shock oil to seal.
