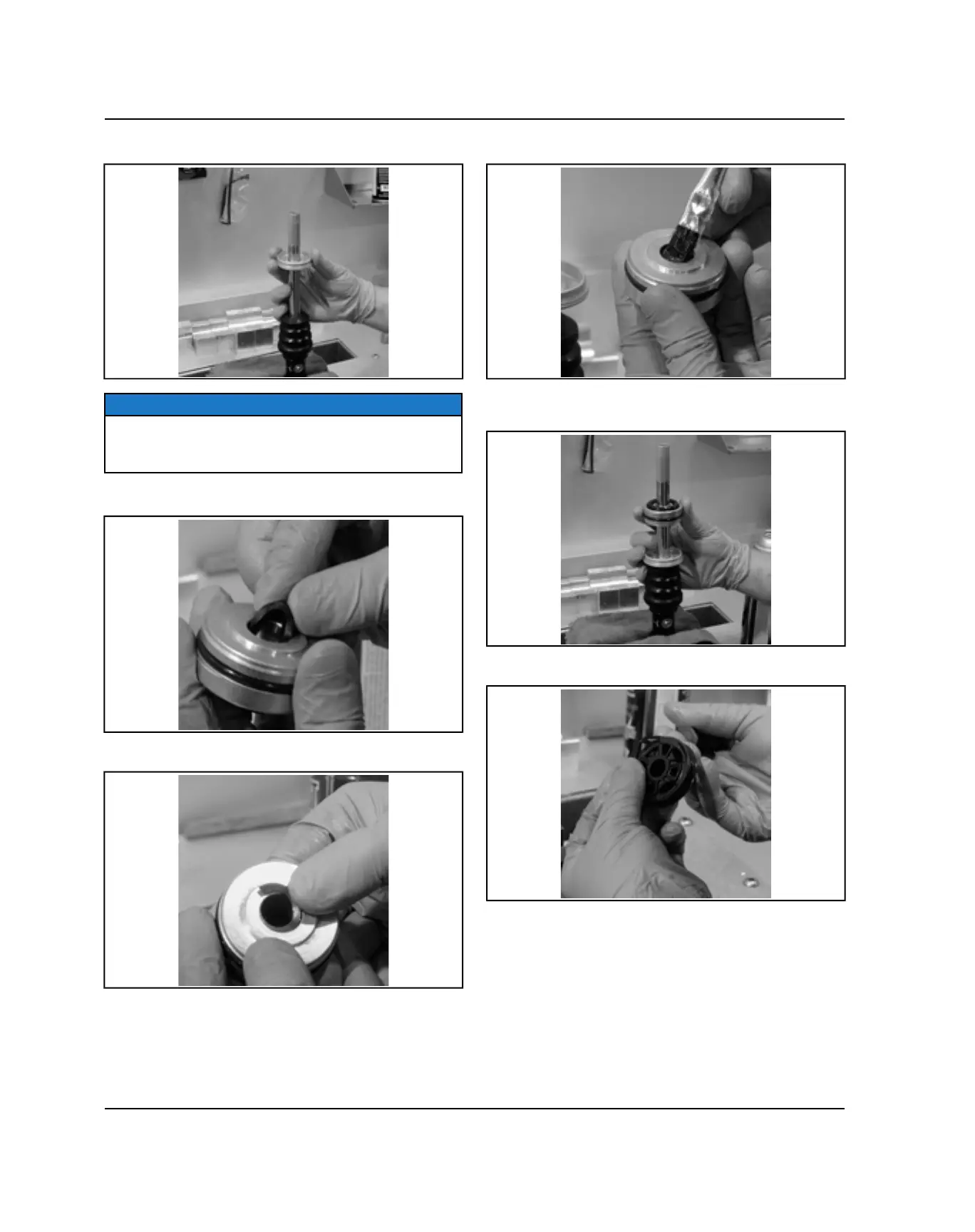

19.Install body cap.
NOTICE
There are two different sides on the U-Cup seal. When
seal is installed, energizing side should be facing
internal bearing.
20.Install U-Cup seal.
21.Install back-up washer.
22.Apply thin layer of shock oil to washer.
23.Install bearing assembly using the appropriate bullet
tool.
24.Install piston O-ring if applicable.
