MAINTENANCE AND LUBRICATION
Adjustments
Steering Assembly
The steering assembly of the ATV should be checked periodically for
loose nuts and bolts. If loose nuts and bolts are found, see your Polaris
dealer for service before operating t he vehicl e.
Camb er an d Caster
The camber and caster are non-adjustable.
Rear Spring

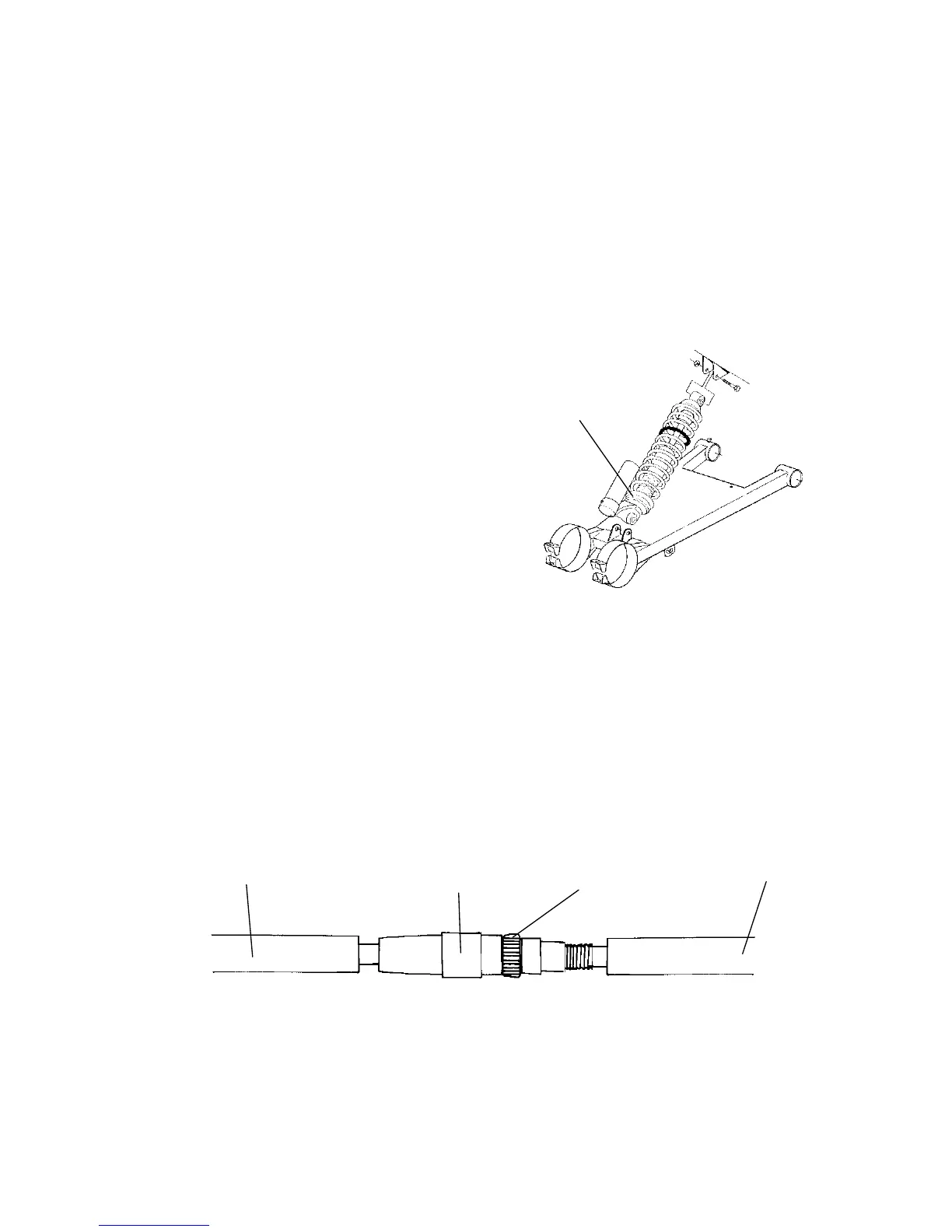

The rear shock absorber spring is
adjusted by rotating t he adjuster (1)
either clockwise or counterclockwise
to increase or decrease spring
tension.
NOTE: Accessory springs are
available through your Polari s dealer.
Throttle Cable Freeplay
Throttle cable freeplay is adjusted at the handlebar.
1. Slide the boots (1) off the inline cable adjuster sleeve (2). Loosen
the adjuster locknut (3).
2. Turn the adjuster until 1/16″ to 1/8″ freeplay is achieved at the
thumb lever. NOTE: While adjusting freeplay, be sure to flip the
throttle lever back and forth.
3. Tighten the locknut and slide the boots over the cable adjuster until
they touch at the midpoint of the adjuster.
1
1
2
1
3
