1. Turn on the pool filtration pump and flush out
the plumbing line. Turn off the pump.
2. Choose the return line nearest the center-
point of the longest pool wall for the Polaris.
If there are two return lines at an equal dis-
tance from the centerpoint, select the return
line that is closer to the pool equipment.
Place one eyeball regulator into one of the
remaining return lines.
Note: Once installed, verify the cleaner is operat-
ing according to the Operation Section on page 4.
3. Unscrew the universal wall fitting from the
quick disconnect.
• If the return line for the Polaris has 1-1/2"
female threads exposed, screw in the uni-
versal wall fitting by hand. Turn the quick
disconnect clockwise (also by hand) into
the universal wall fitting to tighten it into
place; do not overtighten. Once secure,
the quick disconnect can be removed
without removing the universal wall fitting.
•

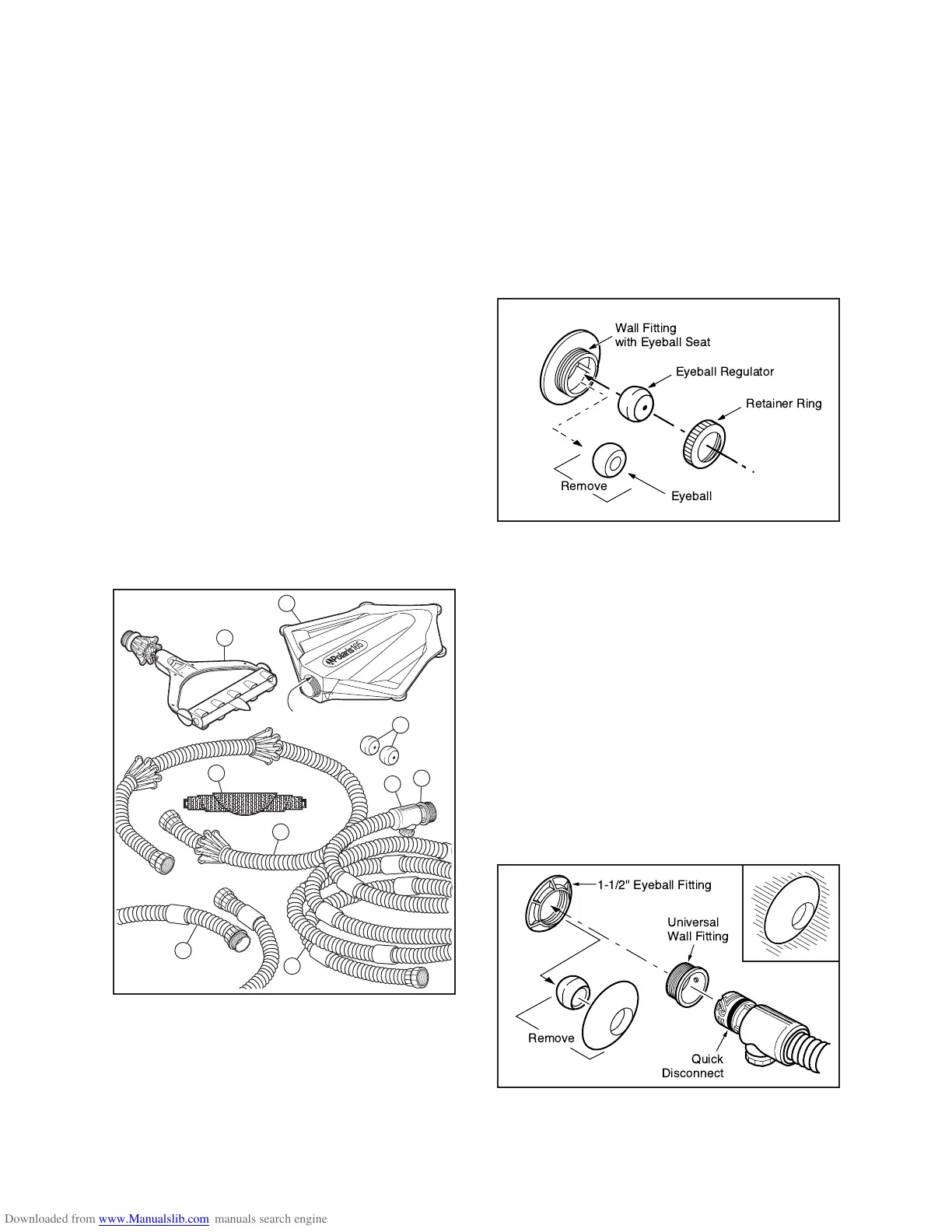

If the return line for the Polaris looks like
the one below, remove the parts shown
and install the universal wall fitting.
I. Introduction
Thank you for choosing a Polaris 165. It will
vacuum the bottom and sweeps the sides of any
size or shape in-ground vinyl, fiberglass or tile
pool. The Polaris 165 does all the hard work for
you, leaving you with a sparkling clean pool. It’s
simple to use and easy to install. Just follow
these step-by-step instructions.
II. Installation Instructions
A. Polaris 165 Components
The Polaris 165 box contains:
1. Surface Module
2. Jet Sweep Assembly
3. All-Purpose Bag
4. Sweep Hose, 10 Ft.
5. Float Hose Extension, 8 Ft.
6. Float Hose, 24 Ft.
7. Quick Disconnect
8. Universal Wall Fitting
9. Two Eyeball Regulators
B. Installing the Universal
Wall Fitting
It is important to have a clean pool filter before
installing the Polaris 165.
2
