SoundPoint IP Color Expansion Module Quick Start Guide
Power is automatically transferred from
the host SoundPoint IP 670 phone to Color
Expansion Module(s) upon connection.
Units may be plugged and unplugged (hot-
swapped) at any time to a live SoundPoint
IP 670 host phone.
The welcome logo will appear on the
display as soon as each Color Expansion
Module is detected. After a brief period,
this will disappear and the Color
Expansion Module can be configured for
lines, speed dials or Directory Numbers as
desired.
Up to three Expansion Modules can be
cascaded to a single host phone,
increasing the total number of buttons to
48 for intensive business IP telephony
users.
Each of the 14 keys on the Expansion
Module feature individual dual-color LED
indicators, allowing easy recognition of
line or call state. Keys may be
programmed for speed dials, lines or
directory numbers (DN).
Check with your system administrator if
any errors appear during the configuration
process or if a specific configuration is
required for your application.
For further instructions on how to use your
new SoundPoint IP Color Expansion
Module for line or speed dial capability,
please consult the SoundPoint IP 670 User
Guide.

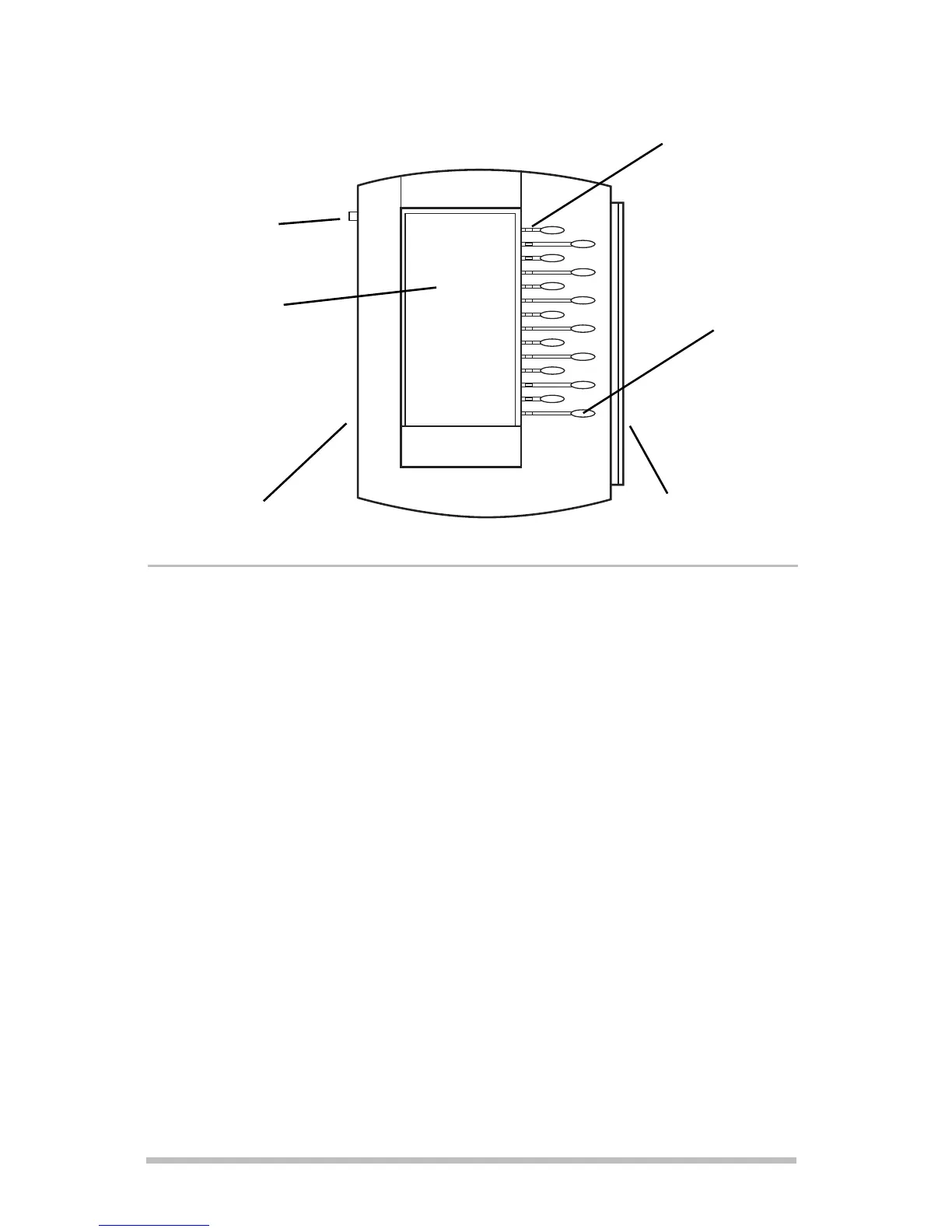

Features
Startup
Large, Full-Color,
Backlit Graphical
Display
Power Contacts
Infrared Lens
LED Indicators
Line Keys
Infrared Lens
