Polycom SoundStructure C12 Hardware Installation Guide

Installing The SoundStructure C16, C12, C8, And SR12
2 - 5

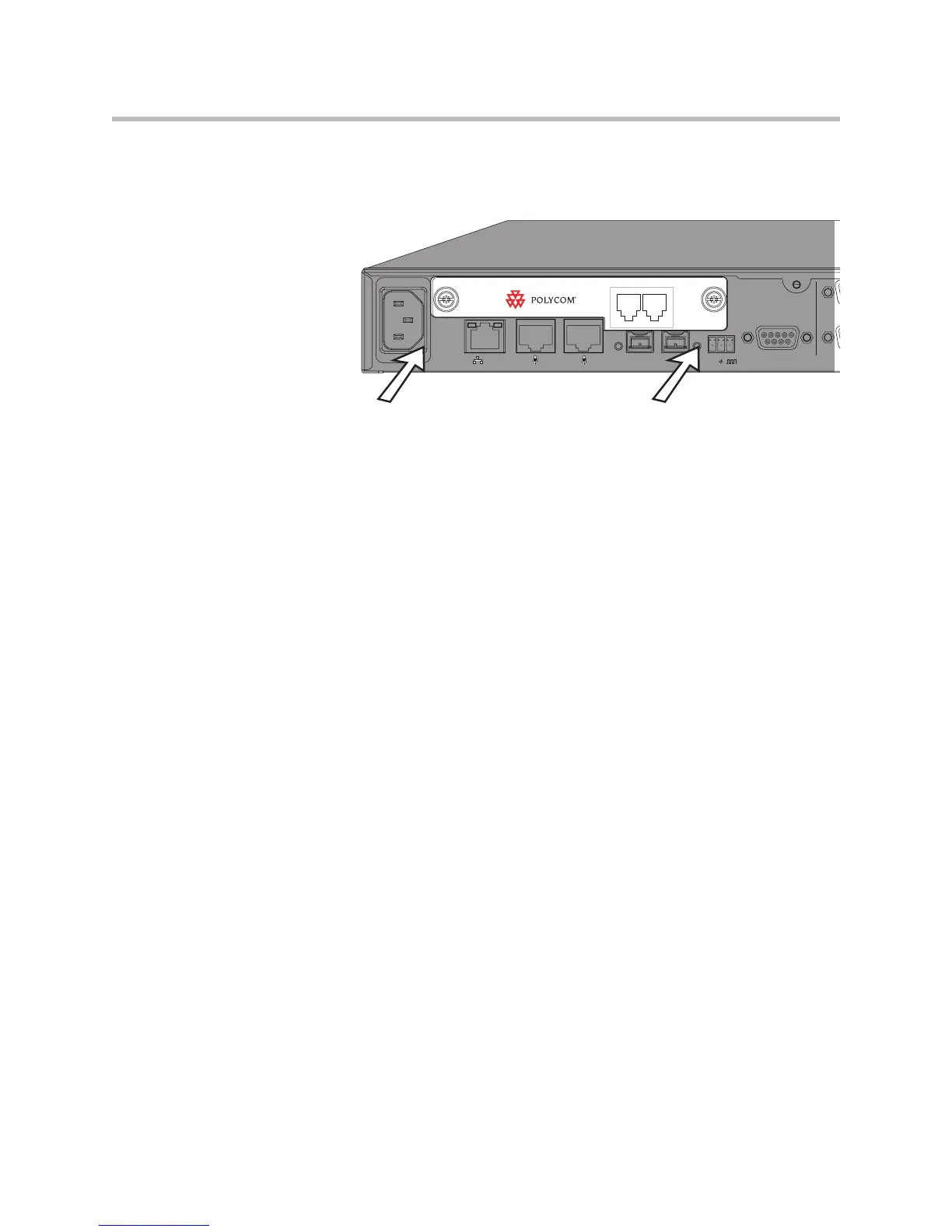

3. Insert the plug-in card into the slotted rails and push until it is tight into
the slot.
4. Tighten the thumbscrews on the rear-panel of the plug-in card.
5. If no further installation steps are required, plug in the AC power cable;
otherwise, continue with the remainder of the installation steps prior to
applying power.
PHONE LINE
PIN 2: TXD
PIN 3: RXD
PIN 5: GROUND
PIN 7: CTS
PIN 8: RTS
LAN
C-LINK2
OBAM IR
RS-232
IN OUT
12V
