Polycom Vortex EF2201 Reference Manual

PRE-INSTALLATION
VORTEX EF2201 Reference Manual 4 Technical Support: 800.932.2774
P RE -I NSTALLATION
What’s Included The Vortex EF2201 product package includes the following items:
• Vortex EF2201 Reference Manual
• Vortex EF2201
• External power supply
• Cat 5 cable for EF Bus
• Telephone cable
• Rack mount screws (4)
• Cable clamp and screw
• CD containing other manuals and Conference Composer software
• Product Registration Card
What’s Not Included The following equipment is not included with the EF2201 product package, but may
be necessary to create a completely functional system:
• Acoustic Echo Canceller
• Microphones
• Loudspeakers
• Audio cables
• Videoconferencing codec or other four-wire interface (optional)
• RS-232 remote control device (optional)
Tools Needed for
Installation
• Screwdriver to mount the EF2201 in your rack.

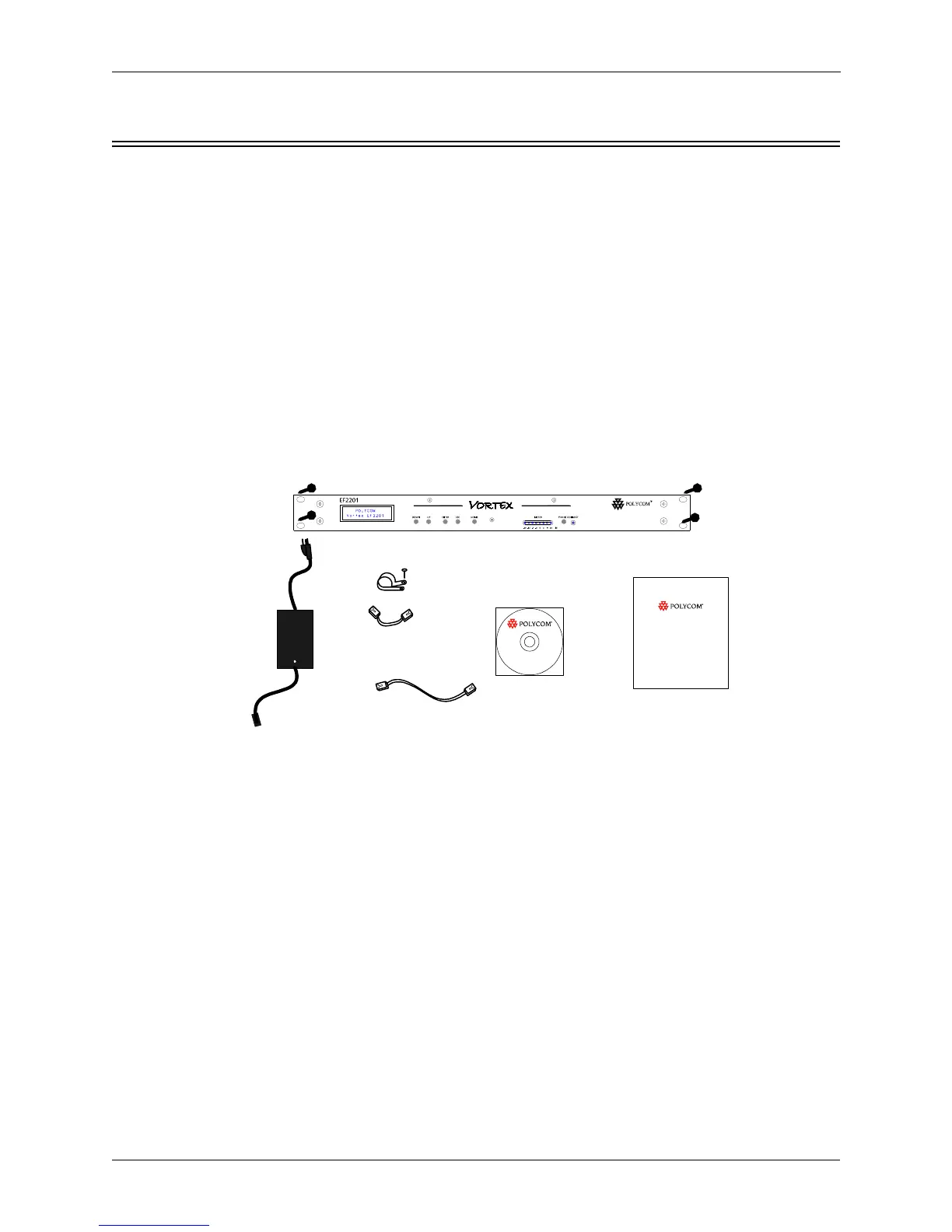

Figure 1. What’s Included with your Vortex EF2201.
x
x
x
x
Vortex
®
EF2201
Rackmount
Screws (4)
Cable Clamp
and screw
External
Power Supply
1-Telephone cable
Vortex EF2201 User Guide
Vortex
®
EF2201
User Guide
CD with
control software and manuals
1-Cat 5 cable
for EF
Bus

Polycom Vortex EF2201 Specifications

General

Rack capacity	1U
Frequency range	250 - 3600 Hz
Cancellation span	32 ms
Echo cancellation	60 dB
RS-232 ports	1
Modem (RJ-11) ports	2
Input voltage	110 - 240 V
Input frequency	47/63 Hz
Power consumption (typical)	15 W
Nominal input level	-66 dB

Weight and Dimensions

Weight	1800 g
Dimensions (WxDxH)	483 x 244 x 45 mm
