SYMPTOM CAUSE SOLUTION
Motor fails to
start or kicks
on and off
A Unit must be plugged into a grounded power outlet.
B Reset the circuit breaker. If problem persists, have the circuit
checked by a qualified electrician.
C Check the line voltage, it must be in the range of 105 to 125V.
No or slow
water flow
through the
return fitting.
Filter pump is
not cleaning
the pool
properly(Cloudy
water,
green…..etc.)
Water leakage
A Fill the pool to the fill line. The suction fitting must be at least 4” under water.
A Maintain chlorine level between 1.0 to 1.6 ppm.
B Maintain pH level between 7.3 to 7.8.
C Clean or replace the filter cartridge.
A Tighten the hose clamps. Check the o-rings on the suction/return fittings.
Check hoses for damage. Replace if needed.
D Check filter for damage and holes. Replace new filter immediately.
E Check for obstructions(s) at the suction fitting and return fitting.
F Have the pool water sample tested by a pool supply store. Obtain opinions
on additional water treatment chemicals.
G Run pump more often, but never when the pump is in use. Clean/replace
filter cartridge more frequently.
B Check for obstructions(s) at the suction fitting and return fitting.
A Unit not plugged in
B Circuit breaker tripped
C Low voltage
A Low pool water level
A Chlorine level
B pH level
C Dirty filter cartridge
D Damaged filter
cartridge
E Slow water flow
F Other chemicals
required
G Pool water very dirty
B Inlet/Outlet clogged
C Dirty filter cartridge
A Suction/return hose
B Vent screw in Seal Top
C Seal Top
D Baes
C Clean or replace the filter cartridge. A spare cartridge makes service more
convenient.
B Check O-ring 13 for damage. Replace if needed. Tighen the Vent Screw 12 .
C Check O-ring 16 for damage. Replace if needed. Tighten the Seal Top 14 .
D Check O-ring 16 for damage. Replace if needed. Tighten the Base 15 .
1. Unplug the Power Filter Pump. Remove the RF Diverter 7 from the Return Fitting 6 , and then plug the Return Fitting 6 with the RF Plug 8 . Hand tighten
the SF Cap 5 onto the Suction Fitting 2 .
2. To depressurize the Filter Pump system, vent the filter pump by twisting the Vent Screw 12 counter-clockwise.
3. Loosen the Hose Clamps 10 at the filter pump inlet and outlet. Detach both Hoses 9 from the filter pump.
4. Turn the filter pump up-side-down. The Base 15 is now locked by a latch pin. To release the lock, push the latch pin down and then turn left. Detach the Base
15 from the Canister 17 by turning counter-clockwise.
5. Remove the Base 15 from the Canister 19 .
6. Remove the Motor Assembly 19 from the Canister 16 . Be careful not
to lose the rubber Nozzle 18 .
18
19
19
17
15

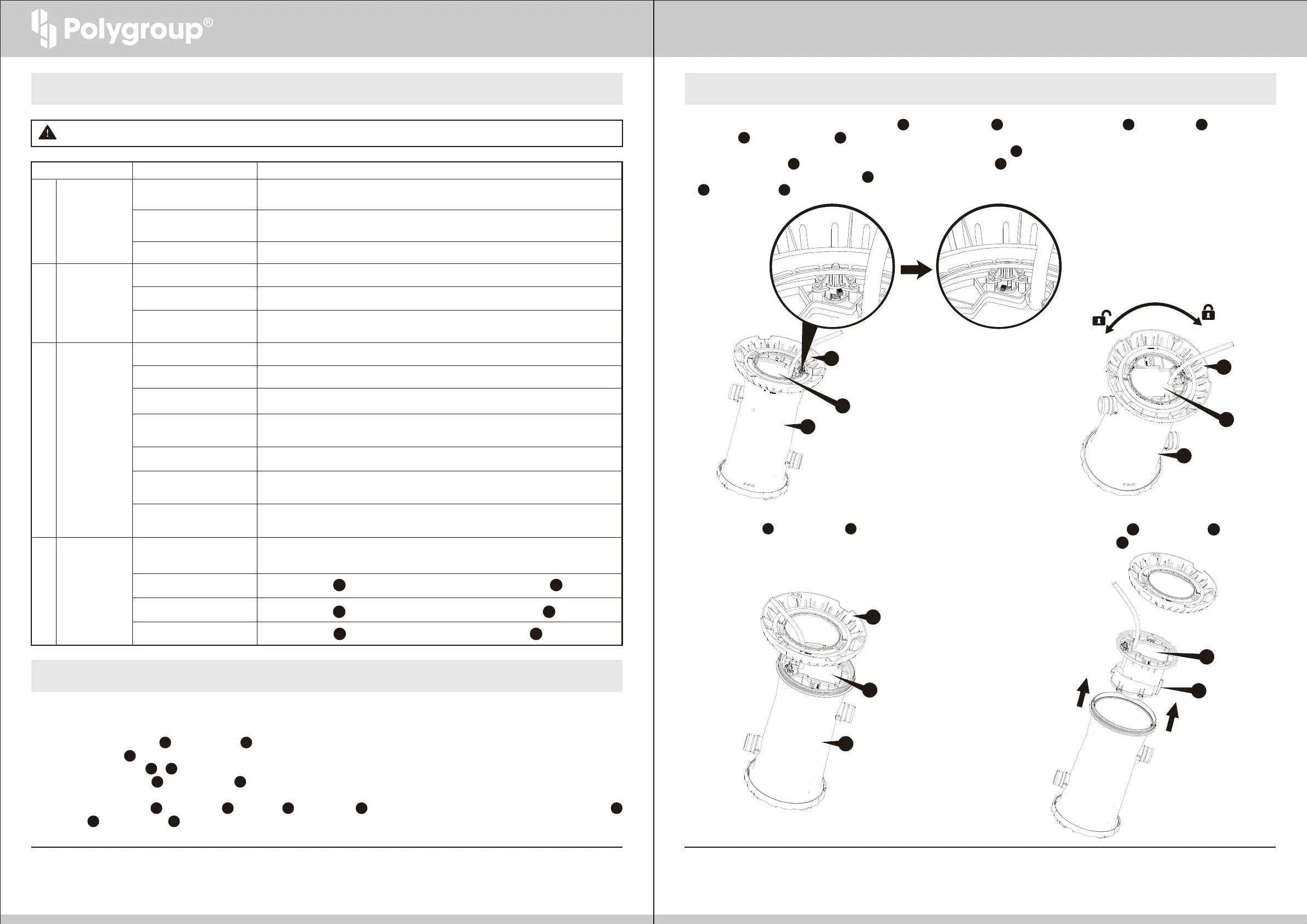

TROUBLESHOOTING GUIDE ROTOR REPLACEMENT INSTRUCTION
POOL PUMP DISASSEMBLY & STORAGE
19
17
15
17
19
15
1. Unplug the Power Filter Pump. Remove the RF Diverter 7 from the Return Fitting 6 and then plug the Return Fitting 6 with the RF Plug 8 Now, hand
tighten the SF Cap 5 onto the Suction Fitting 2.
2. Slowly unscrew the Vent Screw 12 from the Seal Top 14 allowing the Filter Pump to depressurize.
3. Remove the Seal Top 14 by turning counter-clockwise.
4. Remove the Filter Cartridge 20 / 21 and remove any chlorine tablets left inside the core section of the filter.
5. Loosen all four Hose Clamps 10 , remove the Hoses 9 and allow water to drain out.
6. Clean and dry all filter pump parts including filter cartridges.
7. Liberally lubricate the O-rings 13 at the Seal Top 14 and Gasket 16 on the Canister 17 with petroleum jelly, and then reassemble it along with the Seal Top 14 ,
Vent Screw 12 onto the Canister 17 . Store all parts carefully. In a airtight plastic bag.
WARNING: UNPLUG THE POWER CORD BEFORE TROUBLESHOOTING THE FILTER PUMP.
14 15
