Automatic boiler for wood pellets
Instructions for installation and operation
52
TECHNICAL INFORMATION
NUMBER 002/2006
Technical change: BOILERS OF KPxx FAMILY HAVE BEEN EQUIPPED WITH TEMPERATURE CHECK
IN THE FUEL ROUTE
Properties achieved:
Safety of boilers against blazing or retrothrust of combustion products via the fuel transport route is increased by
installation of thermostat placed in the burner where the fuel enters the burner. It is a provision exceeding the
requirements of the standard ČSN-EN 303.5 and increases safety.
The following has been added to the electric equipment of the boiler:
- Burner thermostat.
- Interconnection of both emergency thermostats in series connection - see figure number 4 (page 11).
- Indicator glow lamp which indicates that the emergency burner thermostat has been activated.
Mechanical arrangement:

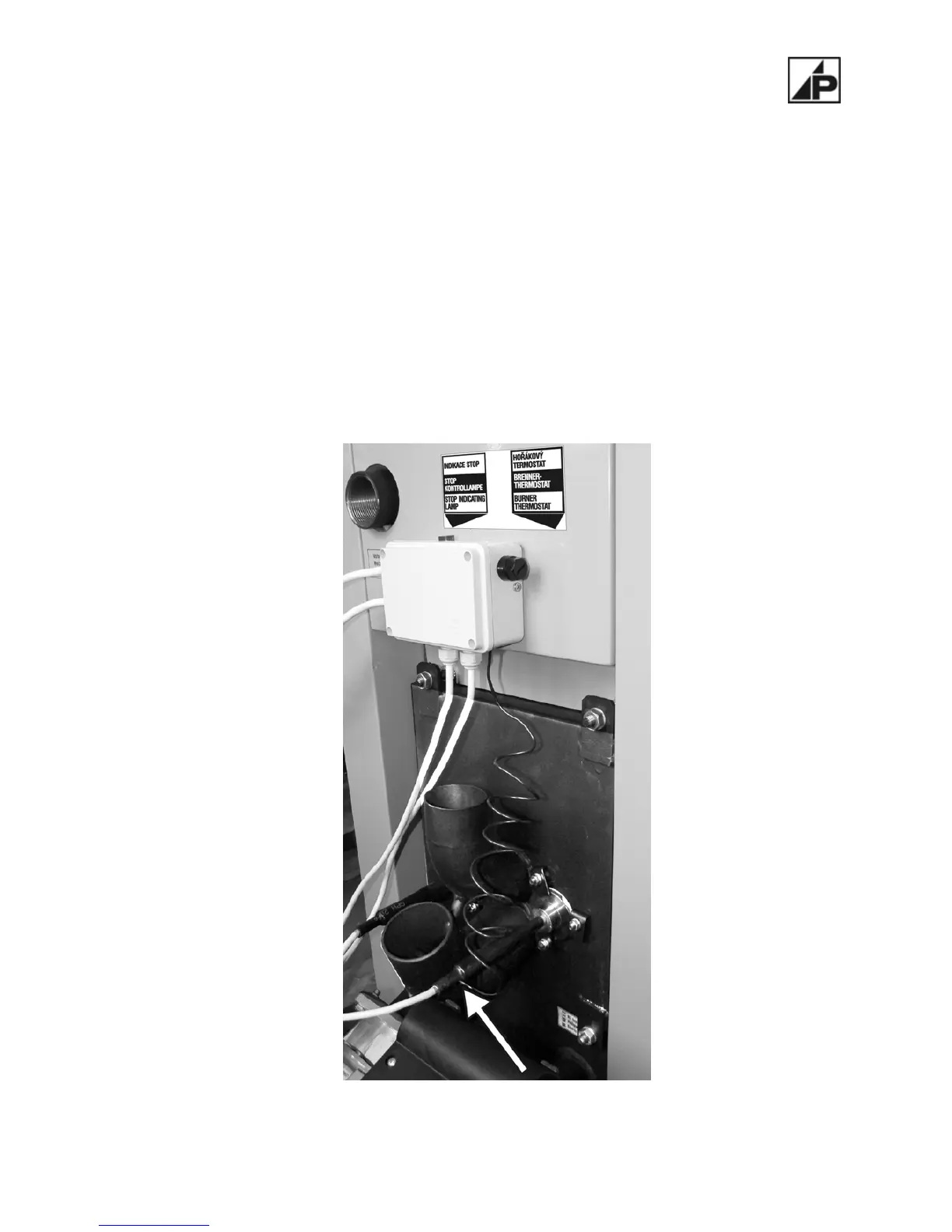

Figure number Ti002/1
