14
Version 2.1
Update: April 2016
PONSEL Mesure Aqualabo Contrôle
35 Rue Michel Marion 56850 CAUDAN, FRANCE
Tel.: +33(0)2 97 89 25 30 Fax: +33(0)2 97 76 55 72
3. Installation
3.1 Description and mounting of the controller.

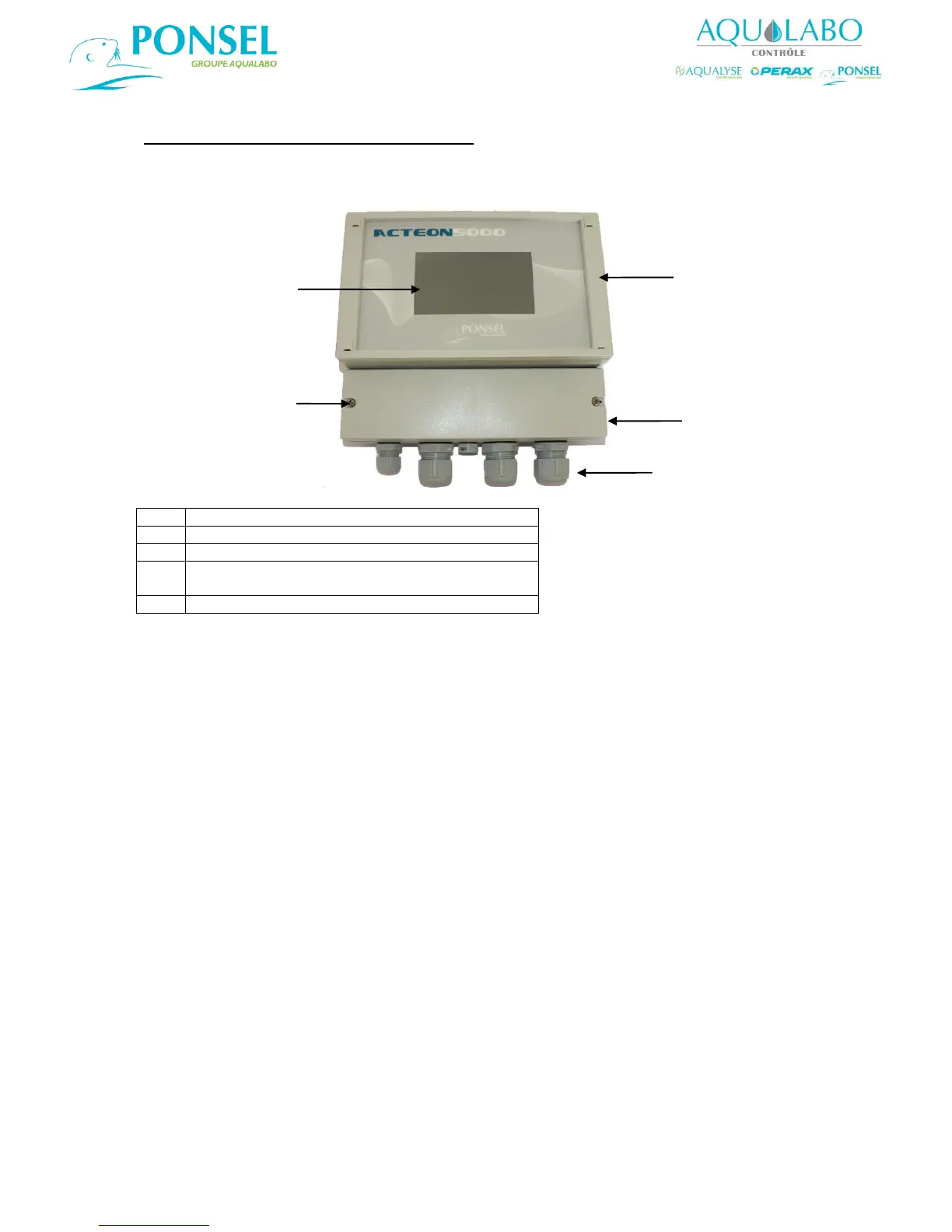

3.1.1 Description of the front face.
1
Touch screen
2
Screws securing lower cover (2 screws)
3
Upper cover do not open.
4
Lower cover - remove to make electrical
connections
5
Four cable glands
3.1.2 Equipment required.
The ACTEON 5000 unit is shipped with a bag containing 2 mounting brackets (with 2 pan head
screws) and a set of 12 connectors (two 5-contact connectors, three 4-contact connectors, three 3-
contact connectors, three 2-contact connectors and one 1-contact connector to connect up the power
supply).
Equipment required for installing the unit and for making the electrical connections:
- PH1x75 mm cross head screwdriver for attaching the unit's mounting brackets and for the screws
securing the cover which protects the electrical connections,
- 2.0 x 75 mm flat-blade screwdriver for working on the various electrical connection terminals.
To mount the ACTEON 5000 on a wall, use M5 screws (with a head size of < 10.8).
