6.2.2 Configuring the On/Off inputs.

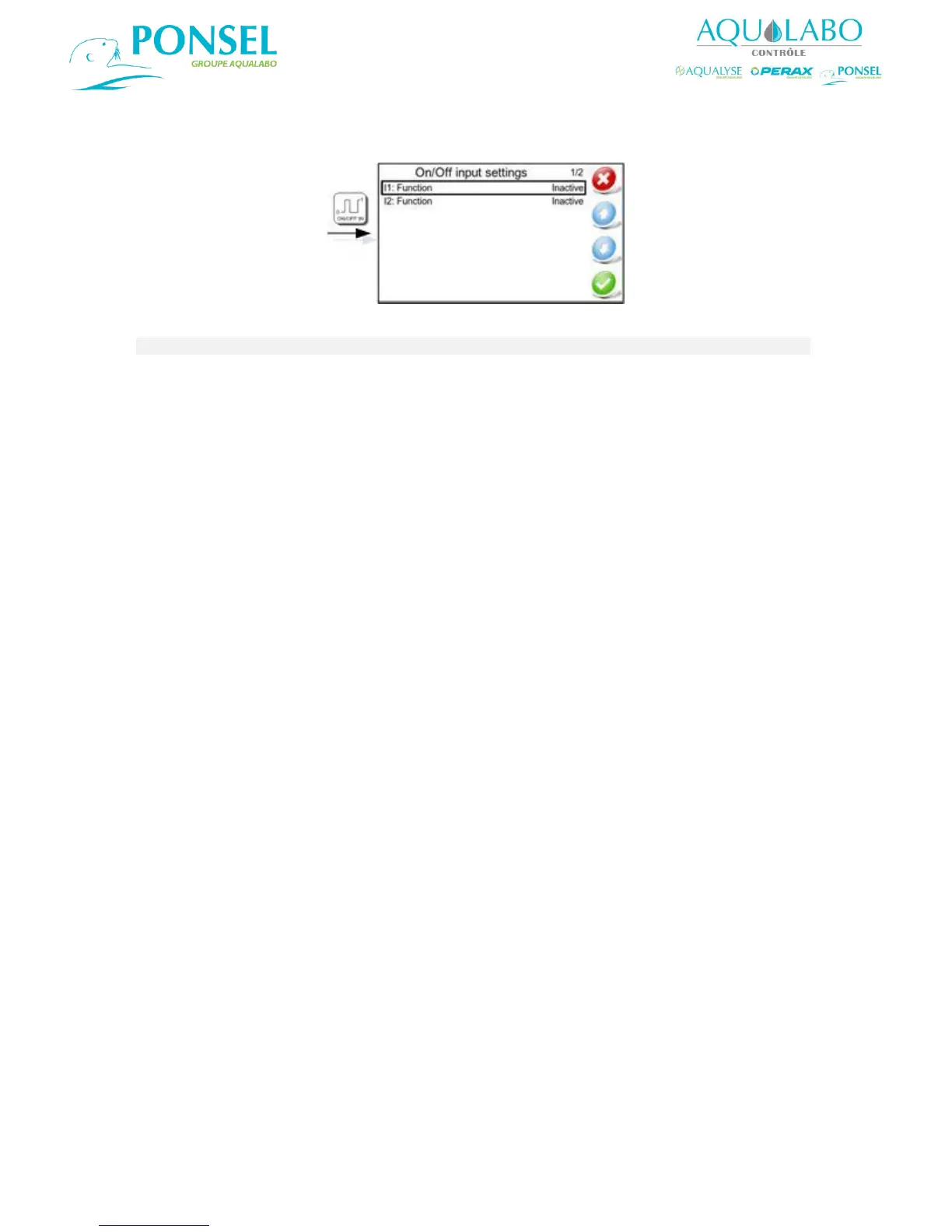

Set-up line
Functionality
I1: Function
Programming of On/Off Input No.1:
Inactive (no programmed action)
Washing: used with an external washing system, for which one On/Off
output would be connected to the ACTEON 5000. The washing activation
signal activates Automatic Maintenance Mode for the relay and analog
outputs (refer to sections 6.2.5 and 6.2.6). A note regarding the activation
and ending of the washing shall be recorded in the Events log (refer to
section 6.2.4).
Event: the functionality is similar to that of the washing function, however, in
the events log this information shall be recorded with a note regarding the
start and end of the event.
Alert: a functionality used to monitor an alarm function fitted to an external
item of equipment. The activation of this function triggers Automatic
Maintenance Mode for the relay and analog outputs (refer to sections 6.2.5
and 6.2.6). A note shall be included in the Events log of the start and end of
the alert.
I1: Release state
NO (for Normally Open)
NC (for Normally Closed)
I2: Function
Programming of On/Off Input No.2 (see above for the configuration of
On/Off Input No.1)
Inactive
Washing
Event
Alert
I2: Release state
NO (for Normally Open)
NC (for Normally Closed)
