3.1.3 Outline drawings of the ACTEON 5000.

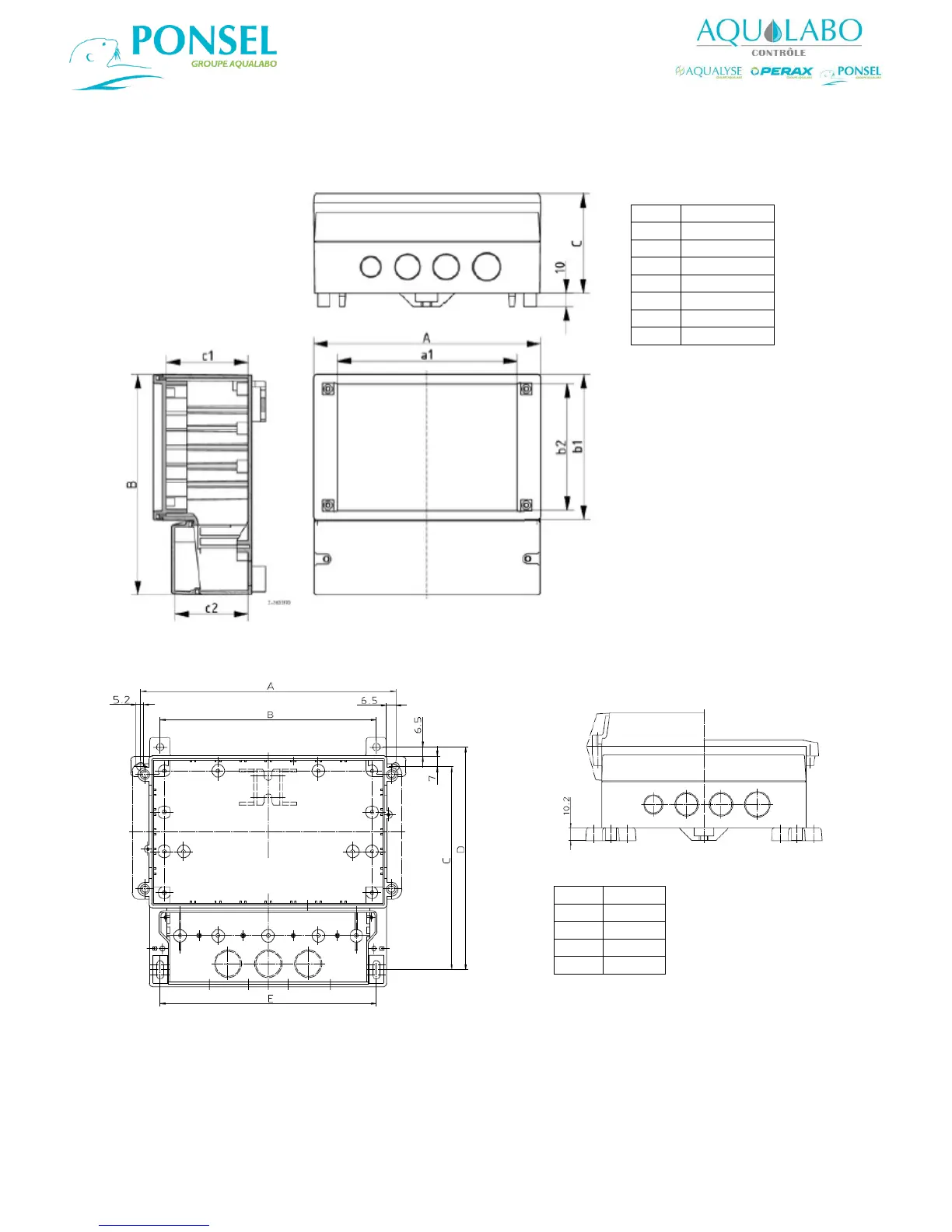

 Overall dimensions of the ACTEON 5000.
Diagram 1: Outline drawing for the ACTEON 5000 unit
 Dimensions when mounted on a wall.
Diagram 2: Outline drawing for the ACTEON 5000 unit – wall mounting
A
225
B
198
C
165
D
178.5
E
198
A
213 mm
B
185 mm
C
84 mm
a1
179.3 mm
b1
125 mm
b2
111.3 mm
c1
71.5 mm
c2
53.5 mm
