6.2.6 Configuring the relay outputs.

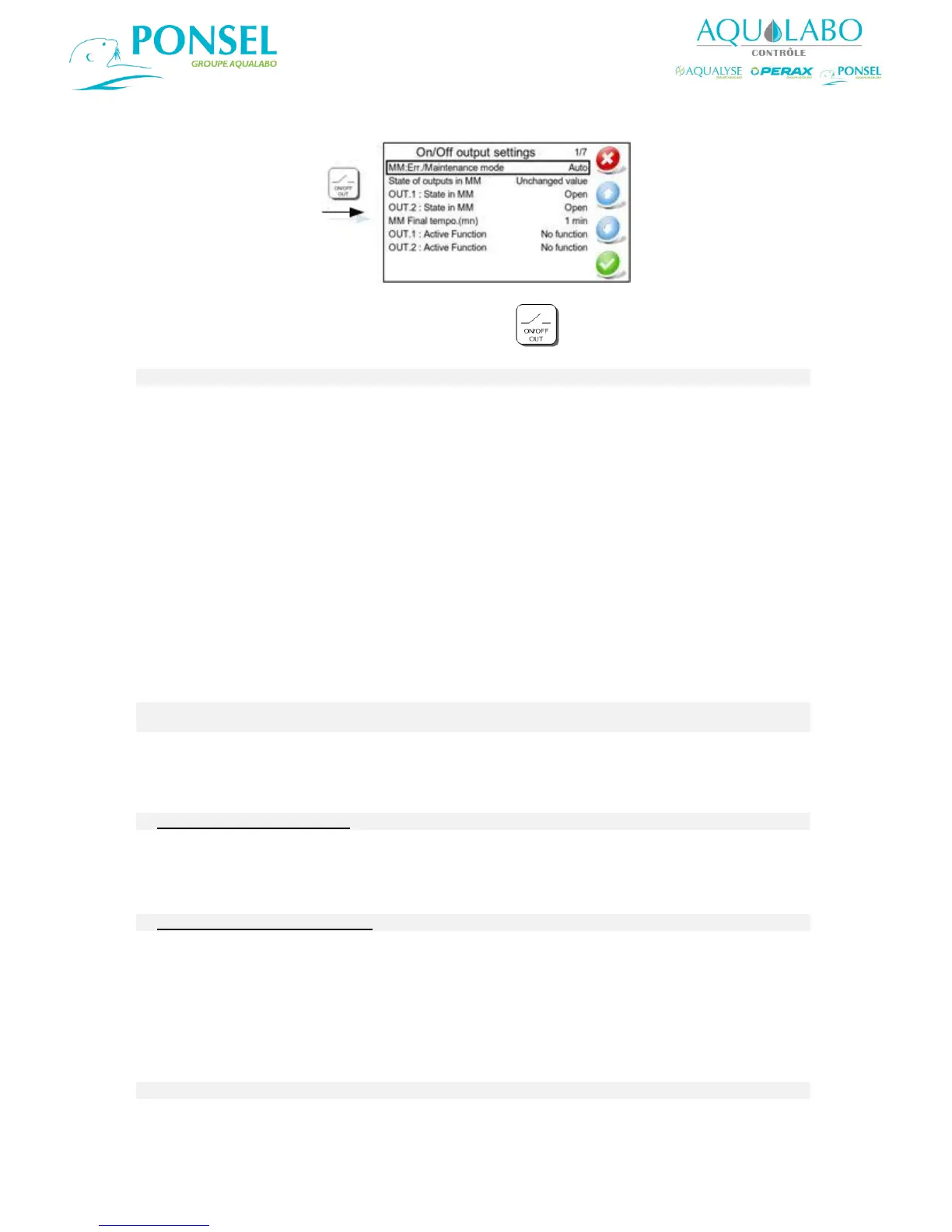

To access the "Relay output settings" window, select the icon from the Main menu.
Set-up line
Functionality
MM: Err/Maintenance
mode
Used to set the Maintenance Mode to one of the following modes:
Automatic (the default option, and which is activated when the calibration
menu is used, or if there is a loss of communication, etc.)
Inactive
Manual (this mode is activated manually when maintenance or other work is
performed on the device).
State of outputs in
MM
In Maintenance Mode, the relay outputs may remain set as:
- the last value measured,
- a fixed (unchanged) value which shall be defined in the "R1: State in MM"
and "R2: State in MM" lines.
R1: State in MM
In Maintenance Mode, Relay 1 can be set to Open or Closed mode.
R2: State in MM
In Maintenance Mode, Relay 2 can be set to Open or Closed mode.
MM Final tempo (mn)
Used to set a time delay which shall begin when the Maintenance is
completed. The possible values are: 0 to 60 minutes.
R1 output settings
R1: Active Function
Used to set output 1 to one of the following:
Not assigned
Fault alarm
Limit indicator
If Active function: Fault alarm
R1: Alarm state
Relay can be set to Open or Closed mode.
R1: Alarm tempo (s)
A time delay which must elapse prior to the triggering of the relay. Possible
values: 0 to 3600 s.
If Active function: Limit indicator
R1: Action
Relay can be set to Open or Closed mode.
R1: Linked
parameter
Used to select the parameter linked to output 1:
Sensor 1: Primary parameter
Sensor 1: Secondary parameter
Sensor 2: Primary parameter
Sensor 2: Secondary parameter
Set-up line
Functionality
R1: Type of limit
Used to define the limit triggering mode:
