UNLOADING THE TOOL
WARNING:
The battery should always be removed and the trigger lock-off
engaged whenever any adjustments are made or when tool is not in use.
1. Press the nail pusher latch and pull the magazine down.

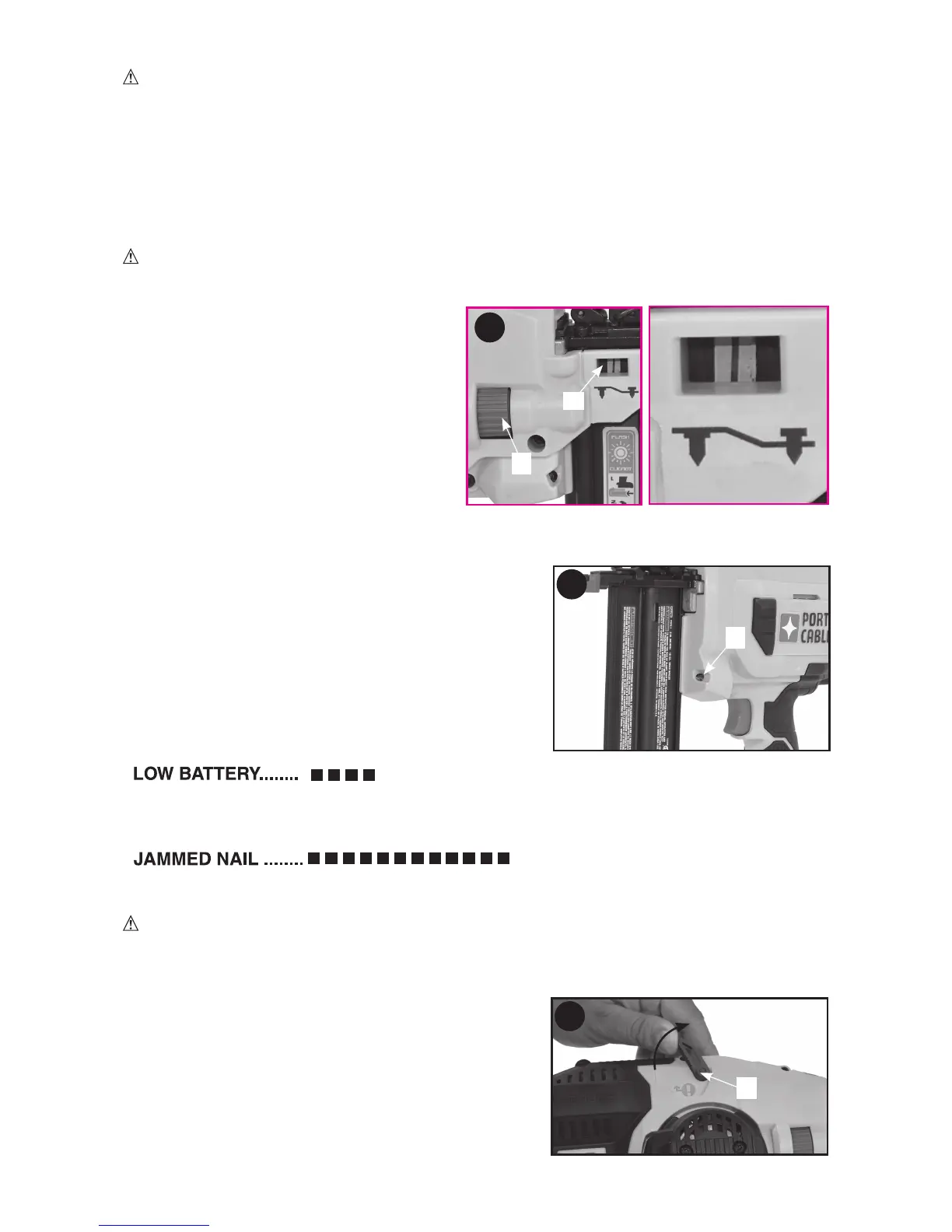

ADJUSTING DEPTH (FIG. 5)
The depth that the fastener is driven can be adjusted using the depth adjustment
WARNING:
To reduce risk of serious injury from accidental actuation when
attempting to adjust depth, ALWAYS:
adjustments.
Depth settings are on a sliding scale, the
right side being the shallowest and the
left side being the deepest.
1. To drive the nail shallower, rotate the
setting, towards the right on the depth
the
WORK LIGHTS (FIG. 6)
Work lights turn on upon depressing the contact trip.
NOTE: These work lights are for illuminating the
immediate work surface and are not intended to be
used as flashlights.
LOW BATTERY INDICATOR: The work lights will
flash and then turn off completely to indicate low
battery.
JAMMED NAIL INDICATOR: The work lights will flash continually if a nail becomes
jammed in the nose piece (see Clearing a jammed nail).
STALL RELEASE (FIG. 7)
WARNING:
If a jam occurs, the tool will disable itself and will require you to
reset it. To do so, follow instructions on clearing the jammed nail. Next remove battery
pack and then reinsert battery pack. The tool will now be operational.
If the nailer is used in rigorous application where all available energy in the motor is used
to drive a fastener, the tool may stall. The driver
stall indicator will flash. Rotate the stall release lever
as
shown in figure 7.
NOTE: The tool will disable itself and not
reset until the battery pack has been removed
and reinserted. If the driver blade does not
automatically return to the home position, proceed
to “clearing a jammed nail”. If the unit continues to stall please review the material
and fastener length to be sure that it is not too rigorous an application.
