Potter EVD-2 - Recommended Control Panel Wiring with Safe Detector Zone and 24 Hour Alarm Zone

13
EVD-2 • 5401042 • REV L • 03/05

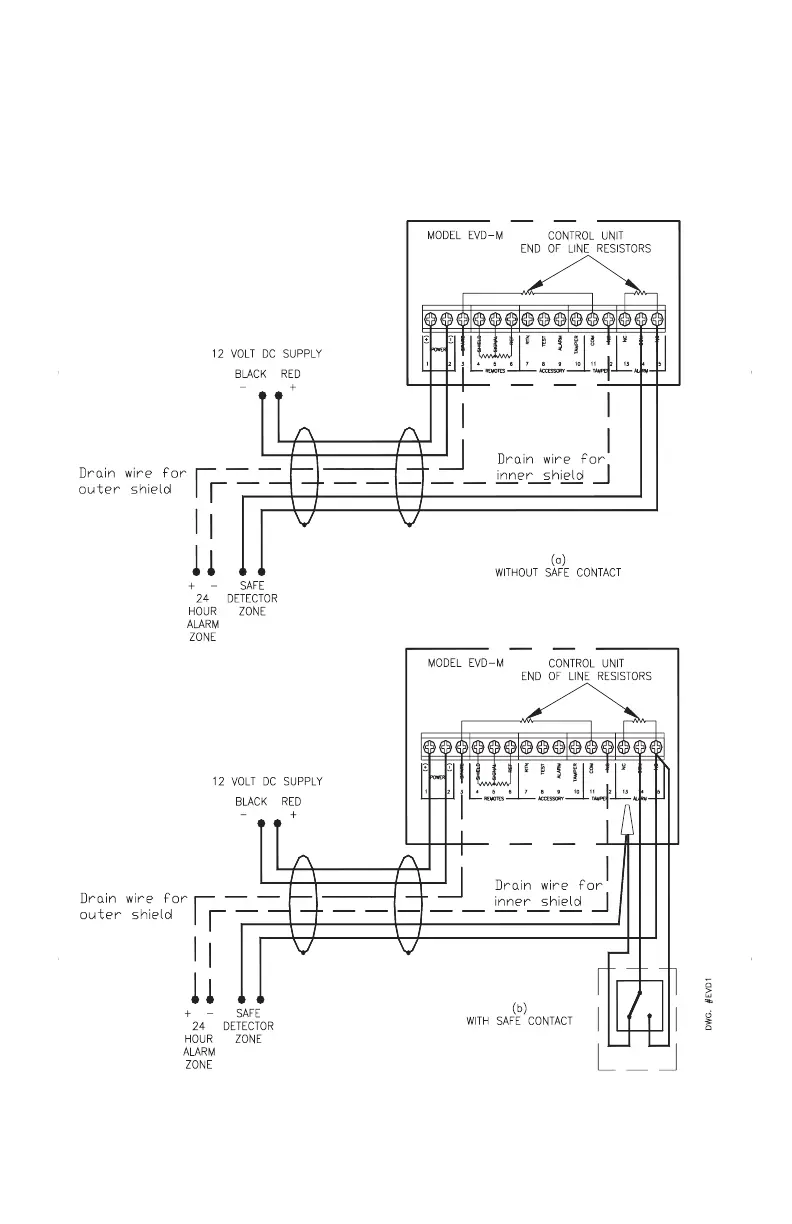

RECOMMENDED CONTROL PANEL WIRING WITH
SAFE DETECTOR ZONE AND 24 HOUR ALARM ZONE
(High security B cable and connections to 24 hr zone as shown are required
for UL safe compatible installations)
Figure 5b
