PFC-4064 KEYPAD PROGRAMMING • 8870080 • REV A • 12/17

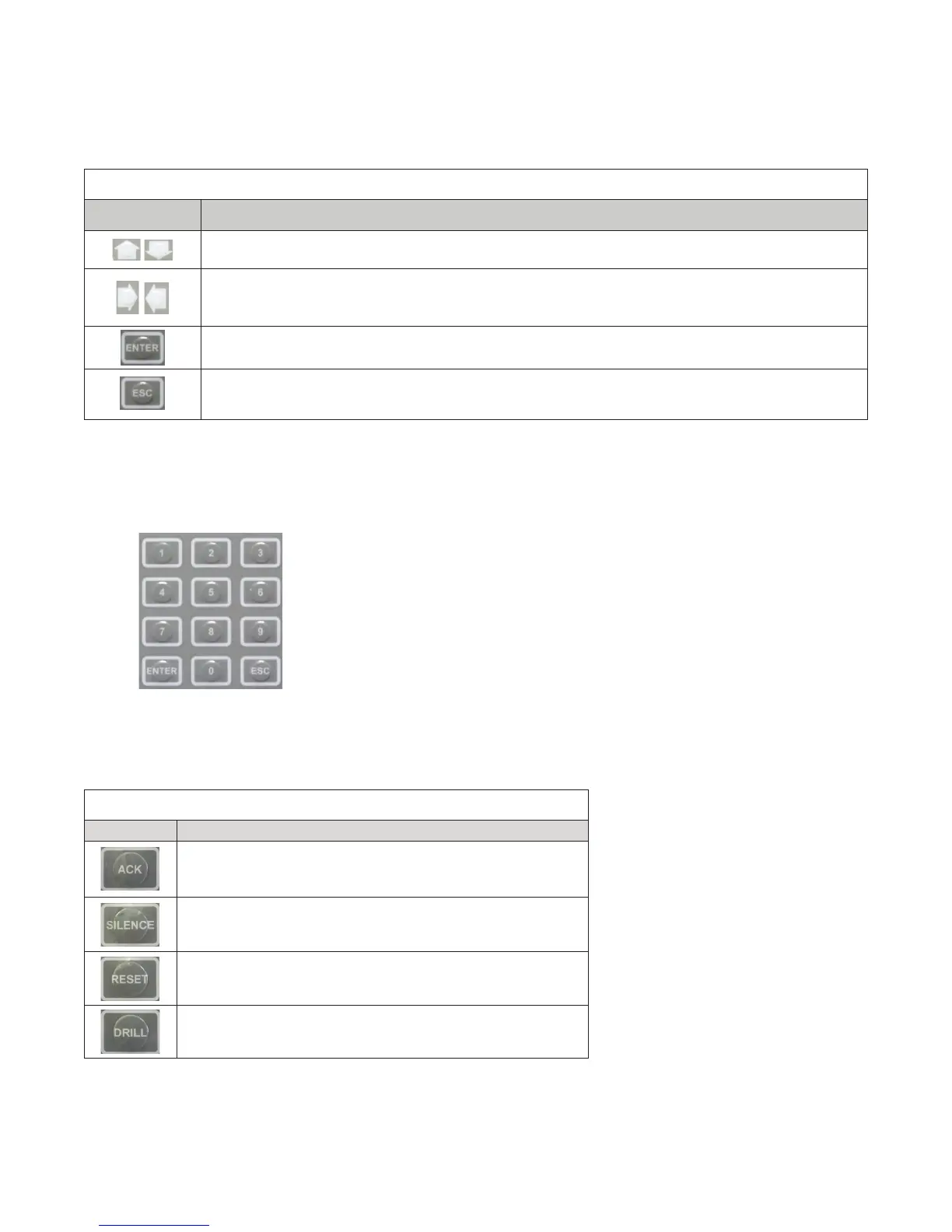

Menu Navigation Keys
The arrow keys allow you to scroll or move through the control panel menus. The Enter and Esc keys may also be used
to navigate through menus; they are located on the numeric keypad. The table shown below provides a summary of the
navigation keys.
Table 1: Menu Navigation Keys
Push button Description
Moves/scrolls up or down through menus, select numbers and letters where appropriate.
Scrolls to the left or right to display details, if any, of current menu item, select numbers and letters where
appropriate.
Note: When the LCD panel displays a LEFT and/or RIGHT arrow, this indicates more information may be viewed.
Displays the Main Menu or selects the current menu option.
Note: The blinking “” indicates the current menu option.
Returns to previous menu or backs up to previous screen.
Numeric Keypad
The numeric keypad allows you to enter user codes when required to access restricted functions. Alternatively, the numbers
may be used to quickly select menu options vs. using the arrow and Enter keys to select a function.
Figure 3. Control Panel Numeric Keypad
Function Pushbuttons
The four (4) function pushbuttons are used when system alarm / trouble conditions occur or to perform a re drill. Refer to
the table below for a brief summary of the pushbuttons:
Table 2: Control Panel Pushbuttons
Pushbutton Description
Press to acknowledge the currently displayed condition.
Press to silence all outputs programmed as silenceable and buzzer.
Press to reset panel to normal condition.
Press to begin a re drill.
5
