29

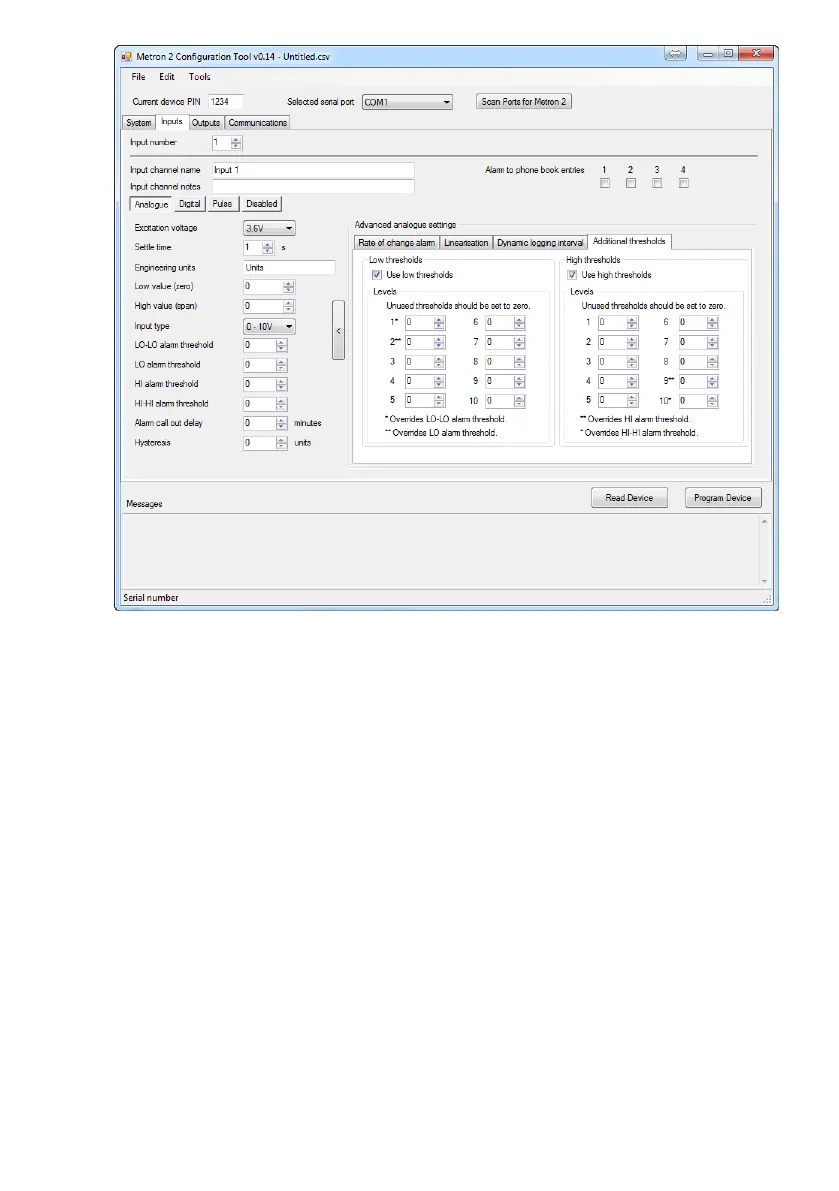

In total, there are 10 low thresholds (if the input goes from above a value to below a value) and 10 high
thresholds (if the input goes from below a value to above a value). Two of each of these can be programmed
without using the ‘Advanced analogue settings’ – these are the ‘LO-LO, LO, HI and HI-HI’ settings. If you would
like more than two of each kind of threshold, up to 10 can be set by clicking on the advanced analogue settings
button.
