Power Electronics VS65 Series Programming And Software Manual

VS65 SERIES MV SOFT STARTER
POWER ELECTRONICS
20

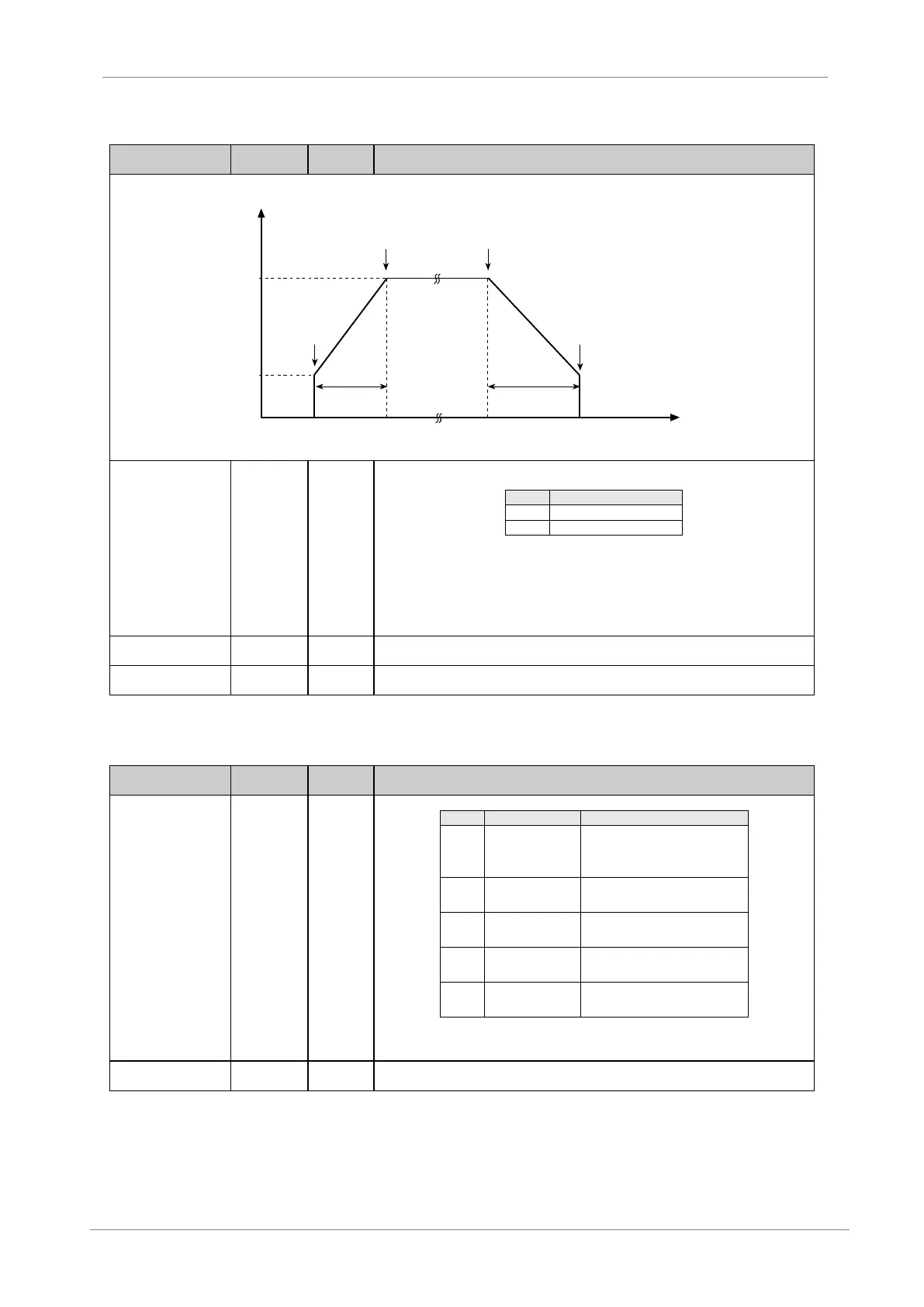

PARAMETERS DESCRIPTION
Screen &
Default Value
Name /
Description
Range
Function
3 DEC MD SEL=1
G5.3 / Motor
Deceleration
Algorithm
1 to 2
In applications where it is necessary to avoid water hammer effect, select this algorithm. In other
applications, the normal deceleration ramp is sufficient.
OPT.
DESCRIPTION
1
NORMAL CURVE.
2
HAMMER PREVENT.
When setting applications with water hammer problems during deceleration, select the hammer
algorithm. In other applications set normal deceleration algorithm.
When selecting the hammer algorithm for the deceleration, 2 parameters must be set to properly
adjust the stop.
For correct adjustment of the deceleration time in applications with hammer problems it may be
necessary to perform an interactive process by trial and error until the application is correctly
commissioned.
4 HAMR FACT=75%
G5.4 / Hammer
factor
1 to 99%
Set the time percentage for the hammer algorithm is to be active during deceleration
5 MINI TORQ=1%
G5.5 / Minimum
torque
1 to 99%
The minimum torque to be applied during deceleration (for Hammer Algorithm).
4.6. Group 6 – G6: INPUTS
Screen &
Default Value
Name /
Description
Range
Function
1 OPER MODE=1
G6.1 / Control
mode source
0 to 5
Set the control mode of the soft starter
OPT.
DESCRIPTION
FUNCTION
0
Disable
No control source enabled.
There is no way to Start/Stop-
Reset the VS65.
1
Local
Start/Stop-Reset enabled by
keypad.
2
Remote
Start/Stop-Reset enabled by
digital inputs.
3
Serial Comms
Start/Stop-Reset enabled by
serial comms.
4
Local Jog V/S
Not available for this soft starter
mode.
Note: In the case of making equipment reboot, the control mode will be LOCAL as default value.
From the Serial Comms option, user can take a look at the parameters but cannot make
STARTS, STOPS or RESETS.
2 LOCAL RESET=Y
G6.2 / Local
reset control
Y
N
Enable local reset via keypad.
End of
ramp up
G4.4 Initial
torque
Time
100
Vn
G5.2
Input Voltage
G4.6
Starting of
ramp down
DT0019D
G4.6 Acceleration time
G4.4 Initial Torque
End of ramp down
Starting of
ramp up
G5.2 Deceleration time
