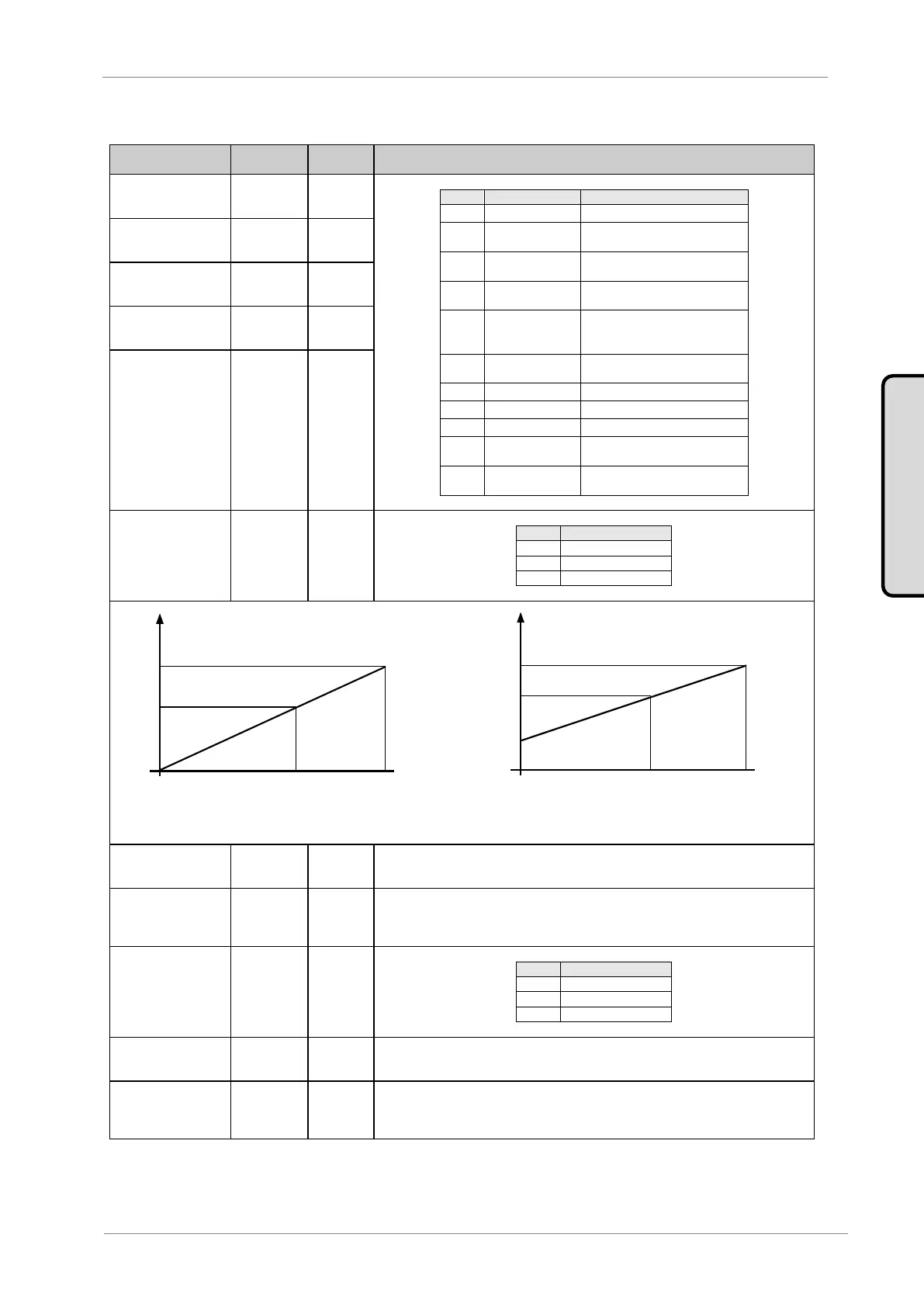

Power Electronics VS65 Series Programming And Software Manual

POWER ELECTRONICS
VS65 SERIES MV SOFT STARTER
PARAMETERS DESCRIPTION
21
E
N
G
L
I
S
H
Screen &
Default Value
Name /
Description
Range
Function
3 DINPUT1 SEL=4
G6.3 /
Multifunction 1
input
0 to 10
Select the task of the digital input once it is active (X).
OPT.
MODE
FUNCTION
0
Not active
The input left without effect.
1
Start
Start command given through
pushbutton.
2
Stop
Stop command given through
pushbutton.
3
Stop-Reset NC
Stop/Reset command given
through pushbutton.
4
Start-Stop
Start command when contact is
closed and stop command when
contact is opened.
5
Reset NC
The reset is done when the
contact is closed.
6
Slow Speed +
Not available.
7
Slow Speed -
Not available.
8
DC Brake
Not available.
9
Dual setting
Selection of the Second Setting
at G8.
10
External trip
Fault will be generated when the
contact is opened.
4 DINPUT2 SEL=0
G6.4 /
Multifunction 2
input
0 to 10
5 DINPUT3 SEL=0
G6.5 /
Multifunction 3
input
0 to 10
6 DINPUT4 SEL=0
G6.6 /
Multifunction 4
input
0 to 10
7 DINPUT5 SEL=0
G6.7 /
Multifunction 5
input
0 to 10
8 ANI1 FORMAT =1
G6.8 /
Analogue Input
1 Format
0 to 2
It configures the AI1 as voltage or current signal.
OPT.
DESCRIPTION
0
0-20mA
1
4-20mA
2
0-10V
9 AI1 RANGE 0_10
G6.9 /
Analogue Input
Range
0_0 to 0_999
Set according to the range of the connected transducer in absolute units.
10 AI1 UNITS=OFF
G6.10 /
Analogue Input
1 units
OFF,
Bar
ºC
Mtr
When OFF, is displayed in %.
11 ANI2 FORMAT =1
G6.11 /
Analogue Input
2 Format
0 to 2
It configures the AI2 as voltage or current signal.
OPT.
DESCRIPTION
0
0-20mA
1
4-20mA
2
0-10V
12 AI2 RANGE 0_10
G6.12 /
Analogue Input
2 Range
0_0 to 0_999
Set according to the range of the connected transducer.
13 AI2 UNITS=OFF
G6.13 /
Analogue Input
2 units
OFF,
Bar
ºC
Mtr
When OFF, is displayed in %.
DT0028C
bar
20mA
12mA
6 bar
60%
10 bar
100%
0 bar
0%
mA
Format 0-20mA
Rage 0-10bar
Sensor Output 0-20mA
bar
20mA
12mA
4mA
5 bar
50%
10 bar
100%
0 bar
0%
mA
Format 4-20mA
Range 0-10bar
Sensor Output 4-20mA
