VS65 SERIES MV SOFT STARTER
INTRODUCTION
11
1. INTRODUCTION
The VS65 Medium Voltage Soft starter has been designed to start, stop, protect and control medium
voltage AC motors. The VS65 integrates as standard SCR stacks, Snubber circuit, trigger circuit, line and
bypass vacuum contactors, fiber optics interconnections and control board, and a easy user interface, that
make the VS65 MV Soft starter the most complete, reliable and safety soft starter.
Additionally, its modular design permits to integrate additional features such as fuses, ground fault
monitoring relay, metal-clad systems, circuit breakers, etc.
STANDARD FEATURES
User friendly Alphanumeric Display
Multiple motor protection options: Input phases sequence, High Voltage, Input Low Voltage, Start current limit, Rotor locked,
Motor
overload (thermal model), Under load, Unbalanced phases , Shearpin current, Maximum number of starts/hour, water hammer
control, PTC input.
Complete soft starter protection: SCR overheat, Excessive start time (max 120s), Input phase loss.
Modbus field Bus standard and optional digital and analogue I/O
In Line and Bypass vacuum contactors
Multiple control push buttons and indicators
Multiple starting and stopping modes
Dual setting pre-configuration
Local and remote start and stop
OPTIONAL FEATURES
Overcurrent protection with fuses or Automatic Circuit Breaker
Ground fault monitoring relay
Power Stage and protections Metal-Clad system
IP54 Degree of protection
Communication protocols (Profibus DP, Devicenet, Ethernet, N2 Metasys, others)

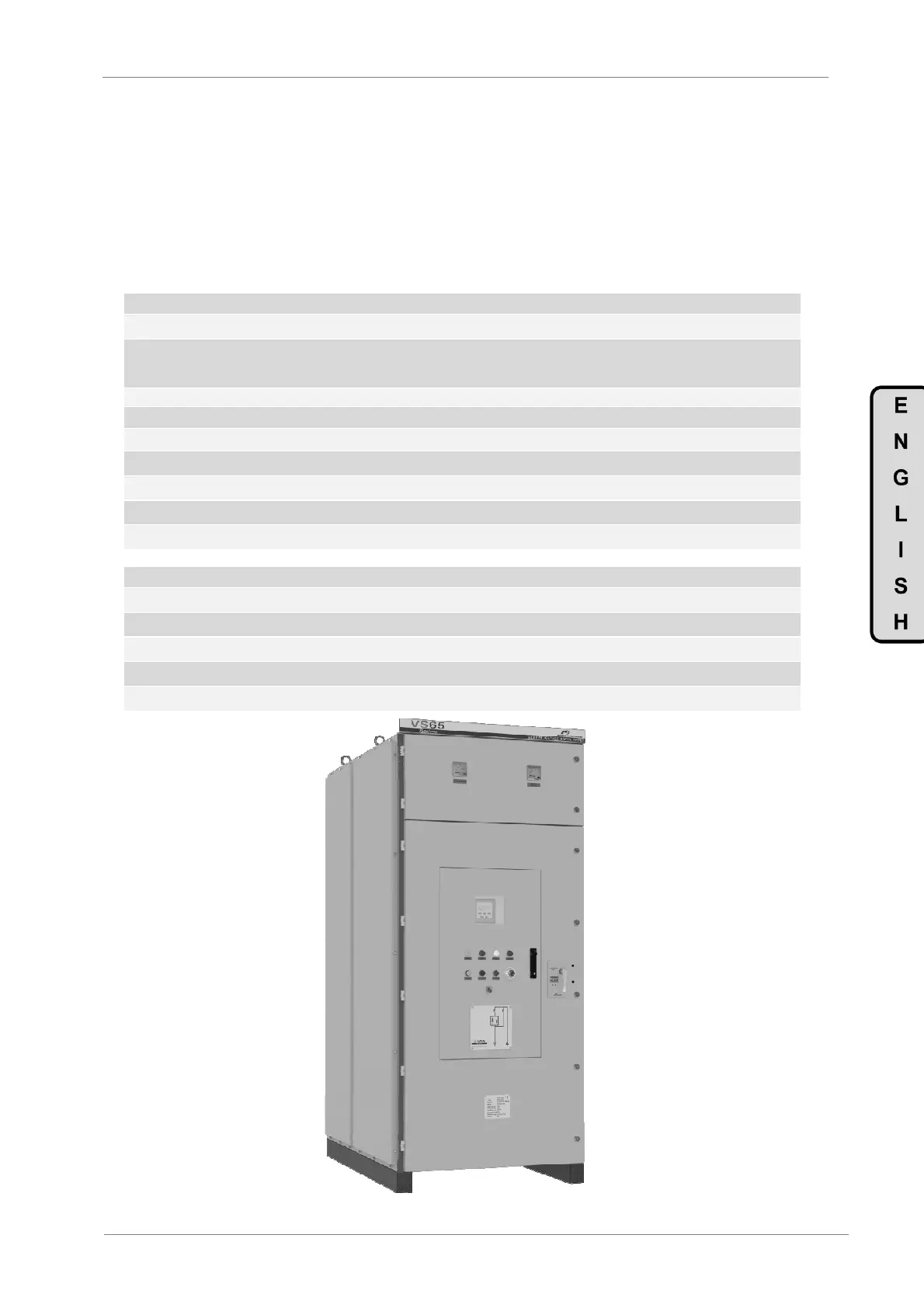

Figure 1.1:VS65 soft starter

Power Electronics VS65 Series Specifications

General

Brand	Power Electronics
Model	VS65 Series
Category	Controller
Language	English
