HANDLING, TRANSPORTATION AND INSTALLATION
5.4. Installation requirements
The following figure shows the safety clearance that the user must keep in the installation. It will be
necessary to keep a frontal, back and upper distance at least as the one shown in the figure. The
equipment can be placed one attached to another without leaving any distance between them.

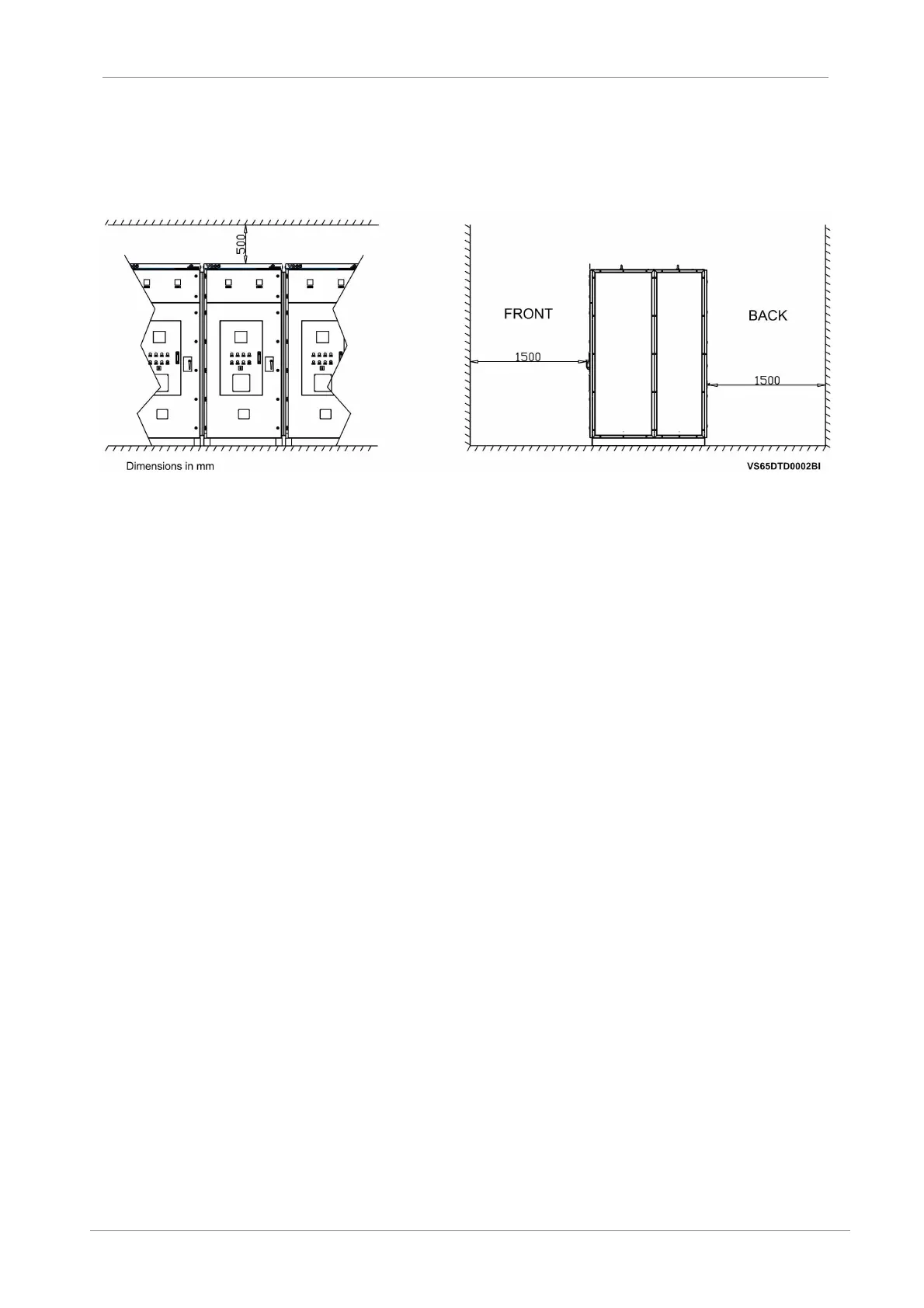

Figure 5.3 Soft starter safety clearances. Frontal and side view.
The foundations must ensure a plain, lavelled a solid surface to the soft starter’s weight. To ensure the
degree of protection for the cabinet use the original bottom plates delivered with the unit. With user-
defined cable entries, take care of the degree of protection and fire protection.
5.5. EMC Emissions/Immunity and noise levels
The VS65 soft starters are in compliance with EN 61000-6-2,-4; EN 61000-3-4 that defines EMC
emissions and immunity levels for control low voltage circuits.
