3.3.2. General Connection for Reactive Compensation (optional)

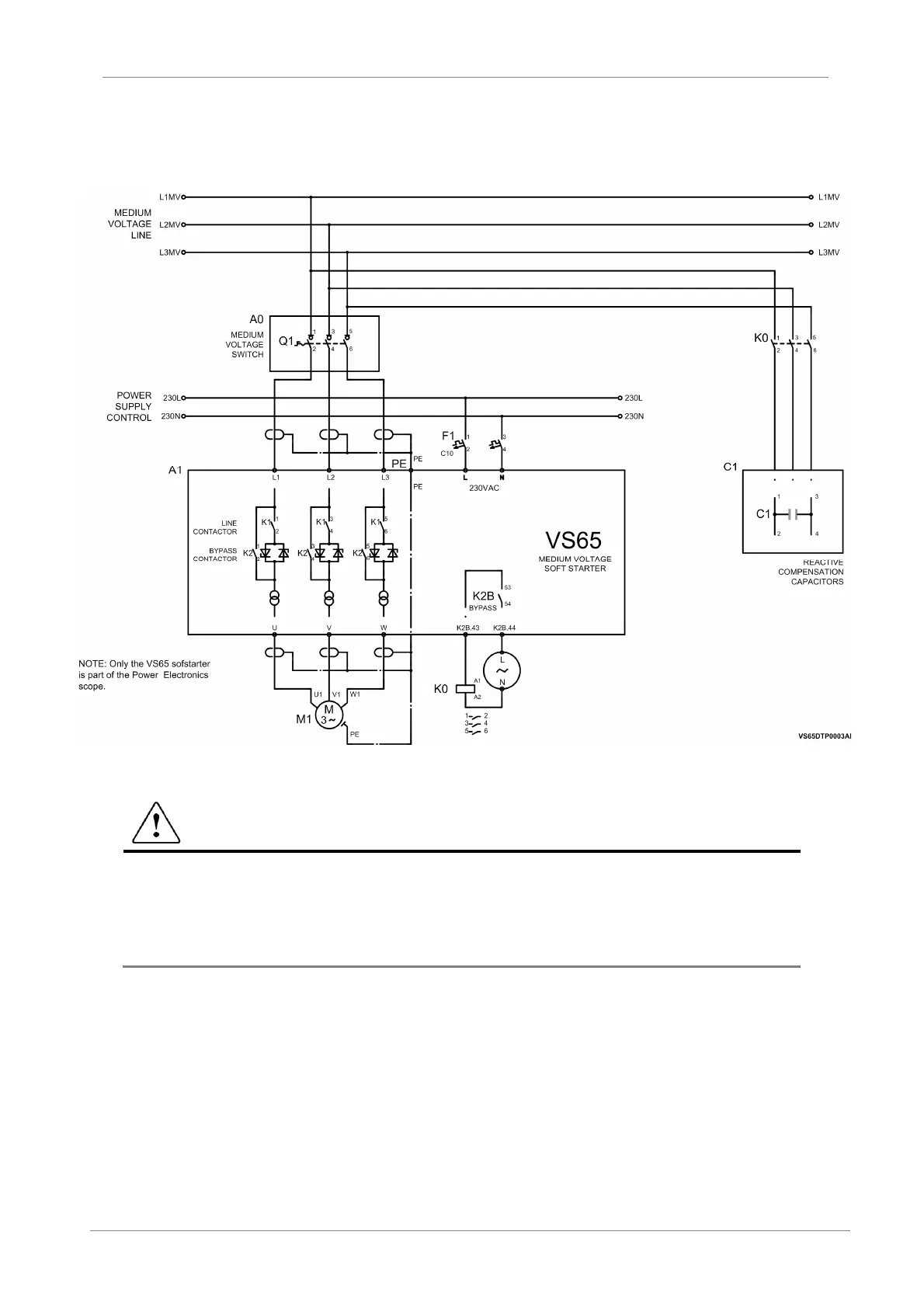

Figure 5.5 Reactive Connection
CAUTION
rs must be always connected to the VS65 input and never to the output. The capacitor
must be equipped with a contactor (K0) that must be controlled by the bypass relay of the VS65 SS.
It will be closed after the soft starting sequence has been completed. In the case of reactive
compensation capacitors connection, consult Power Electronics, the bypass relay of the VS65 SS
would be installed under request. For further information consult Software and Programming
manual.
Otherwise It could cause damage to the equipment and lead to injury to people.
