WIRING ACCESS AND CONNECTION

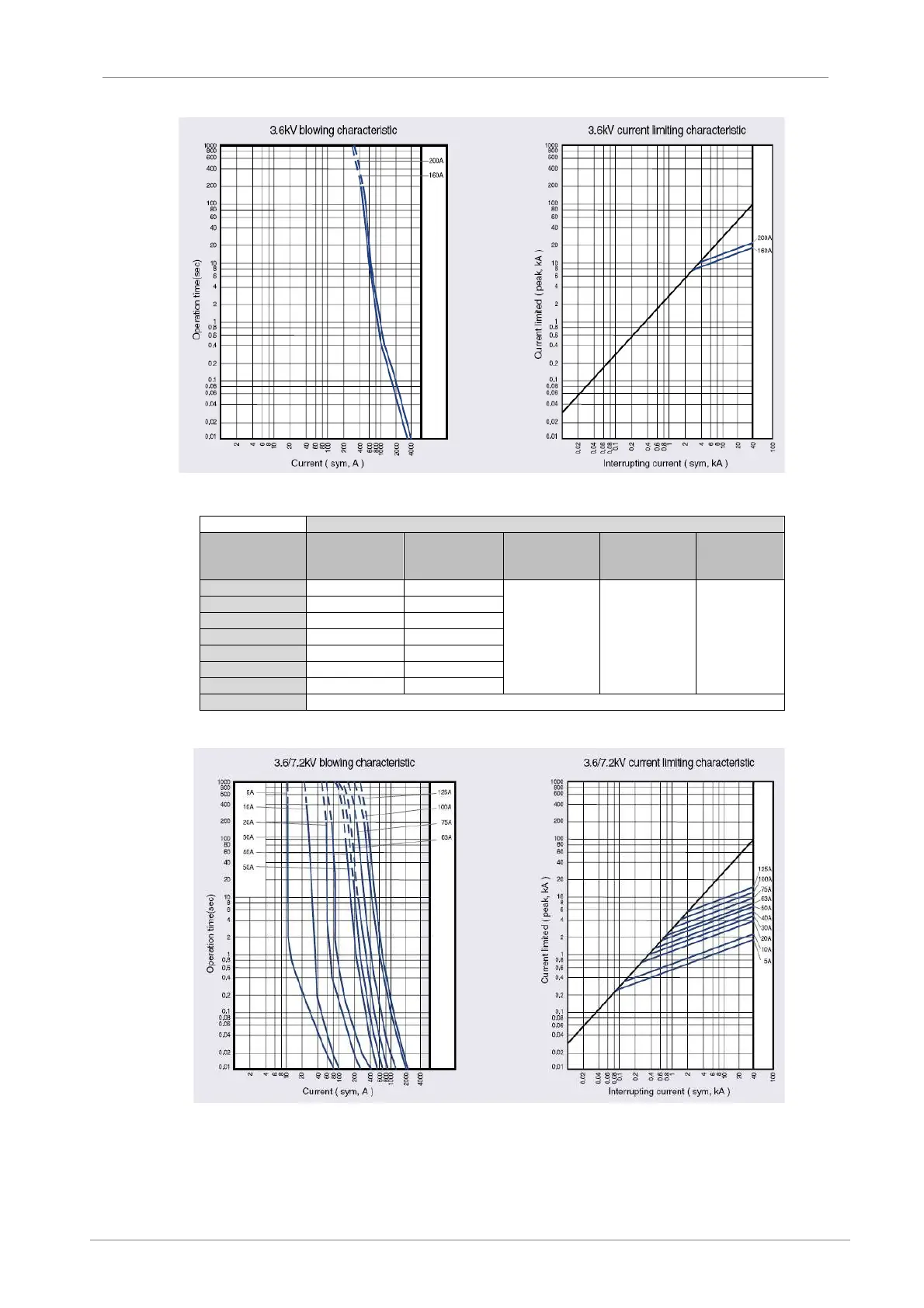

Figure 6.2 Fuse characteristics (160A, 200A) (Source: LS System Industries Co.)
4.16kV to 6.6kV
Fuse Rated
Current
Power Fuse Fuse holder Rated Voltage
Rated
Interrupting
Current
Lowest
Interrupting
Current
50A LFL-6G-50B LFH-6G-D1HB
7.2kV 40kA 4In
63A LFL-6G-60B LFH-6G-D1HB
75A LFL-6G-75B LFH-6G-D1HB
100A LFL-6G-100B LFH-6G-D1HB
125A LFL-6G-125B LFH-6G-D1HB
160A LFL-6G-160B LFH-6G-D2HB
200A LFL 6G 200B LFH-6G-D2HB
>200A Consult with Power Electronics.
Figure 6.3 Fuse characteristics In≤125A (Source: LS System Industries Co.)
