VS65 SERIES MV SOFT STARTER
CONFIGURATION, LOW VOLTAGE TRIAL AND COMMISSIONING
41

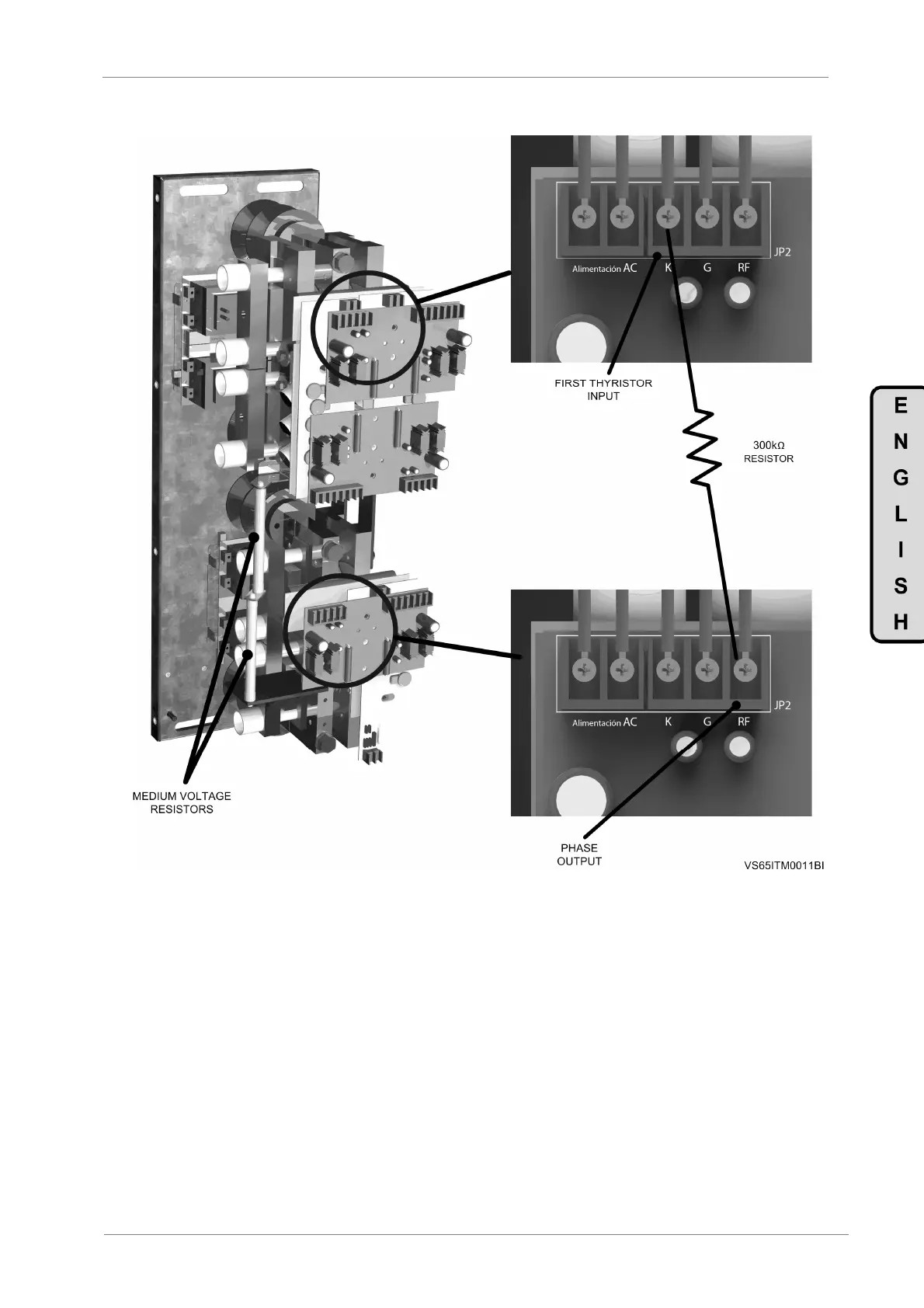

Figure 8.6 Connection of the 300kΩ resistor in the trigger boards per phase in the medium voltage
soft starters of 6000V or higher rated voltage
• Connect the soft starter input to 400VAC through the terminals L1, L2 and L3.
